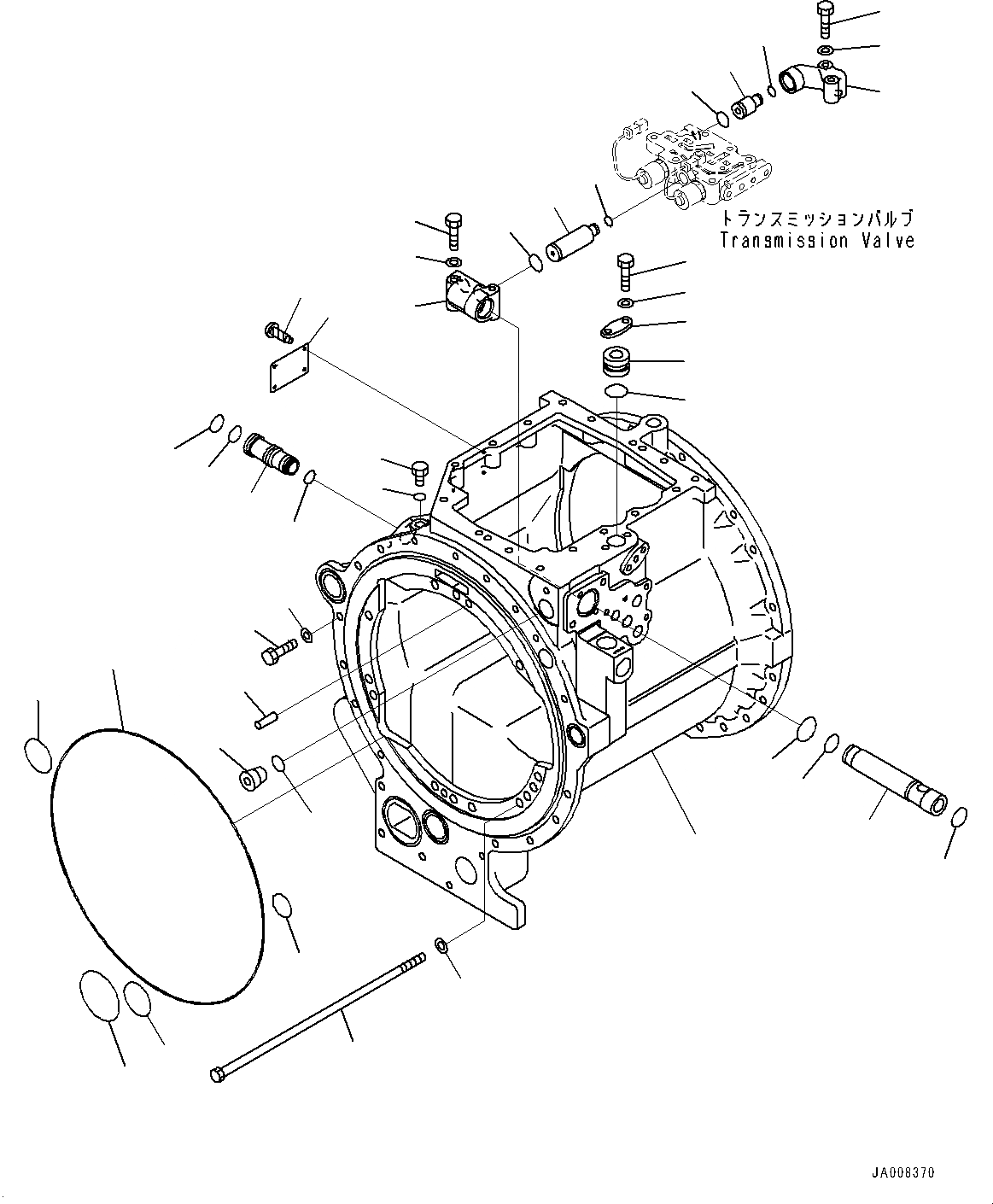

Запчасти Komatsu PC750LC-6K-01 СИЛОВАЯ ПЕРЕДАЧА, КОРПУС (№(7)-) СИСТЕМА ОХЛАЖДЕНИЯ

|$0

17M-22-50100

Power Train Assembly

SN: 35021-UP

1шт.

|$1

17M-15-51101

Transmission Assembly

SN: (103375-UP

1шт.

|$2

17M-15-51100

Transmission Assembly

SN: 35021-(103374

1шт.

|$3

17A-15-00311

Case Assembly

SN: (103375-UP

1шт.

1

Case

SN: (103375-UP

1шт.

2

723-40-82150

Plug

SN: (103375-UP

3шт.

3

07002-63334

O-ring

SN: (103375-UP

3шт.

4

07040-12012

Plug

SN: (103375-UP

1шт.

5

07002-62034

O-ring

SN: (103375-UP

1шт.

6

104-15-25330

Stopper

SN: (103375-UP

2шт.

7

07000-73025

O-ring

SN: (103375-UP

2шт.

8

17A-15-25870

Plate

SN: (103375-UP

1шт.

9

01010-81230

Bolt

SN: (103375-UP

2шт.

10

01643-31232

Washer

SN: (103375-UP

2шт.

11

09608-05080

Plate, Name (Limited Supply)

SN: 35021-UP

1шт.

12

04418-13060

Screw

SN: 35021-UP

4шт.

13

17A-15-25181

Sleeve

SN: 35021-UP

1шт.

14

07000-73030

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

15

07000-73028

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

16

17A-15-25150

Block

SN: 35021-UP

1шт.

17

01010-81075

Bolt

SN: 35021-UP

2шт.

18

01643-31032

Washer

SN: 35021-UP

2шт.

19

17M-15-45160

Sleeve

SN: 35021-UP

1шт.

20

07000-72014

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

21

07000-73025

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

22

17A-15-25140

Block

SN: 35021-UP

1шт.

23

01010-81060

Bolt

SN: 35021-UP

2шт.

24

01643-31032

Washer

SN: 35021-UP

2шт.

25

17M-15-45190

Sleeve

SN: 35021-UP

1шт.

26

07000-73022

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

27

07000-72014

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

28

17M-15-44150

Sleeve

SN: 35021-UP

1шт.

29

07000-73025

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

30

07000-73030

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

31

07000-73032

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

32

426-15-11260

Bolt

SN: 35021-UP

13шт.

33

145-14-11571

Washer

SN: 35021-UP

13шт.

34

04020-01434

Pin, Dowel

SN: 35021-UP

2шт.

35

01010-81235

Bolt

SN: 35021-UP

19шт.

36

01643-31232

Washer

SN: 35021-UP

19шт.

37

17M-15-45980

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

38

07000-72085

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

39

07000-72055

O-ring, (Kit : K03, K04)

SN: 35021-UP

2шт.

40

07000-73038

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.

41

07000-73045

O-ring, (Kit : K03, K04)

SN: 35021-UP

1шт.
