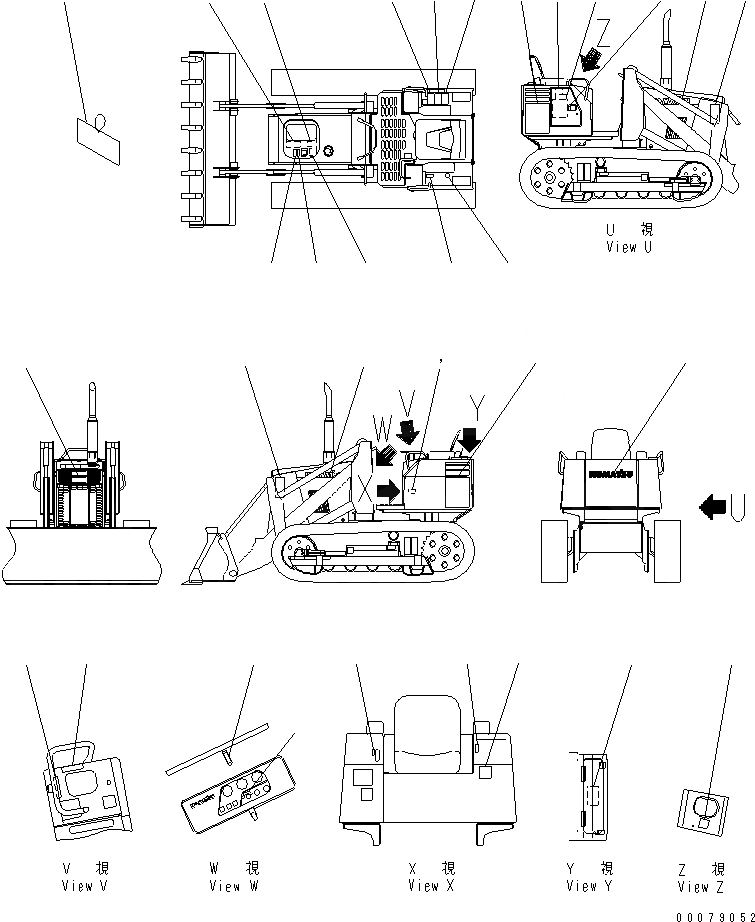

Запчасти Komatsu D21S-7 МАРКИРОВКА (КИТАЙ) МАРКИРОВКА
№
Артикул
Название
Примечание
Количество
1
09690-P0500
PLATE, MARK,KOMATSU
SN: 61132-UP
1шт.
2
103-98-31972
PLATE MARK,D21S
SN: 61132-UP
1шт.
3
103-98-31980
PLATE MARK,D21S
SN: 61132-UP
1шт.
4
113-98-31210
PLATE, OPERATING,DOZER LEVER
SN: 61132-UP
1шт.
5
114-98-44250
PLATE, OPERATING,LEVER LOCK
SN: 61132-UP
3шт.
6
103-98-31940
OIL CHART
SN: 61132-UP
1шт.
7
0
PLATE, NAME,(LIMITED SUPPLY)
SN: 61209-UP
1шт.
7
0
PLATE, NAME,(LIMITED SUPPLY)
SN: 61132-61208
1шт.
9
09663-09000
PLATE, SAFETY,SAFETY PIN
SN: 61132-UP
1шт.
10
09690-P0450
PLATE, MARK,KOMATSU
SN: 61132-UP
1шт.
11
09690-P0450
PLATE, MARK,KOMATSU
SN: 61132-UP
1шт.
12
114-98-44170
PLATE, OPERATING,STEERING LEVER
SN: 61132-UP
1шт.
13
114-98-44180
PLATE, OPERATING,FRONT AND REAR DRIVE LEVER
SN: 61132-UP
1шт.
14
09651-A0641
PLATE, SAFETY,READ MANUAL BEFORE OPERATING
SN: 61132-UP
1шт.
15
09963-A1640
TAG,DO NOT OPERATE
SN: 61132-UP
1шт.
16
09657-09011
PLATE, SAFETY,ADJUSTMENT OF TRACK TENSION
SN: 61132-UP
1шт.
17
09669-0000E
PLATE, CAUTION,DIESEL FUEL INLET
SN: 61132-UP
1шт.
18
09637-90263
PLATE, INSTRUCTION,AIR CLEANER (DOUBLE ELEMENT)
SN: 61132-UP
1шт.
19
114-98-31941
PLATE, CAUTION,HYDRAULIC FILTER
SN: 61132-UP
1шт.
20
09802-19000
PLATE, SAFETY,BEFORE MOVING IN REVERSE
SN: 61132-UP
1шт.
21
09653-A0481
PLATE, SAFETY,HOT OIL HAZARD, HYD. TANK CAP
SN: 61132-UP
2шт.
22
09654-B0641
PLATE, SAFETY,BEFORE LEAVING OPERATOR'S SEAT
SN: 61132-UP
1шт.
23
09667-A0481
PLATE, SAFETY,KEEP AWAY FAN AND BELT
SN: 61132-UP
1шт.
24
09806-B1201
PLATE, SAFETY,APPROACH CAUTION
SN: 61132-UP
2шт.
25
09808-A0881
PLATE, SAFETY,ELECTRIC SHOCK FROM CABLE
SN: 61132-UP
1шт.
26
09690-F0160
PLATE, MARK,KOMATSU
SN: 61132-UP
1шт.
27
09669-0000E
PLATE, CAUTION,DIESEL FUEL INLET
SN: 61132-UP
1шт.
28
09650-90103
PLATE, INSTRUCTION,RADIATOR
SN: 61132-UP
1шт.
29
09683-0000A
PLATE, OPERATING
SN: 61132-UP
1шт.
30
09653-A0481
PLATE, SAFETY,HOT OIL HAZARD, HYD. TANK CAP
SN: 61132-UP
1шт.
Выбрано товаров: 31
