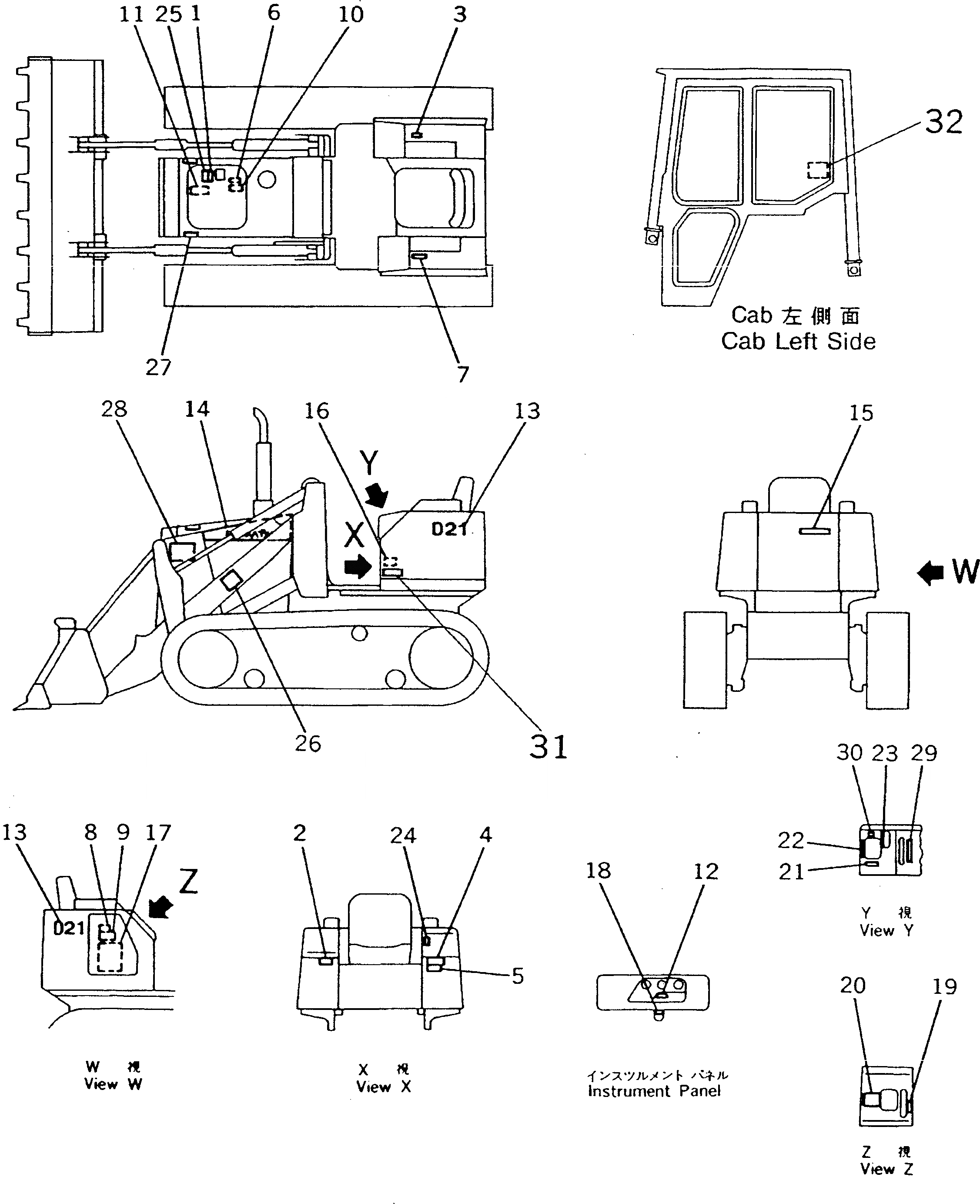

Запчасти Komatsu D21S-7 МАРКИРОВКА (СПЕЦ-Я TBG) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09667-02000

PLATE, SAFETY,ENGINE ROOM

SN: 61001-UP

1шт.

2

09173-02000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 61001-UP

1шт.

3

09651-02000

PLATE, SAFETY,BEFORE OPERATING

SN: 61001-UP

1шт.

4

09657-02011

PLATE, SAFETY,TRACK ADJUSTING

SN: 61001-UP

1шт.

5

114-98-44520

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 61001-UP

1шт.

6

09668-02000

PLATE, SAFETY,RADIATOR

SN: 61001-UP

1шт.

7

09652-21101

PLATE, CAUTION,FUEL TANK

SN: 61001-UP

1шт.

8

09653-02000

PLATE, SAFETY,HYDRAULIC TANK

SN: 61001-UP

1шт.

9

103-98-21551

PLATE, CAUTION,HYDRAULIC FILTER

SN: 61001-UP

1шт.

10

09650-21103

PLATE, INSTRUCTION,RADIATOR

SN: 61001-UP

1шт.

11

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

SN: 61001-UP

1шт.

12

09683-21060

PLATE, OPERATING,STARTING SWITCH

SN: 61001-UP

1шт.

13

103-98-31971

PLATE, MARK,D21S

SN: 61001-UP

2шт.

14

104-98-44420

PLATE, MARK,KOMATSU, L.H.

SN: 61001-UP

1шт.

14

104-98-44430

PLATE, MARK,KOMATSU, R.H.

SN: 61001-UP

1шт.

15

09690-C0224

PLATE, MARK,KOMATSU

SN: 61001-UP

1шт.

16

09601-20835

PLATE, NAME,(LIMITED SUPPLY)

SN: 61001-UP

1шт.

16

04418-13060

SCREW

SN: 61001-UP

4шт.

17

103-98-31531

CHART, OIL

SN: 61001-UP

1шт.

18

114-98-44250

PLATE, OPERATING,PARKING BRAKE LEVER LOCK

SN: 61001-UP

1шт.

19

114-98-44250

PLATE, OPERATING,WORK EQUIPMENT LEVER LOCK

SN: 61001-UP

1шт.

20

113-98-31210

PLATE, OPERATING,DOZER CONTROL LEVER

SN: 61001-UP

1шт.

21

114-98-44170

PLATE, OPERATING,STEERING CONTROL LEVER

SN: 61001-UP

1шт.

22

114-98-44180

PLATE, OPERATING,STEERING LEVER

SN: 61001-UP

1шт.

23

104-98-34220

PLATE, OPERATING,TRANSMISSION LEVER,(FOR F2-R2)

SN: 61001-UP

1шт.

24

114-98-44250

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 61001-UP

1шт.

25

09663-02000

PLATE, SAFETY,MAINTENANCE ENGINE

SN: 61001-UP

1шт.

26

113-98-31531

PLATE, SAFETY

SN: 61001-UP

1шт.

27

20T-98-22330

PLATE, SAFETY

SN: 61001-UP

2шт.

28

20T-98-22240

PLATE, SAFETY

SN: 61001-UP

2шт.

29

362-54-17320

PLATE, OPERATING

SN: 61001-UP

1шт.

30

09679-02002

PLATE, OPERATING

SN: 61001-UP

1шт.

31

09696-00106

PLATE,(FOR EC)

SN: 61001-UP

1шт.

32

09696-10088

PLATE,(FOR EC)

SN: 61001-UP

1шт.
