Артикул
Название
Примечание
Количество
|1
104-15-00082
TRANSMISSION ASS'Y
SN: 61056-UP
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 61001-61055
1шт.
|$$3
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2519.
-1шт.
|1
104-15-32032
TRANSMISSION ASS'Y
SN: 61056-UP
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 61001-61055
1шт.
|$$6
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517 TO 2519.
-1шт.
|1
104-15-00150

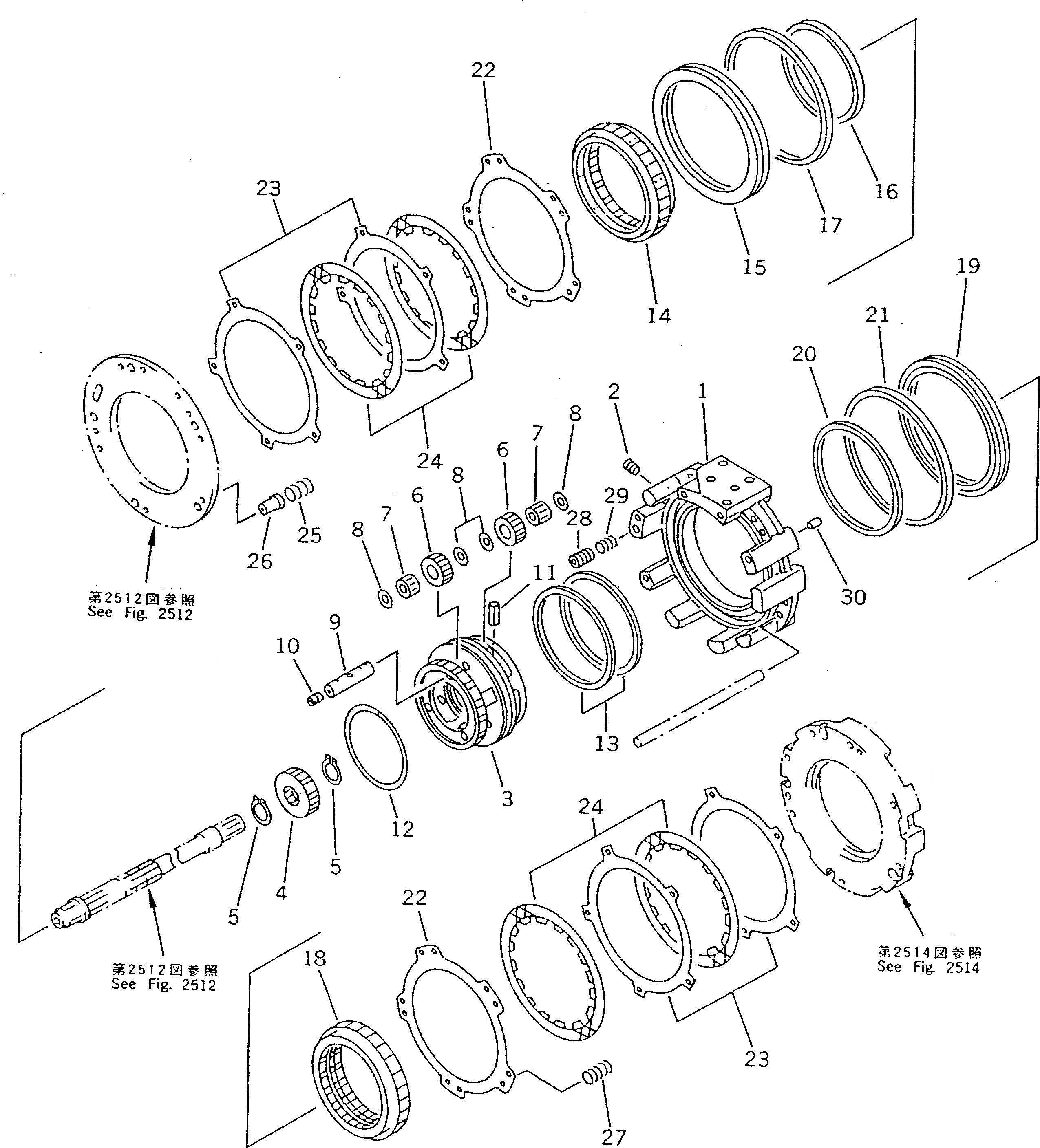

HOUSING ASS'Y,FORWARD AND 3RD
SN: 61001-UP
1шт.
1
0
HOUSING
SN: 61001-UP
1шт.
2
113-15-21320
PLUG
SN: 61001-UP
1шт.
3
104-15-22320
CARRIER
SN: 61001-UP
1шт.
4
103-15-22220
GEAR
SN: 61001-UP
1шт.
5
113-15-22950
RING,SNAP
SN: 61001-UP
2шт.
6
103-15-22420
GEAR
SN: 61001-UP
6шт.
7
103-15-29420
BEARING
SN: 61001-UP
6шт.
8
113-15-32560
WASHER
SN: 61001-UP
12шт.
9
103-15-22520
SHAFT
SN: 61001-UP
3шт.
10
113-15-21320
PLUG
SN: 61001-UP
3шт.
11
113-15-29560
PIN,SPRING
SN: 61001-UP
3шт.
14
103-15-22630
GEAR,RING
SN: 61001-UP
1шт.
15
103-15-22740
PISTON,FORWARD
SN: 61001-UP
1шт.
18
104-15-22640
GEAR,RING
SN: 61001-UP
1шт.
19
103-15-22750
PISTON,3RD
SN: 61001-UP
1шт.
20
103-15-29260
SEAL,RING (K1)
SN: 61001-UP
1шт.
24
113-15-42711
DISC
SN: 61001-UP
4шт.
25
104-15-32910
SPRING
SN: 61001-UP
5шт.
26
362-15-12810
GUIDE
SN: 61001-UP
5шт.
27
104-15-22920
SPRING
SN: 61001-UP
5шт.
29
195-15-15261
SPRING
SN: 61001-UP
1шт.
Выбрано товаров: 37
