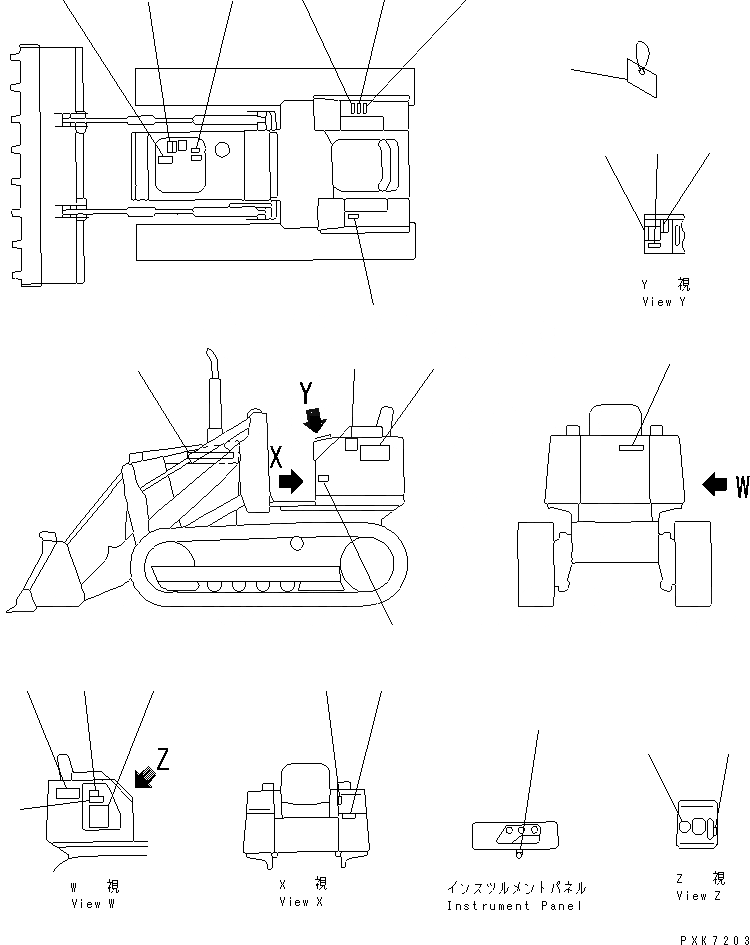

Запчасти Komatsu D21S-7 МАРКИРОВКА (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|1

134-98-11210

PLATE KIT

SN: 61131-UP

1шт.

1

0

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 61131-UP

1шт.

2

0

PLATE¤ SAFETY,RADIATOR

SN: 61131-UP

1шт.

3

0

PLATE¤ CAUTION,BEFORE AND AFTER OPERATION

SN: 61131-UP

1шт.

4

0

PLATE¤ SAFETY,BEFORE OPERATING

SN: 61131-UP

1шт.

5

0

PLATE¤ CAUTION,SAFETY COMFIRM OF REAR

SN: 61131-UP

1шт.

6

14X-98-11161

PLATE¤ SAFETY,ADJUSTING TRACK SHOE

SN: 61131-UP

1шт.

7

09652-01101

PLATE¤ CAUTION,FUEL TANK

SN: 61131-UP

1шт.

8

09637-01163

PLATE¤ INSTRUCTION,AIR CLEANER

SN: 61131-UP

1шт.

9

103-98-21251

PLATE¤ INSTRUCTION,HYDRAULIC TANK¤ FILTER

SN: 61131-UP

1шт.

10

103-98-31952

PLATE¤ DATA

SN: 61132-UP

1шт.

|10

103-98-31951

PLATE¤ DATA

SN: 61076-61131

1шт.

11

103-98-31971

PLATE¤ MARK,D21S

SN: 61001-UP

2шт.

12

104-98-44420

PLATE¤ MARK,KOMATSU¤ L.H.

SN: 61001-UP

1шт.

|12

104-98-44430

PLATE¤ MARK,KOMATSU¤ R.H.

SN: 61001-UP

1шт.

13

09690-C0224

PLATE¤ MARK,KOMATSU

SN: 61001-UP

1шт.

14

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 61001-UP

1шт.

|14

04418-13060

SCREW

SN: 61001-UP

4шт.

15

103-98-31133

CHART¤ OIL

SN: 61132-UP

1шт.

|15

103-98-31132

CHART¤ OIL

SN: 61076-61131

1шт.

16

114-98-44250

PLATE¤ OPERATING,PARKING BRAKE¤ LEVER LOCK

SN: 61001-UP

1шт.

17

114-98-44250

PLATE¤ OPERATING,WORK EQUIPMENT¤ LEVER LOCK

SN: 61001-UP

1шт.

18

113-98-31210

PLATE¤ OPERATING,DOZER LEVER

SN: 61001-UP

1шт.

19

114-98-44170

PLATE¤ OPERATING,STEERING LEVER

SN: 61001-UP

1шт.

20

114-98-44180

PLATE¤ OPERATING,STEERING LEVER

SN: 61001-UP

1шт.

21

104-98-34220

PLATE¤ OPERATING,TRANSMISSION LEVER¤(FOR F2-R2)

SN: 61001-UP

1шт.

22

114-98-44250

PLATE¤ OPERATING,TRANSMISSION LEVER LOCK

SN: 61001-UP

1шт.

23

145-98-11120

PLATE¤ SAFETY,MAINTENANCE ENGINE

SN: 61131-UP

1шт.

24

21X-98-21190

TAG¤ CAUTION,DO NOT OPERATE

SN: 61001-UP

1шт.
