Артикул
Название
Примечание
Количество
|1
104-15-00082
TRANSMISSION ASS'Y
SN: 61056-UP
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 61001-61055
1шт.
|$$3

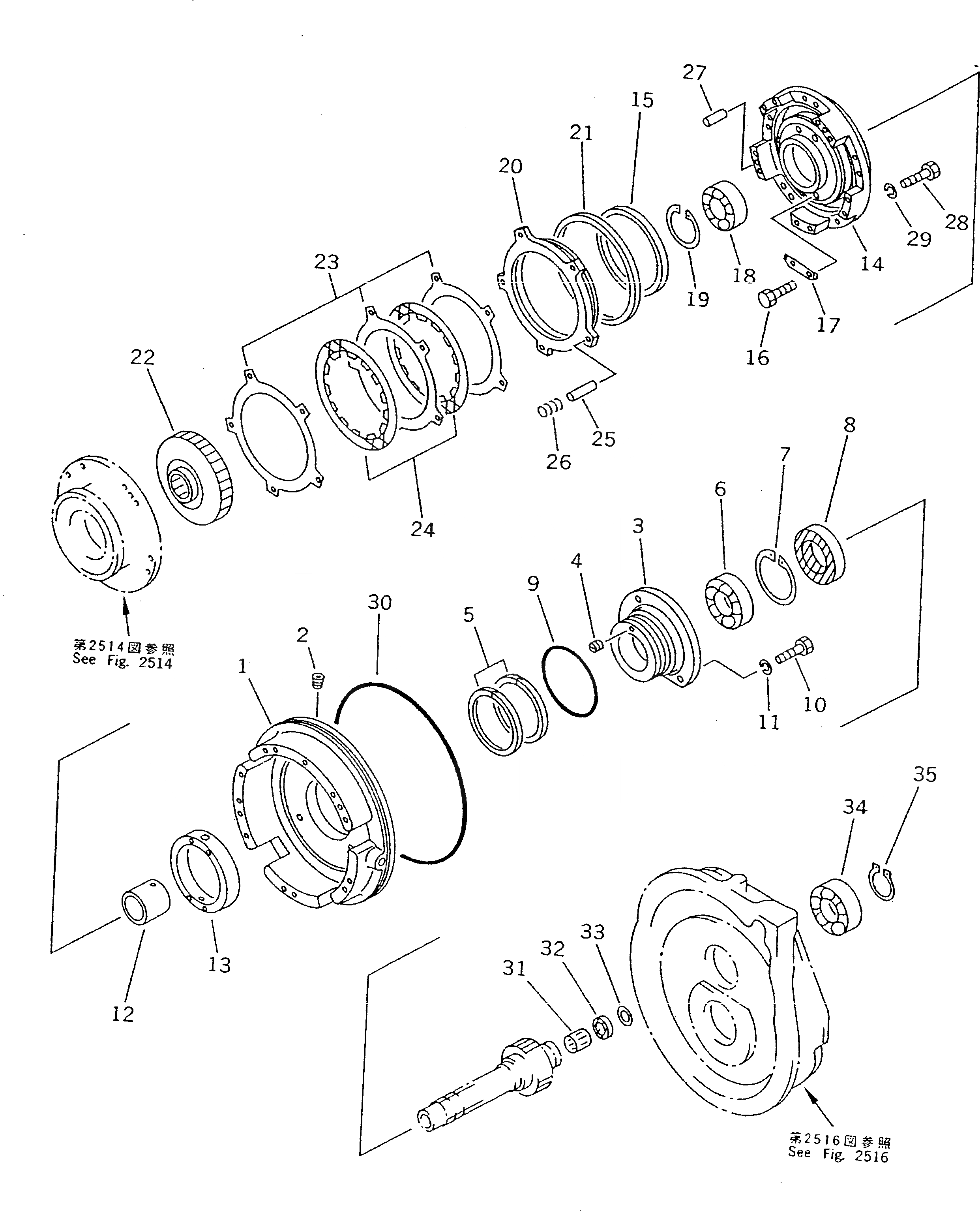

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2519.
-1шт.
|1
104-15-32032
TRANSMISSION ASS'Y
SN: 61056-UP
1шт.
|1
0
TRANSMISSION ASS'Y
SN: 61001-61055
1шт.
|$$6
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2511 TO 2515 AND 2517 TO 2519.
-1шт.
|1
104-15-00540
HOUSING ASS'Y,1ST
SN: 61001-UP
1шт.
1
0
HOUSING
SN: 61001-UP
1шт.
3
104-15-31210
CASE
SN: 61001-UP
1шт.
5
07018-20954
RING,SEAL
SN: 61001-UP
2шт.
8
07011-10058
SEAL,OIL (K1)
SN: 61001-UP
1шт.
12
104-15-32160
SPACER
SN: 61001-UP
1шт.
13
113-15-22390
COLLAR
SN: 61001-UP
1шт.
14
104-15-32340
HOUSING
SN: 61001-UP
1шт.
17
113-15-22370
LOCK
SN: 61001-UP
2шт.
20
113-15-22780
PISTON,1ST
SN: 61001-UP
1шт.
22
104-15-32270
HUB
SN: 61001-UP
1шт.
23
113-15-22750
PLATE
SN: 61001-UP
3шт.
24
103-15-32711
DISC
SN: 61001-UP
2шт.
25
104-15-21280
PIN
SN: 61001-UP
10шт.
26
104-15-22930
SPRING
SN: 61001-UP
5шт.
31
113-15-29440
BEARING,NEEDLE
SN: 61001-UP
1шт.
32
113-15-39120
SEAL,DUST (K1)
SN: 61001-UP
1шт.
33
113-15-29520
RING,SNAP
SN: 61001-UP
1шт.
34
06042-00208
BEARING
SN: 61001-UP
1шт.
35
103-15-29510
RING,SNAP
SN: 61001-UP
1шт.
Выбрано товаров: 42
