1

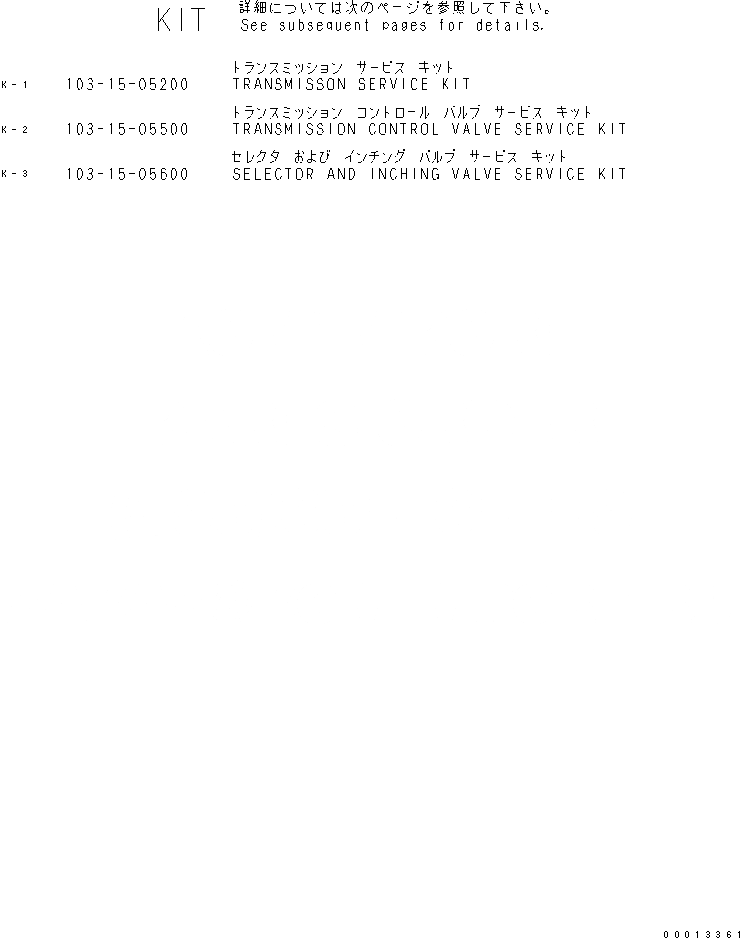

103-15-05200
SERVICE KIT,TRANSMISSION
SN: 63001-UP
1шт.
|1
07000-01008
O-RING,(F2320-53A0 -11 )
SN: 63001-UP
5шт.
|1
07000-02095
O-RING,(F2320-57A0 -12 )
SN: 63001-UP
1шт.
|1
07000-03022
O-RING,(F2320-61A0 -5 )
SN: 63001-UP
2шт.
|1
07000-05220
O-RING,(F2320-01A0 -8 )
SN: 63001-UP
1шт.
|1
07000-05240
O-RING,(F2320-51A0 -9 )
SN: 63001-UP
1шт.
|1
07000-05240
O-RING,(F2320-53A0 -4 )
SN: 63001-UP
1шт.
|1
07000-72010
O-RING,(F2320-57A0 -22 )
SN: 63001-UP
5шт.
|1
07000-72012
O-RING,(F2320-57A0 -21 )
SN: 63001-UP
5шт.
|1
07000-73022
O-RING,(F2320-58A0 -4 )
SN: 63001-UP
1шт.
|1
07000-73025
O-RING,(F2320-01A0 -9 )
SN: 63001-UP
1шт.
|1
07000-73028
O-RING,(F2320-57A0 -19 )
SN: 63001-UP
2шт.
|1
07002-02434
O-RING,(F2320-57A0 -7 )
SN: 63001-UP
1шт.
|1
07012-10065
SEAL,(F2320-53A0 -15 )
SN: 63001-UP
1шт.
|1
103-15-28131
GASKET,(F2320-59A2 -2 )
SN: 63001-UP
1шт.
|1
103-15-28131
GASKET,(F2320-61A0 -2 )
SN: 63001-UP
1шт.
|1
103-15-31121
GASKET,(F2320-01A0 -2 )
SN: 63001-UP
1шт.
|1
113-15-21721
GASKET,(F2320-57A0 -11 )
SN: 63001-UP
1шт.
|1
113-15-00540
SHIM KIT,(F2321-51A0 -9 )
SN: 63001-UP
2шт.
|1
0
SHIM¤ 1.0MM,(F2321-51A0 -9- )
SN: 63001-UP
2шт.
|1
0
SHIM¤ 0.2MM,(F2321-51A0 -9- )
SN: 63001-UP
8шт.
|1
0
SHIM¤ 0.3MM,(F2321-51A0 -9- )
SN: 63001-UP
4шт.
|1
113-15-24860
GASKET,(F2320-63A0 -14 )
SN: 63001-UP
1шт.
|1
22W-75-15440
RING,(F2320-52A0 -7 )
SN: 63001-UP
1шт.
|1
232-15-19270
RING,(F2320-51A0 -4 )
SN: 63001-UP
1шт.
|1
232-15-19270
RING,(F2320-52A0 -10 )
SN: 63001-UP
1шт.
|1
232-15-19270
RING,(F2320-53A0 -6 )
SN: 63001-UP
1шт.
|1
362-15-19220
RING,(F2320-51A0 -5 )
SN: 63001-UP
1шт.
|1
362-15-19220
RING,(F2320-52A0 -8 )
SN: 63001-UP
1шт.
|1
362-15-19220
RING,(F2320-52A0 -11 )
SN: 63001-UP
1шт.
|1
362-15-19220
RING,(F2320-53A0 -7 )
SN: 63001-UP
1шт.
2
103-15-05500
SERVICE KIT,TRANSMISSION CONTROL VALVE
SN: 63001-UP
1шт.
|2
07000-72014
O-RING,(F2320-59A0 -28 )
SN: 63001-UP
2шт.
|2
07000-72020
O-RING,(F2320-59A0 -22 )
SN: 63001-UP
2шт.
|2
07000-73025
O-RING,(F2320-59A0 -24 )
SN: 63001-UP
2шт.
|2
103-15-35140
GASKET,(F2320-59A0 -4 )
SN: 63001-UP
1шт.
|2
103-15-35270
SHIM¤ 0.5MM,(F2320-59A0 -20 )
SN: 63001-UP
3шт.
|2
103-15-35910
GASKET,(F2320-59A0 -26 )
SN: 63001-UP
1шт.
|2
113-15-25260
SHIM¤ 0.5MM,(F2320-59A0 -19 )
SN: 63001-UP
3шт.
|2
113-15-25270
SHIM¤ 0.2MM,(F2320-59A0 -19- )
SN: 63001-UP
2шт.
|2
124-15-55390
STOPPER,(F2320-59A0 -25 )
SN: 63001-UP
1шт.
3
103-15-05600
SERVICE KIT,SELECTOR AND INCHING VALVE
SN: 63001-UP
1шт.
|3
07000-72021
O-RING,(F2320-60A0 -36 )
SN: 63001-UP
1шт.
|3
07002-01223
O-RING,(F2320-60A0 -12 )
SN: 63001-UP
2шт.
|3
07002-01223
O-RING,(F2320-60A0 -19 )
SN: 63001-UP
1шт.
|3
07002-01823
O-RING,(F2320-60A0 -7 )
SN: 63001-UP
2шт.
|3
07002-03034
O-RING,(F2320-60A0 -34 )
SN: 63001-UP
1шт.
|3
103-15-45920
GASKET,(F2320-60A0 -41 )
SN: 63001-UP
1шт.
|3
104-15-36460
SHIM¤ 0.5MM,(F2320-60A0 -40 )
SN: 63001-UP
4шт.
|3
104-15-36470
SHIM¤ 0.2MM,(F2320-60A0 -40- )
SN: 63001-UP
6шт.
|3
104-15-36480
SHIM¤ 0.5MM,(F2320-60A0 -29 )
SN: 63001-UP
6шт.
|3
104-15-36490
SHIM¤ 0.2MM,(F2320-60A0 -29- )
SN: 63001-UP
4шт.
|3
113-15-29110
SEAL,(F2320-60A0 -8 )
SN: 63001-UP
1шт.
|3
124-15-49110
SEAL,(F2320-60A0 -9 )
SN: 63001-UP
1шт.
