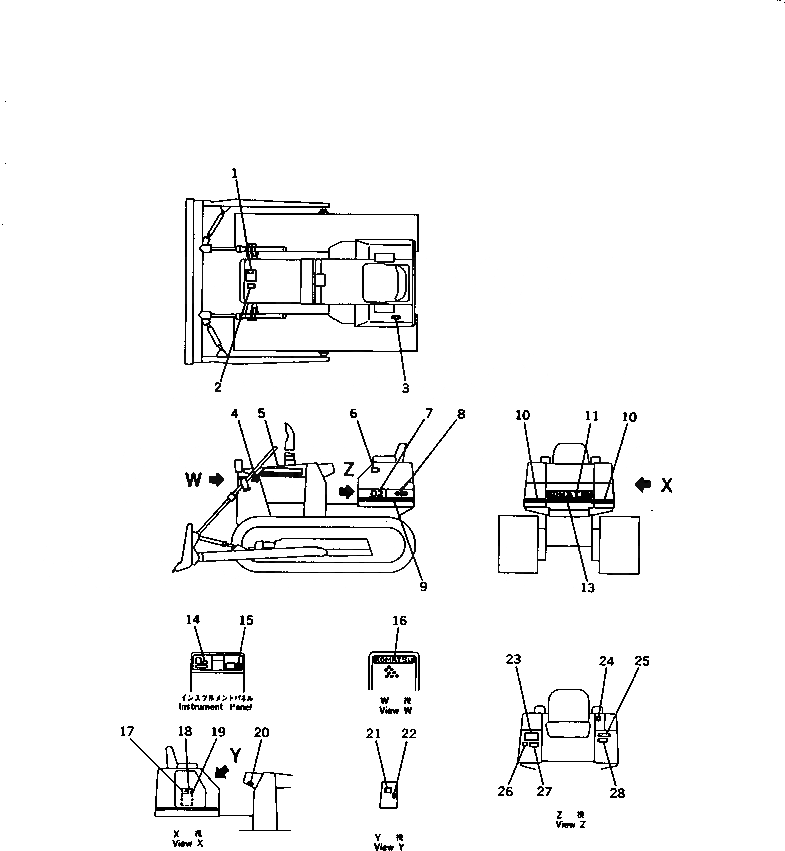

Запчасти Komatsu D21PL-6 МАРКИРОВКА (КИТАЙ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-09000

PLATE, SAFETY,RADIATOR WARNING

SN: 60001-UP

1шт.

2

09650-90103

PLATE, INSTRUCTION,RADIATOR

SN: 60001-UP

1шт.

3

09652-90111

PLATE, CAUTION,FUEL TANK

SN: 60001-UP

1шт.

4

09667-09000

PLATE, SAFETY,ENGINE ROOM

SN: 60001-UP

2шт.

5

103-98-31123

PLATE, MARK,WHITE LINE, L.H.

SN: 60784-UP

1шт.

5

103-98-31122

PLATE, MARK,WHITE LINE, L.H.

SN: 60058-60783

1шт.

5

103-98-31121

PLATE, MARK,KOMATSU, L.H.

SN: 60001-60057

1шт.

5

103-98-31222

PLATE, MARK,WHITE LINE, R.H.

SN: 60784-UP

1шт.

5

103-98-31221

PLATE, MARK,WHITE LINE, R.H.

SN: 60058-60783

1шт.

5

103-98-31220

PLATE, MARK,KOMATSU, R.H.

SN: 60001-60057

1шт.

6

09601-90835

PLATE, NAME,(LIMITED SUPPLY)

SN: 60001-UP

1шт.

6

04418-13060

SCREW

SN: 60001-UP

4шт.

7

10G-B70-9110

PLATE, MARK,D21PL

SN: 60001-UP

2шт.

8

09694-50180

PLATE, MARK,SYMBOL

SN: 60001-UP

2шт.

9

103-98-31181

PLATE, MARK,WHITE LINE

SN: 60784-UP

2шт.

9

103-98-31180

PLATE, MARK,WHITE LINE

SN: 60001-60783

2шт.

10

103-98-31171

PLATE, MARK,WHITE LINE

SN: 60784-UP

2шт.

10

103-98-31170

PLATE, MARK,WHITE LINE

SN: 60001-60783

2шт.

11

09690-50560

PLATE, MARK,KOMATSU

SN: 60001-UP

1шт.

12

21K-00-22170

PLATE, MARK,SYMBOL

SN: 60001-UP

1шт.

13

103-98-31162

PLATE, MARK,WHITE LINE

SN: 60784-UP

1шт.

13

103-98-31161

PLATE, MARK,WHITE LINE

SN: 60001-60783

1шт.

14

09651-09000

PLATE, SAFETY,BEFORE OPERATING

SN: 60001-UP

1шт.

15

09683-90060

PLATE, OPERATING,STARTING SWITCH

SN: 60001-UP

1шт.

16

09690-50450

PLATE, MARK,KOMATSU

SN: 60001-UP

1шт.

17

09653-09000

PLATE, SAFETY,HYDRAULIC TANK

SN: 60001-UP

1шт.

18

114-98-31941

PLATE, CAUTION,HYDRAULIC FILTER

SN: 60001-UP

1шт.

19

10G-98-21940

CHART, OIL

SN: 60001-UP

1шт.

20

09685-00003

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 60001-UP

1шт.

21

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 60001-UP

1шт.

22

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 60001-UP

1шт.

23

09637-90261

PLATE, INSTRUCTION,AIR CLEANER

SN: 60851-UP

1шт.

23

09637-90761

PLATE, INSTRUCTION,AIR CLEANER

SN: 60001-60850

1шт.

24

09685-00002

PLATE, OPERATING,TRANSMISSION LOCK LEVER

SN: 60001-UP

1шт.

25

09657-09010

PLATE, SAFETY,TRACK ADJUSTING

SN: 60001-UP

1шт.

26

09173-09000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 60001-UP

1шт.

27

09654-09000

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 60001-UP

1шт.

28

09649-09001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 60001-UP

1шт.
