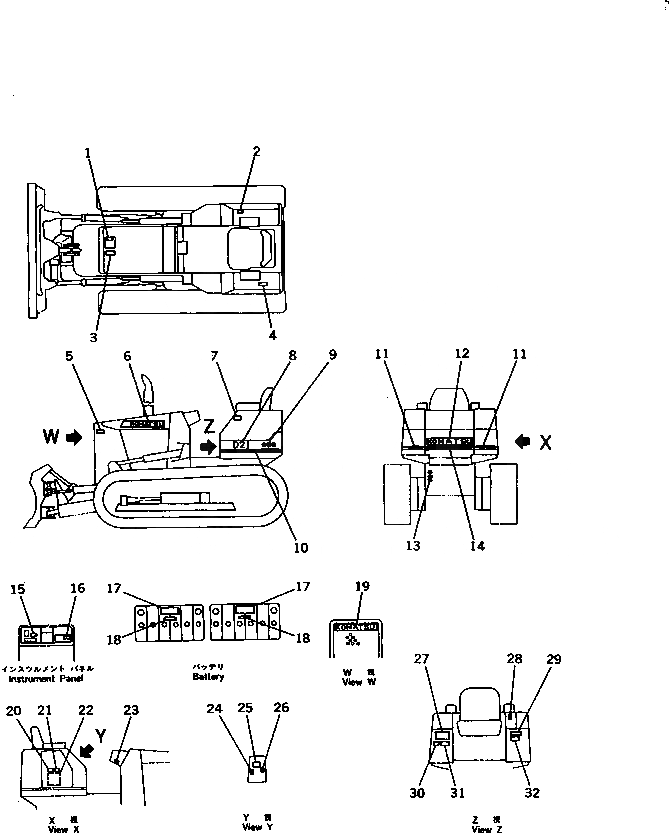

Запчасти Komatsu D21P-6B МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-03000

PLATE, SAFETY,RADIATOR WARNING

SN: 60001-UP

1шт.

2

09675-00001

PLATE, OPERATING,3-POINT HITCH CONTROL LEVER

SN: 60001-UP

1шт.

3

09650-30103

PLATE, INSTRUCTION,RADIATOR

SN: 60001-UP

1шт.

4

09652-30101

PLATE, CAUTION,FUEL TANK

SN: 60001-UP

1шт.

5

09667-03000

PLATE, SAFETY,ENGINE ROOM

SN: 60001-UP

2шт.

6

103-98-31122

PLATE, MARK,WHITE LINE, L.H.

SN: 60547-UP

1шт.

6

103-98-31121

PLATE, MARK,KOMATSU, L.H.

SN: 60001-60546

1шт.

6

103-98-31221

PLATE, MARK,WHITE LINE, R.H.

SN: 60547-UP

1шт.

6

103-98-31220

PLATE, MARK,KOMATSU, R.H.

SN: 60001-60546

1шт.

7

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 60001-UP

1шт.

7

04418-13060

SCREW

SN: 60001-UP

4шт.

8

10G-98-21110

PLATE, MARK,D21P

SN: 60001-UP

2шт.

9

09694-50180

PLATE, MARK,SYMBOL

SN: 60001-UP

2шт.

10

103-98-31180

PLATE, MARK,WHITE LINE

SN: 60001-UP

2шт.

11

103-98-31170

PLATE, MARK,WHITE LINE

SN: 60001-UP

2шт.

12

09690-50560

PLATE, MARK,KOMATSU

SN: 60001-UP

1шт.

13

21K-00-22170

PLATE, MARK,SYMBOL

SN: 60001-UP

1шт.

14

103-98-31161

PLATE, MARK,WHITE LINE

SN: 60001-UP

1шт.

15

09651-03000

PLATE, SAFETY,BEFORE OPERATING

SN: 60001-UP

1шт.

16

09683-30060

PLATE, OPERATING,STARTING SWITCH

SN: 60001-UP

1шт.

17

09664-30081

PLATE, SAFETY,BATTERY

SN: 60001-UP

2шт.

18

09664-30068

PLATE, SAFETY,BATTERY, DISTRIBUTOR

SN: 60001-UP

2шт.

19

09690-50450

PLATE, MARK,KOMATSU

SN: 60001-UP

1шт.

20

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 60001-UP

1шт.

21

103-98-21350

PLATE, CAUTION,HYDRAULIC FILTER

SN: 60001-UP

1шт.

22

104-98-32320

CHART, OIL

SN: 60001-UP

1шт.

23

09685-00003

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 60001-UP

1шт.

24

114-98-21150

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 60001-UP

1шт.

25

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 60001-UP

1шт.

26

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 60001-UP

1шт.

27

09637-30661

PLATE, INSTRUCTION,AIR CLEANER

SN: 60001-UP

1шт.

28

09685-00002

PLATE, OPERATING,TRANSMISSION CONTROL LEVER LOC

SN: 60001-UP

1шт.

29

09657-03010

PLATE, SAFETY,TRACK ADJUSTING

SN: 60001-UP

1шт.

30

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 60001-UP

1шт.

31

09654-03000

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 60001-UP

1шт.

32

09649-03001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 60001-UP

1шт.
