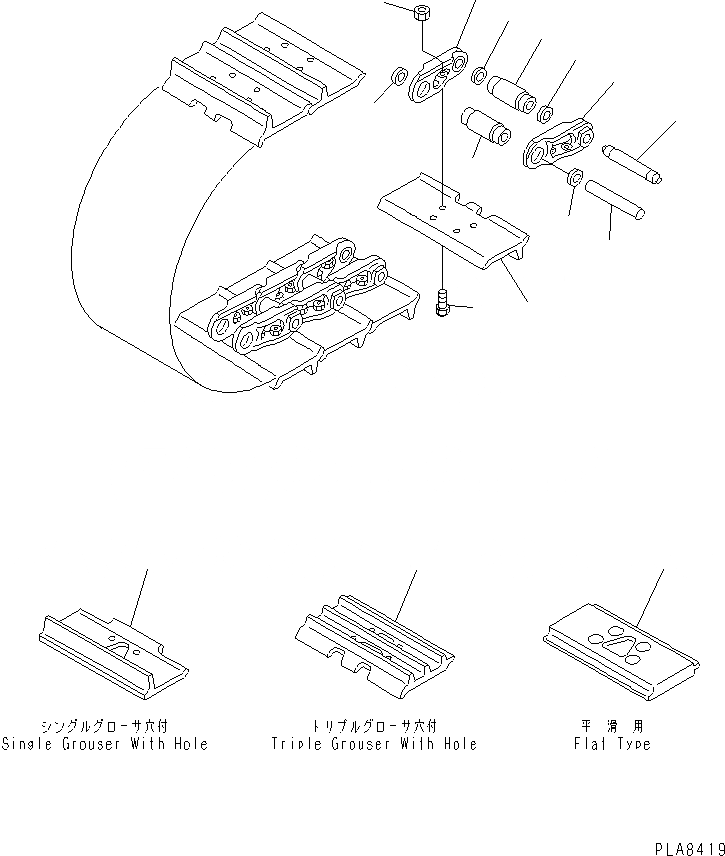

Запчасти Komatsu D21A-7 ГУСЕНИЦЫ (СО СЦЕПНЫМ ПАЛЬЦЕМ) КАТАЛОГИ ЗЧ

|$$1

SINGLE GROUSER

-1шт.

|$$2

300MM WIDE

-1шт.

|1

101-32-01009

TRACK SHOE ASS'Y

SN: 75001-UP

1шт.

1

101-32-11350

SHOE,TRACK

SN: 75001-UP

74шт.

2

201-32-11211

BOLT¤ SHOE (KIT)

SN: 75001-UP

296шт.

3

201-32-11220

NUT¤ SHOE (KIT)

SN: 75001-UP

296шт.

|4

102-32-00032

TRACK LINK ASS'Y

SN: 75001-UP

1шт.

4

101-32-11121

LINK,TRACK¤ L.H.

SN: 75001-UP

74шт.

5

101-32-11131

LINK,TRACK¤ R.H.

SN: 75001-UP

74шт.

6

101-32-11144

BUSHING,REGULAR

SN: 75001-UP

72шт.

7

101-32-11271

SEAL,DUST¤ REGULAR

SN: 75001-UP

144шт.

8

201-32-11151

PIN,REGULAR

SN: 75001-UP

72шт.

9

101-32-11173

BUSHING,MASTER

SN: 75001-UP

2шт.

10

101-32-11281

SEAL,DUST¤ MASTER

SN: 75001-UP

4шт.

11

201-32-11191

PIN,MASTER

SN: 75001-UP

2шт.

|$$16

SINGLE GROUSER

-1шт.

|$$17

340MM WIDE

-1шт.

|1

101-32-02009

TRACK SHOE ASS'Y

SN: 75001-UP

1шт.

1

101-32-11341

SHOE,TRACK

SN: 75001-UP

74шт.

2

201-32-11211

BOLT¤ SHOE (KIT)

SN: 75001-UP

296шт.

3

201-32-11220

NUT¤ SHOE (KIT)

SN: 75001-UP

296шт.

|4

102-32-00032

TRACK LINK ASS'Y

SN: 75001-UP

1шт.

|$$23

SINGLE GROUSER WITH HOLE

-1шт.

|$$24

300MM WIDE

-1шт.

|1

101-32-02109

TRACK SHOE ASS'Y

SN: 75001-UP

1шт.

1

101-32-11371

SHOE,TRACK

SN: 75001-UP

74шт.

2

201-32-11211

BOLT¤ SHOE (KIT)

SN: 75001-UP

296шт.

3

201-32-11220

NUT¤ SHOE (KIT)

SN: 75001-UP

296шт.

|4

102-32-00032

TRACK LINK ASS'Y

SN: 75001-UP

1шт.

|$$30

SINGLE GROUSER WITH HOLE

-1шт.

|$$31

340MM WIDE

-1шт.

|1

101-32-02013

TRACK SHOE ASS'Y

SN: 75001-UP

1шт.

1

101-32-11420

SHOE,TRACK

SN: 75001-UP

74шт.

2

201-32-11211

BOLT¤ SHOE (KIT)

SN: 75001-UP

296шт.

3

201-32-11220

NUT¤ SHOE (KIT)

SN: 75001-UP

296шт.

|4

102-32-00032

TRACK LINK ASS'Y

SN: 75001-UP

1шт.

|$$37

TRIPLE GROUSER WITH HOLE

-1шт.

|$$38

300MM WIDE

-1шт.

|1

102-32-01108

TRACK SHOE ASS'Y

SN: 75001-UP

1шт.

1

102-32-11290

SHOE,TRACK

SN: 75001-UP

74шт.

2

201-32-11211

BOLT¤ SHOE (KIT)

SN: 75001-UP

296шт.

3

201-32-11220

NUT¤ SHOE (KIT)

SN: 75001-UP

296шт.

|4

102-32-00032

TRACK LINK ASS'Y

SN: 75001-UP

1шт.

|$$44

FLAT TYPE

-1шт.

|$$45

300MM WIDE

-1шт.

|1

102-32-01205

TRACK SHOE ASS'Y

SN: 75001-UP

1шт.

1

101-32-11380

SHOE,TRACK

SN: 75001-UP

74шт.

2

201-32-11211

BOLT¤ SHOE (KIT)

SN: 75001-UP

296шт.

3

201-32-11220

NUT¤ SHOE (KIT)

SN: 75001-UP

296шт.

|4

102-32-00032

TRACK LINK ASS'Y

SN: 75001-UP

1шт.

|$$51

SERVICE KIT

-1шт.

|2

201-32-05001

SHOE BOLT AND NUT K.

SN: 75001-UP

1шт.

2

201-32-11211

BOLT¤ SHOE

SN: 75001-UP

50шт.

3

201-32-11220

NUT¤ SHOE

SN: 75001-UP

50шт.
