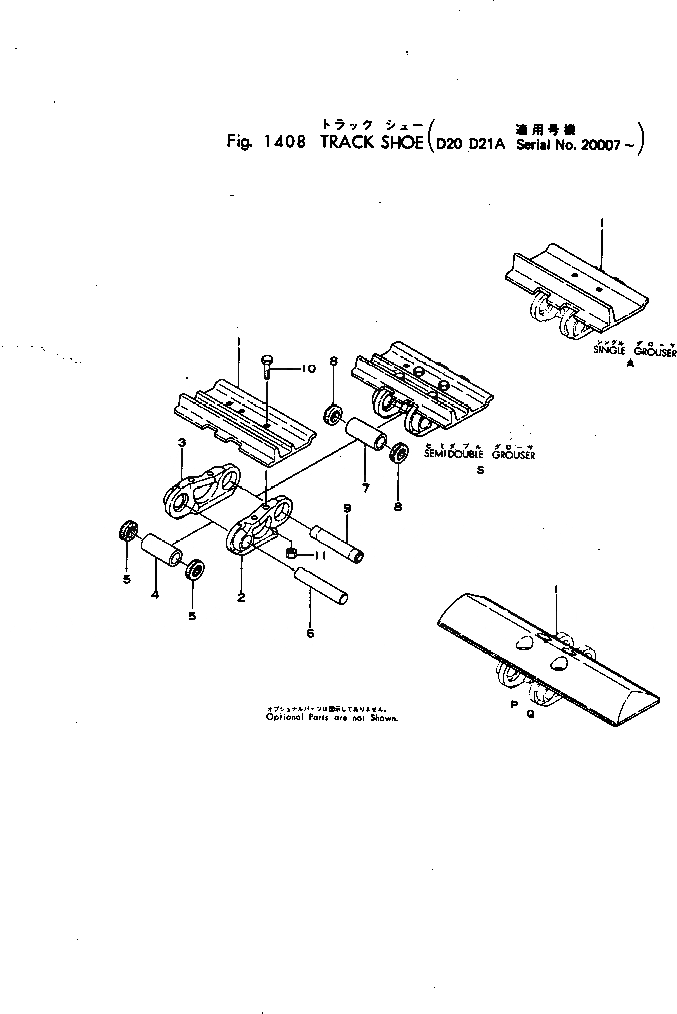

Запчасти Komatsu D21A-3 ГУСЕНИЦЫ ГУСЕНИЦЫ И ЧАСТИ КОРПУСА

|$$1

SINGLE 300MM

-1шт.

|$1

101-32-01004

TRACK SHOE ASS'Y

SN: .-UP

1шт.

|$2

101-32-01002

TRACK SHOE ASS'Y

SN: 20007-.

1шт.

1

101-32-11350

SHOE,TRACK

SN: 20007-UP

74шт.

|$4

101-32-00013

TRACK LINK ASS'Y

SN: .-UP

1шт.

|$5

101-32-00012

TRACK LINK ASS'Y

SN: 20007-.

1шт.

2

101-32-11120

LINK

SN: 20007-UP

74шт.

3

101-32-11130

LINK

SN: 20007-UP

74шт.

4

101-32-11141

BUSHING

SN: 20007-UP

72шт.

5

101-32-11270

SEAL,DUST

SN: .-UP

144шт.

5

101-32-11250

SEAL,DUST

SN: 20007-.

144шт.

6

101-32-11150

PIN

SN: 20007-UP

72шт.

7

101-32-11171

BUSHING

SN: 20007-UP

2шт.

8

101-32-11260

SEAL,DUST

SN: 20007-UP

4шт.

9

101-32-11190

PIN,MASTER

SN: 20007-UP

2шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$18

SINGLE 340MM

-1шт.

1

101-32-02003

TRACK SHOE ASS'Y

SN: 20007-UP

1шт.

1

101-32-11341

SHOE,TRACK

SN: 20007-UP

74шт.

2

101-32-00013

TRACK LINK ASS'Y

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$24

SINGLE 380MM

-1шт.

1

101-32-02303

TRACK SHOE ASS'Y

SN: 20007-UP

1шт.

1

101-32-11360

SHOE,TRACK

SN: 20007-UP

74шт.

2

101-32-00013

TRACK LINK ASS'Y

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$30

SINGLE 300MM,WITH HOLE

-1шт.

1

101-32-02102

TRACK SHOE ASS'Y

SN: 20007-UP

1шт.

1

101-32-11370

SHOE,TRACK

SN: 20007-UP

74шт.

2

101-32-00013

TRACK LINK ASS'Y

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$36

FLAT 300MM

-1шт.

1

102-32-01401

TRACK SHOE ASS'Y

SN: 20007-UP

1шт.

1

102-32-11360

SHOE,TRACK

SN: 20007-UP

74шт.

2

101-32-00013

TRACK LINK ASS'Y

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$42

FLAT 300MM,WITH HOLE

-1шт.

1

101-32-02202

TRACK SHOE ASS'Y

SN: 20007-UP

1шт.

1

101-32-11380

SHOE,TRACK

SN: 20007-UP

74шт.

2

101-32-00013

TRACK LINK ASS'Y

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$48

TRIPLE 300MM,(FOR TRIMMING DOZER)

-1шт.

1

102-32-01102

TRACK SHOE ASS'Y

SN: 20007-UP

1шт.

1

102-32-11290

SHOE,TRACK

SN: 20007-UP

74шт.

2

101-32-00013

TRACK LINK ASS'Y

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE (KIT)

SN: 20007-UP

296шт.

11

01803-01218

NUT, SHOE (KIT)

SN: 20007-UP

296шт.

|$$54

SERVICE KIT

-1шт.

10

101-32-05001

SHOE BOLT AND NUT K.

SN: 20007-UP

1шт.

10

101-32-11210

BOLT, SHOE

SN: 20007-UP

50шт.

11

01803-01218

NUT, SHOE

SN: 20007-UP

50шт.
