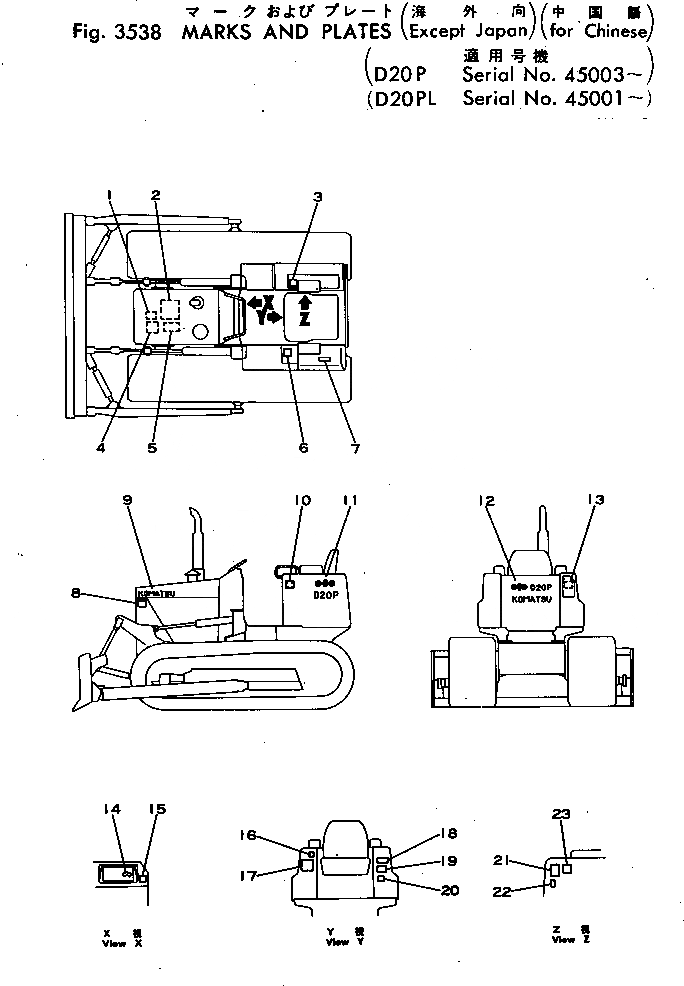

Запчасти Komatsu D20P-5 МАРКИРОВКА (КРОМЕ ЯПОН.) (КИТАЙ) ЧАСТИ КОРПУСА

1

09650-90103

PLATE, INSTRUCTION,RADIATOR

SN: 45003-UP

1шт.

2

10F-98-11940

CHART, OIL

SN: 45003-UP

1шт.

3

09670-98070

PLATE, OPERATING,BLADE LEVER

SN: 45003-UP

1шт.

4

09668-09000

PLATE, SAFETY,RADIATOR WARNING

SN: 45003-UP

1шт.

5

09637-90261

PLATE, INSTRUCTION,AIR CLEANER

SN: 45003-UP

1шт.

6

101-14-11190

PLATE, OPERATING,MISSION LEVER

SN: 45003-UP

1шт.

7

09652-90101

PLATE, CAUTION,FUEL TANK

SN: 45003-UP

1шт.

8

09667-09000

PLATE, SAFETY,ENGINE ROOM

SN: 45003-UP

1шт.

9

09690-00355

PLATE, MARK,KOMATSU

SN: 45003-UP

2шт.

10

09601-90835

PLATE, NAME,(LIMITED SUPPLY)

SN: 45003-UP

1шт.

10

04418-13060

SCREW

SN: 45003-UP

4шт.

11

09691-02204

PLATE, MARK,D20P

SN: 45003-UP

2шт.

11

09691-45208

PLATE, MARK,D20PL

SN: 45000-45000

2шт.

12

09692-02204

PLATE, MARK,D20P

SN: 45003-UP

1шт.

12

09692-46208

PLATE, MARK,D20PL

SN: 45000-45000

1шт.

13

09653-09000

PLATE, SAFETY,HYDRAULIC TANK

SN: 45003-UP

1шт.

14

09683-90060

PLATE, OPERATING,STARTING SWITCH

SN: 45003-UP

1шт.

15

09651-09000

PLATE, SAFETY,BEFORE OPERATING

SN: 45003-UP

1шт.

16

09685-90116

PLATE, OPERATING,BLADE LEVER LOCK

SN: 45003-UP

1шт.

17

12S-54-16240

PLATE,OIL FILTER

SN: 45003-UP

1шт.

18

09657-09010

PLATE, SAFETY,TRACK ADJUSTING

SN: 45003-UP

1шт.

19

113-98-21980

PLATE,ENGINE STOPPED

SN: 45003-UP

1шт.

20

09656-90080

PLATE, INSTRUCTION,STRAINER

SN: 45003-UP

1шт.

21

09654-09000

PLATE, SAFETY,WARNING

SN: 45003-UP

1шт.

22

09685-90016

PLATE, OPERATING,PARKING BRAKE

SN: 45003-UP

1шт.

23

09173-09000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 45003-UP

1шт.
