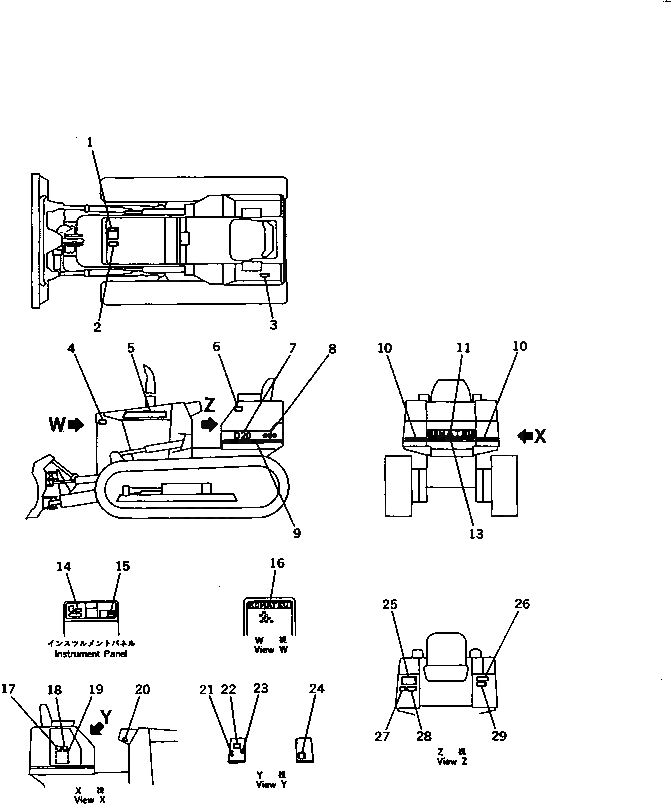

Запчасти Komatsu D20A-6 МАРКИРОВКА (ИСПАНИЯ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-01000

PLATE, SAFETY,RADIATOR WARNING

SN: 60001-UP

1шт.

2

09650-11103

PLATE, INSTRUCTION,RADIATOR

SN: 60001-UP

1шт.

3

09652-11101

PLATE, CAUTION,FUEL TANK

SN: 60001-UP

1шт.

4

09667-01000

PLATE, SAFETY,ENGINE ROOM

SN: 60001-UP

2шт.

5

103-98-31123

PLATE, MARK,WHITE LINE, L.H.

SN: 65861-UP

1шт.

5

103-98-31122

PLATE, MARK,KOMATSU, L.H.

SN: 60439-65860

1шт.

5

103-98-31121

PLATE, MARK,KOMATSU, L.H.

SN: 60001-60438

1шт.

5

103-98-31222

PLATE, MARK,WHITE LINE, R.H.

SN: 65861-UP

1шт.

5

103-98-31221

PLATE, MARK,KOMATSU, R.H.

SN: 60439-65860

1шт.

5

103-98-31220

PLATE, MARK,KOMATSU, R.H.

SN: 60001-60438

1шт.

6

09601-10835

PLATE, NAME,(LIMITED SUPPLY)

SN: 60001-UP

1шт.

6

04418-13060

SCREW

SN: 60001-UP

4шт.

7

101-98-51110

PLATE, MARK,D20A

SN: 60001-UP

2шт.

7

101-98-51520

PLATE, MARK,D20AG (RUBBER SHOE SPEC.)

SN: 60001-UP

2шт.

8

09694-50180

PLATE, MARK,SYMBOL

SN: 60001-UP

2шт.

9

103-98-31181

PLATE, MARK,WHITE LINE

SN: 65861-UP

2шт.

9

103-98-31180

PLATE, MARK,WHITE LINE

SN: 60001-65860

2шт.

10

103-98-31171

PLATE, MARK,WHITE LINE

SN: 65861-UP

2шт.

10

103-98-31170

PLATE, MARK,WHITE LINE

SN: 60001-65860

2шт.

11

09690-50560

PLATE, MARK,KOMATSU

SN: 60001-UP

1шт.

13

103-98-31162

PLATE, MARK,WHITE LINE

SN: 65861-UP

1шт.

13

103-98-31161

PLATE, MARK,WHITE LINE

SN: 60001-65860

1шт.

14

09651-01000

PLATE, SAFETY,BEFORE OPERATING

SN: 60001-UP

1шт.

15

09683-11060

PLATE, OPERATING,STARTING SWITCH

SN: 60001-UP

1шт.

16

09690-50450

PLATE, MARK,KOMATSU

SN: 60001-UP

1шт.

17

09653-01000

PLATE, SAFETY,HYDRAULIC TANK

SN: 60001-UP

1шт.

18

103-98-21652

PLATE, CAUTION,HYDRAULIC FILTER

SN: 62074-UP

1шт.

18

103-98-21651

PLATE, CAUTION,HYDRAULIC FILTER

SN: 60001-62073

1шт.

19

101-98-51630

CHART, OIL,OIL

SN: 60001-UP

1шт.

20

09685-00003

PLATE, OPERATING,PARKING BRAKE LEVER

SN: 60001-UP

1шт.

21

09670-00007

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 68391-UP

1шт.

21

0

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 60001-68390

1шт.

22

09670-00004

PLATE, OPERATING,BLADE CONTROL LEVER

SN: 60001-UP

1шт.

23

09685-00002

PLATE, OPERATING,BLADE CONTROL LEVER LOCK

SN: 60001-UP

1шт.

24

101-14-11190

PLATE, OPERATING,TRANSMISSION CONTROL LEVER

SN: 60001-UP

1шт.

25

09637-70161

PLATE, INSTRUCTION,AIR CLEANER

SN: 60001-UP

1шт.

26

09657-01011

PLATE, SAFETY,TRACK ADJUSTING

SN: 60001-UP

1шт.

27

09173-01000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

SN: 60001-UP

1шт.

28

09654-01000

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 60001-UP

1шт.

29

09649-01001

PLATE, INSTRUCTION,ENGINE STOPPED

SN: 60001-UP

1шт.
