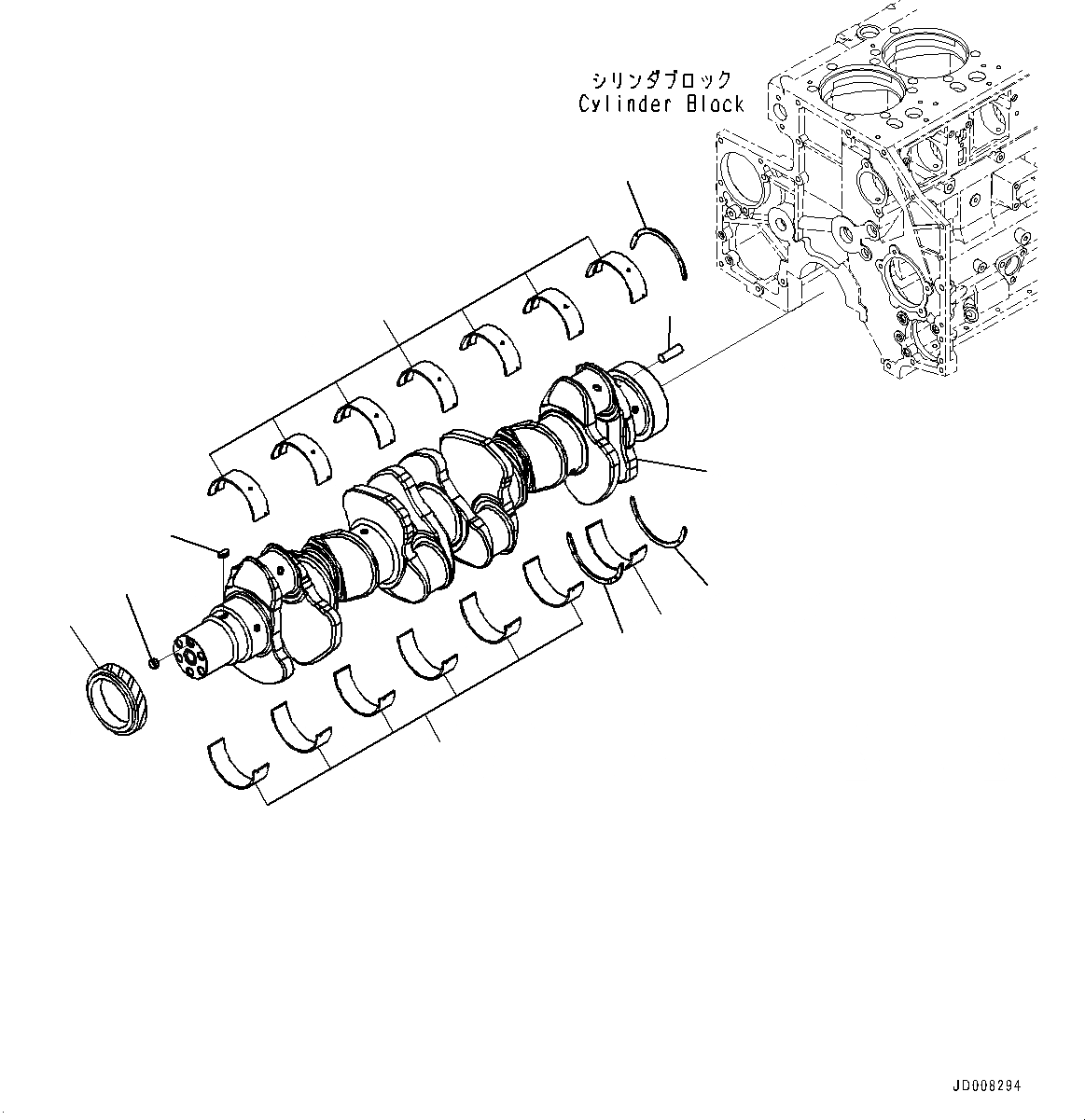

Запчасти Komatsu SAA6D140E-5G КОЛЕНВАЛ (№7-) КОЛЕНВАЛ

|$0

6261-31-1200

Crankshaft Assembly

SN: 535751-UP

1шт.

1

Crankshaft

SN: 535751-UP

1шт.

2

6150-31-1130

Key

SN: 535751-UP

1шт.

3

6210-31-1120

Gear

SN: 535751-UP

1шт.

3

6210-21-8000

Metal Assembly

SN: 535751-UP

1шт.

|$5

6210-21-8010

Main Metal Assembly

SN: 535751-UP

7шт.

|$6

6210-29-8010

Main Metal Assembly, Undersize 0.25mm

SN: 535751-UP

7шт.

|$7

6210-28-8010

Main Metal Assembly, Undersize 0.50mm

SN: 535751-UP

7шт.

|$8

6210-27-8010

Main Metal Assembly, Undersize 0.75mm

SN: 535751-UP

7шт.

|$9

6210-26-8010

Main Metal Assembly, Undersize 1.00mm

SN: 535751-UP

7шт.

4

Metal, Upper, Standard

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 0.25mm

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 0.50mm

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 0.75mm

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 1.00mm

SN: 535751-UP

1шт.

5

Metal

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 0.25mm

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 0.50mm

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 0.75mm

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 1.00mm

SN: 535751-UP

1шт.

|$20

6210-21-8050

Thrust Metal Assembly, Standard

SN: 535751-UP

1шт.

|$21

6210-29-8050

Thrust Metal Assembly, Oversize 0.25mm

SN: 535751-UP

1шт.

|$22

6210-28-8050

Thrust Metal Assembly, Oversize 0.50mm

SN: 535751-UP

1шт.

|$23

6210-27-8050

Thrust Metal Assembly, Oversize 0.75mm

SN: 535751-UP

1шт.

|$24

6210-26-8050

Thrust Metal Assembly, Oversize 1.00mm

SN: 535751-UP

1шт.

6

Metal, Thrust, Standard

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 0.25mm

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 0.50mm

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 0.75mm

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 1.00mm

SN: 535751-UP

3шт.

7

04020-01228

Pin, Dowel

SN: 535751-UP

1шт.

8

6211-31-1420

Pin

SN: 535751-UP

1шт.

|$0

6261-31-1200

Crankshaft Assembly

SN: 535751-UP

1шт.

1

Crankshaft

SN: 535751-UP

1шт.

2

6150-31-1130

Key

SN: 535751-UP

1шт.

3

6210-31-1120

Gear

SN: 535751-UP

1шт.

3

6210-21-8000

Metal Assembly

SN: 535751-UP

1шт.

|$5

6210-21-8010

Main Metal Assembly

SN: 535751-UP

7шт.

|$6

6210-29-8010

Main Metal Assembly, Undersize 0.25mm

SN: 535751-UP

7шт.

|$7

6210-28-8010

Main Metal Assembly, Undersize 0.50mm

SN: 535751-UP

7шт.

|$8

6210-27-8010

Main Metal Assembly, Undersize 0.75mm

SN: 535751-UP

7шт.

|$9

6210-26-8010

Main Metal Assembly, Undersize 1.00mm

SN: 535751-UP

7шт.

4

Metal, Upper, Standard

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 0.25mm

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 0.50mm

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 0.75mm

SN: 535751-UP

1шт.

4

Metal, Upper, Undersize 1.00mm

SN: 535751-UP

1шт.

5

Metal

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 0.25mm

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 0.50mm

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 0.75mm

SN: 535751-UP

1шт.

5

Metal, Lower, Undersize 1.00mm

SN: 535751-UP

1шт.

|$20

6210-21-8050

Thrust Metal Assembly, Standard

SN: 535751-UP

1шт.

|$21

6210-29-8050

Thrust Metal Assembly, Oversize 0.25mm

SN: 535751-UP

1шт.

|$22

6210-28-8050

Thrust Metal Assembly, Oversize 0.50mm

SN: 535751-UP

1шт.

|$23

6210-27-8050

Thrust Metal Assembly, Oversize 0.75mm

SN: 535751-UP

1шт.

|$24

6210-26-8050

Thrust Metal Assembly, Oversize 1.00mm

SN: 535751-UP

1шт.

6

Metal, Thrust, Standard

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 0.25mm

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 0.50mm

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 0.75mm

SN: 535751-UP

3шт.

6

Metal, Thrust, Oversize 1.00mm

SN: 535751-UP

3шт.

7

04020-01228

Pin, Dowel

SN: 535751-UP

1шт.

8

6211-31-1420

Pin

SN: 535751-UP

1шт.
