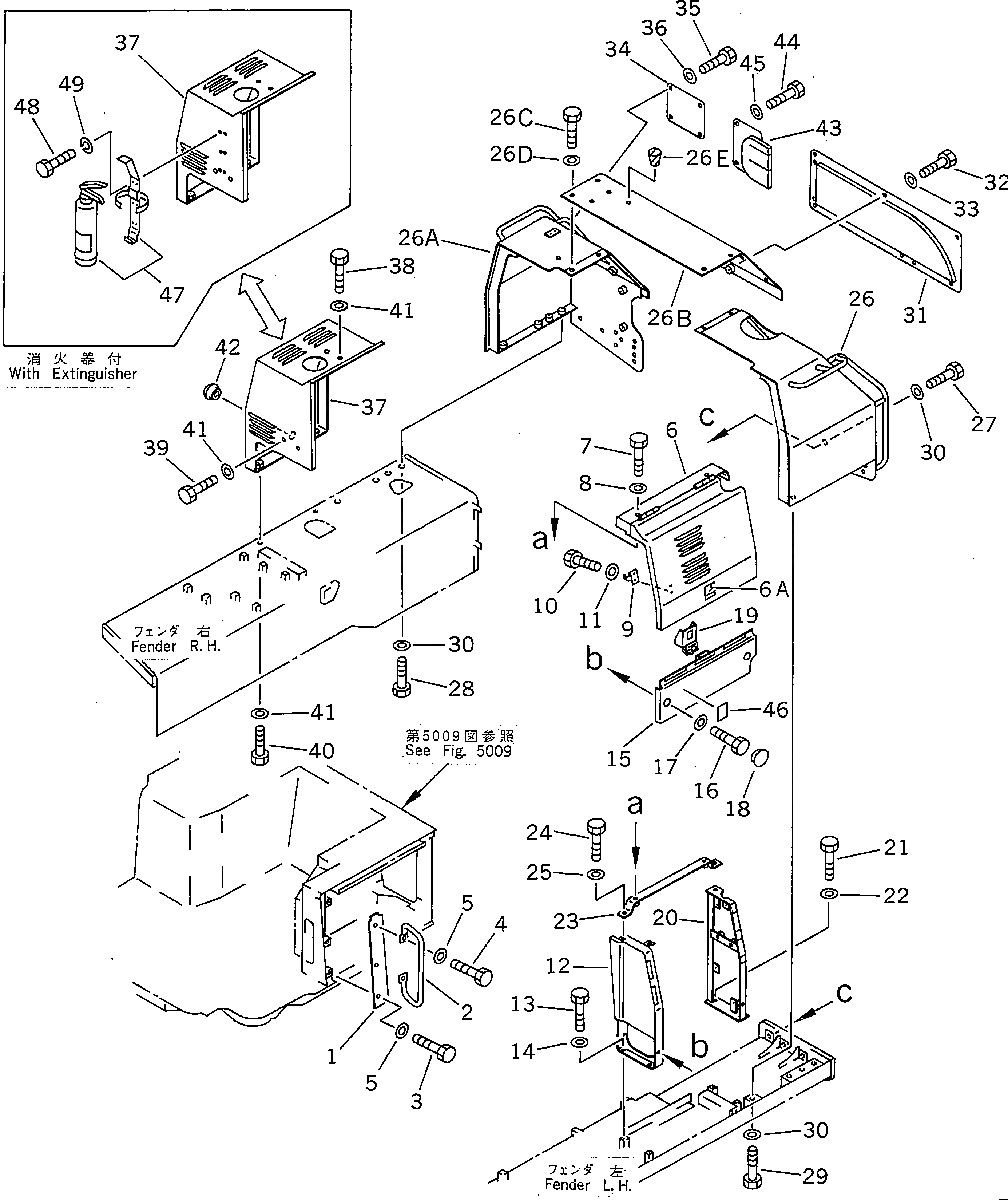

Запчасти Komatsu D155A-2 КОНДИЦ. ВОЗДУХА И КРЫШКА АККУМУЛЯТОРА (ШУМОПОДАВЛ. СПЕЦ-Я ДЛЯ EC)(№9-) ЧАСТИ КОРПУСА

1

175-862-5370

COVER,L.H.

SN: 50001-UP

1шт.

2

154-54-43220

HANDLE,(WITHOUT ROPS GUARD, CANOPY)

SN: 50001-UP

1шт.

3

01010-51220

BOLT,(WITHOUT ROPS GUARD, CANOPY)

SN: 50001-UP

1шт.

4

01010-51235

BOLT,(WITHOUT ROPS GUARD, CANOPY)

SN: 50001-UP

2шт.

5

01643-31232

WASHER,(WITHOUT ROPS GUARD, CANOPY)

SN: 50001-UP

3шт.

6

175-54-46470

COVER

SN: 50001-UP

1шт.

6A

195-54-42200

LEVER ASS'Y (WELDED)

SN: 50001-UP

1шт.

7

01010-51230

BOLT

SN: 50001-UP

2шт.

8

175-54-34170

WASHER

SN: 50001-UP

2шт.

9

198-54-19150

SPRING

SN: 50001-UP

1шт.

10

01010-50612

BOLT

SN: 50001-UP

2шт.

11

01643-30623

WASHER

SN: 50001-UP

2шт.

12

175-54-46541

FRAME

SN: 51305-UP

1шт.

12

175-54-46540

FRAME

SN: 50001-51304

1шт.

13

01010-51230

BOLT

SN: 50001-UP

2шт.

14

01643-31232

WASHER

SN: 50001-UP

2шт.

15

175-54-46460

COVER

SN: 50001-UP

1шт.

16

01010-51225

BOLT

SN: 50001-UP

2шт.

17

01643-31232

WASHER

SN: 50001-UP

2шт.

18

198-54-41940

CAP

SN: 50001-UP

2шт.

19

175-54-46500

BRACKET ASS'Y

SN: 50001-UP

1шт.

20

175-54-46551

FRAME

SN: 50001-UP

1шт.

21

01010-51230

BOLT

SN: 50001-UP

2шт.

22

01643-31232

WASHER

SN: 50001-UP

2шт.

23

175-54-46560

BRACKET

SN: 50001-UP

1шт.

24

01010-51235

BOLT

SN: 50001-UP

2шт.

25

01643-31232

WASHER

SN: 50001-UP

2шт.

26

175-54-47280

COVER,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

1шт.

26A

175-54-47290

COVER,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

1шт.

26B

175-54-47310

COVER,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

1шт.

26C

01010-51225

BOLT,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

8шт.

26D

01643-31232

WASHER,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

8шт.

26E

07049-01012

PLUG,(WITHOUT BACK-UP ALARM)

SN: 50901-UP

3шт.

27

01010-52450

BOLT,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

10шт.

28

01010-82465

BOLT,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

4шт.

29

01011-82455

BOLT,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

4шт.

30

20Y-25-11240

WASHER,(WITHOUT ROPS GUARD, CANOPY)

SN: 50901-UP

18шт.

31

175-862-5430

COVER,(WITHOUT CANOPY)

SN: 50001-UP

1шт.

32

01010-51230

BOLT,(WITHOUT CANOPY)

SN: 50001-UP

6шт.

33

01643-31232

WASHER,(WITHOUT CANOPY)

SN: 50001-UP

6шт.

34

175-978-6280

COVER,(WITHOUT CANOPY)

SN: 50001-UP

1шт.

35

01010-51225

BOLT,(WITHOUT CANOPY)

SN: 50001-UP

4шт.

36

01643-31232

WASHER,(WITHOUT CANOPY)

SN: 50001-UP

4шт.

37

175-54-46510

COVER,(WITHOUT CANOPY)

SN: 50001-UP

1шт.

37

175-95-12110

COVER,(WITH EXTINGUISHER)

SN: 50001-UP

1шт.

38

01010-51260

BOLT,(WITHOUT CANOPY)

SN: 50001-UP

2шт.

39

01010-51240

BOLT,(WITHOUT CANOPY)

SN: 50001-UP

2шт.

40

01010-51230

BOLT,(WITHOUT CANOPY)

SN: 50001-UP

2шт.

41

01643-31232

WASHER,(WITHOUT CANOPY)

SN: 50001-UP

6шт.

42

198-54-41940

CAP,(WITHOUT CANOPY)

SN: 50001-UP

1шт.

43

175-862-5421

COVER

SN: 50133-UP

1шт.

44

01010-51225

BOLT

SN: 50001-UP

2шт.

45

01643-31232

WASHER

SN: 50001-UP

2шт.

46

09696-00113

PLATE

SN: 50001-UP

1шт.

47

09495-40010

EXTINGUISHER,(ENGLISH)

SN: 50001-UP

1шт.

47

09495-00010

EXTINGUISHER,(JAPANESE)

SN: 50001-UP

1шт.

47

09495-11010

EXTINGUISHER,(ARABIC)

SN: 50001-UP

1шт.

47

09495-90010

EXTINGUISHER,(CHINESE)

SN: 50001-UP

1шт.

47

09495-50010

EXTINGUISHER,(FRENCH)

SN: 50001-UP

1шт.

47

09495-20010

EXTINGUISHER,(GERMAN)

SN: 50001-UP

1шт.

47

09495-21010

EXTINGUISHER,(CZECH.)

SN: 50001-UP

1шт.

47

09495-31010

EXTINGUISHER,(INDONESIAN)

SN: 50001-UP

1шт.

47

09495-80010

EXTINGUISHER,(PORTUGUESE)

SN: 50001-UP

1шт.

47

09495-30010

EXTINGUISHER,(RUSSIAN)

SN: 50001-UP

1шт.

47

09495-10010

EXTINGUISHER,(SPANISH)

SN: 50001-UP

1шт.

47

09495-12010

EXTINGUISHER,(PERSIAN)

SN: 50001-UP

1шт.

47

09495-60010

EXTINGUISHER,(ITALIAN)

SN: 50001-UP

1шт.

47

09495-70010

EXTINGUISHER,(GREEK)

SN: 50001-UP

1шт.

47

09495-06010

EXTINGUISHER,(POLISH)

SN: 50001-UP

1шт.

48

01010-50620

BOLT

SN: 50001-UP

6шт.

49

01602-20619

WASHER

SN: 50001-UP

6шт.
