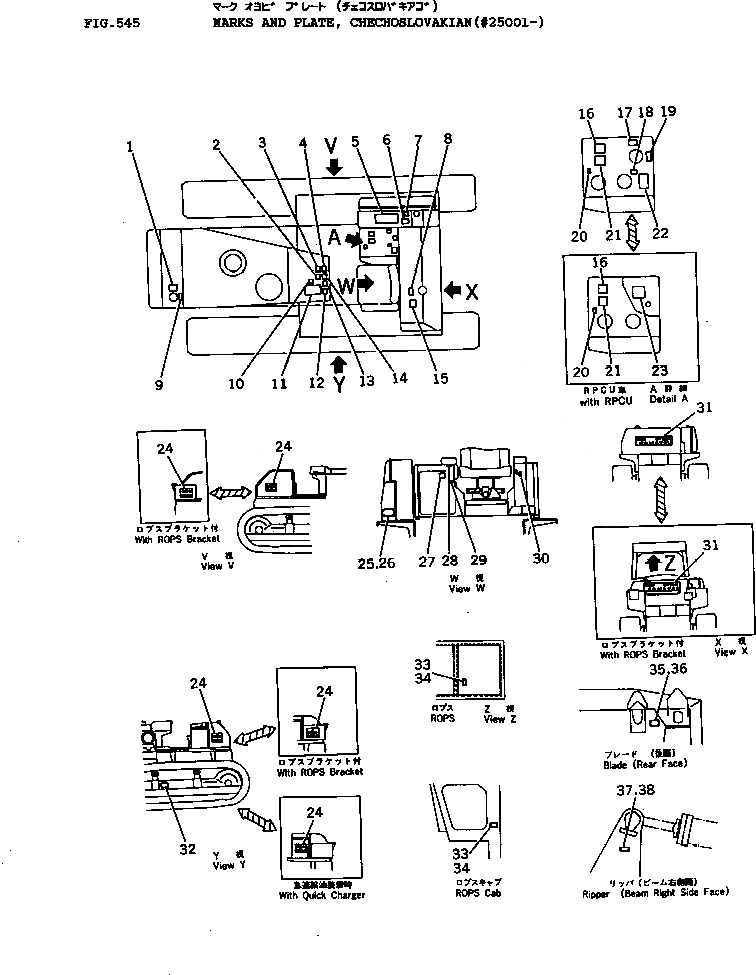

Запчасти Komatsu D155A-1 МАРКИРОВКА¤ CHECHOSLOVAKIAN(№-) ЧАСТИ КОРПУСА

1

09650-03101

PLATE, INSTRUCTION

SN: 25001-UP

1шт.

2

09666-00300

PLATE, SAFETY,FIRE PREVENTION

SN: 25001-UP

1шт.

3

09649-00301

PLATE, INSTRUCTION,ENGINE STOP

SN: 25001-UP

1шт.

4

175-900-3340

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 25001-UP

1шт.

5

175-900-3314

CHART,LUBRICATION

SN: 25001-UP

1шт.

6

09655-03120

PLATE, INSTRUCTION,OIL FILTER

SN: 25001-UP

1шт.

7

09653-00300

PLATE, SAFETY,OIL TANK

SN: 25001-UP

1шт.

8

09652-03101

PLATE, CAUTION,WATER DRAIN

SN: 25001-UP

1шт.

9

09668-00300

PLATE, SAFETY,RADIATOR CAP

SN: 25001-UP

1шт.

10

6128-82-4270

PLATE, CAUTION,APS CONTROL

SN: 25001-UP

1шт.

11

6128-81-4271

PLATE, OPERATING,APS CONTROL

SN: 25001-UP

1шт.

12

09654-00300

PLATE, SAFETY

SN: 25001-UP

1шт.

13

09651-00300

PLATE, SAFETY,BEFORE OPERATING

SN: 25001-UP

1шт.

14

09667-00300

PLATE, SAFETY,ENGINE COVER

SN: 25001-UP

1шт.

15

09656-03080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 25001-UP

1шт.

16

09173-00300

PLATE, SAFETY,MAINTENANCE

SN: 25001-UP

1шт.

17

09685-00002

PLATE, OPERATING,PIN PULLER

SN: 25001-UP

1шт.

18

09685-00001

PLATE, OPERATING,RIPPER LOCK

SN: 25001-UP

1шт.

19

195-98-13690

PLATE, OPERATING,PIN PULLER

SN: 25001-UP

1шт.

20

09685-00003

PLATE, OPERATING,BLADE LEVER LOCK

SN: 25001-UP

1шт.

21

09670-00004

PLATE, OPERATING,FOR STRAIGHT TILT AND U-DOZER

SN: 25001-UP

1шт.

21

09670-00001

PLATE, OPERATING,FOR STRAIGHT AND ANGLE DOZER

SN: 25001-UP

1шт.

22

175-900-5240

PLATE,TOWING WINCH LEVER

SN: 25001-UP

1шт.

22

09671-00002

PLATE, OPERATING,VARIABLE RIPPER LEVER

SN: 25001-UP

1шт.

22

09671-00001

PLATE, OPERATING,RIGID RIPPER LEVER

SN: 25001-UP

1шт.

23

09672-03056

PLATE, OPERATING,RPCU LEVER

SN: 25001-UP

1шт.

24

175-98-31470

PLATE, MARK

SN: 31173-UP

2шт.

24

09691-42155

PLATE, MARK

SN: 25001-31172

2шт.

25

09602-02643

PLATE, NAME,(LIMITED SUPPLY)

SN: 25001-UP

1шт.

26

01220-60408

SCREW

SN: 25001-UP

4шт.

27

195-98-13540

PLATE, CAUTION,SEAT BELT

SN: 25001-UP

1шт.

28

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 25001-UP

1шт.

29

09685-00001

PLATE, OPERATING,PARKING LEVER LOCK

SN: 25001-UP

1шт.

30

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 25001-UP

1шт.

31

09690-B0500

PLATE, MARK

SN: 31173-UP

1шт.

31

09692-42155

PLATE, MARK

SN: 25001-31172

1шт.

32

09657-00300

PLATE, SAFETY,TRACK ADJUSTING

SN: 25001-UP

2шт.

33

09620-03200

PLATE, NAME,ROPS

SN: 25001-UP

1шт.

34

04418-13060

SCREW

SN: 25001-UP

4шт.

35

09601-02835

PLATE, NAME

SN: 25001-UP

1шт.

36

04418-13060

SCREW

SN: 25001-UP

4шт.

37

09601-02835

PLATE, NAME

SN: 25001-UP

1шт.

38

04418-13060

SCREW

SN: 25001-UP

4шт.
