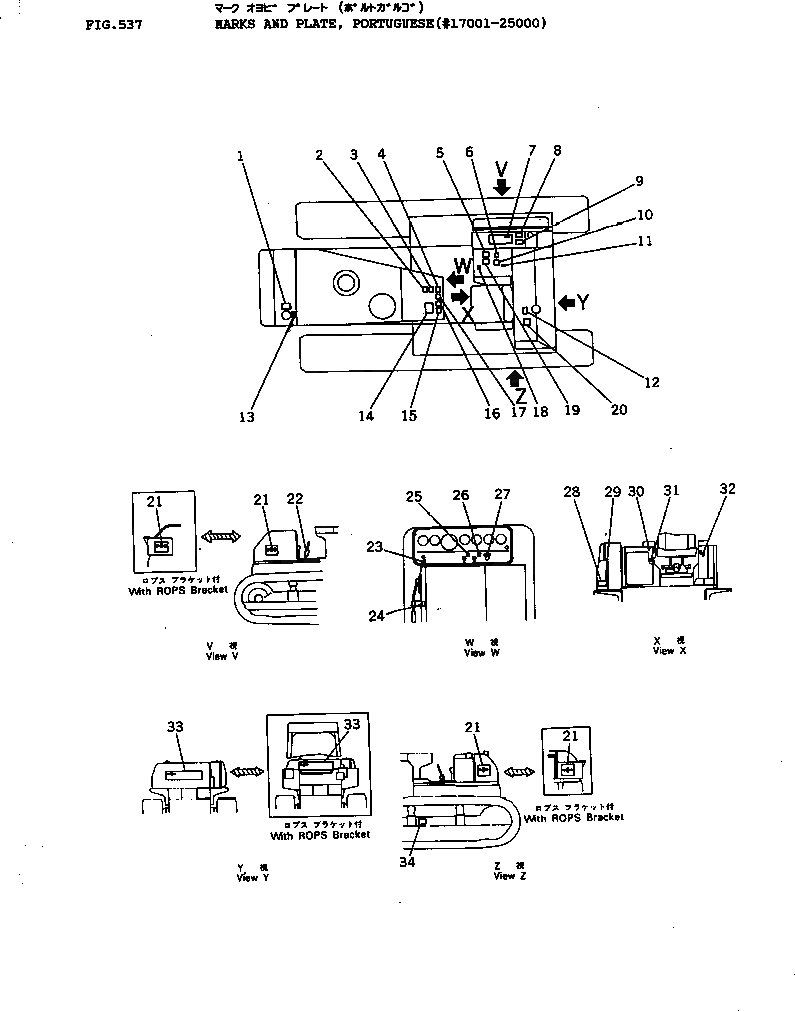

Запчасти Komatsu D155A-1 МАРКИРОВКА¤ ПОРТУГАЛ.(№7-) ЧАСТИ КОРПУСА

1

09650-70101

PLATE, INSTRUCTION

SN: 17001-@

1шт.

2

09649-71306

PLATE, INSTRUCTION,ENGINE STOP

SN: 17001-25000

1шт.

3

175-900-4540

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 17001-@

1шт.

4

09666-07000

PLATE, SAFETY,FIRE PREVENTION

SN: 17001-@

1шт.

5

09173-07000

PLATE, SAFETY,MAINTENANCE

SN: 17001-@

1шт.

6

195-98-13690

PLATE, OPERATING,PIN PULLER LEVER

SN: 19001-@

1шт.

6

175-79-31540

PLATE, OPERATING,PIN PULLER LEVER

SN: 8257-19000

1шт.

7

175-900-4522

CHART,LUBRICATION

SN: 17001-25000

1шт.

8

09653-07000

PLATE, SAFETY,OIL TANK

SN: 17001-@

1шт.

9

09655-71120

PLATE, INSTRUCTION,OIL FILTER

SN: 17001-@

1шт.

10

09671-70683

PLATE, OPERATING,VARIABLE RIPPER LEVER

SN: 17001-25000

1шт.

10

09671-70468

PLATE, OPERATING,RIGID RIPPER LEVER

SN: 17001-25000

1шт.

11

09685-00001

PLATE, OPERATING,RIPPER LEVER LOCK

SN: 17001-@

1шт.

12

09652-71100

PLATE, CAUTION,WATER DRAIN

SN: 17001-@

1шт.

13

09668-07000

PLATE, SAFETY,RADIATOR CAP

SN: 17001-25000

1шт.

14

195-98-12871

PLATE,APS CONTROL

SN: 17001-25000

1шт.

15

09654-07000

PLATE, SAFETY

SN: 17001-@

1шт.

16

09651-07000

PLATE, SAFETY,BEFORE OPERATING

SN: 17001-@

1шт.

17

09667-07000

PLATE, SAFETY,ENGINE COVER

SN: 17001-@

1шт.

18

09685-00003

PLATE, OPERATING,BLADE LEVER LOCK

SN: 17001-@

1шт.

19

09670-00003

PLATE, OPERATING,FOR STRAIGHT TILT AND U-DOZER

SN: 17001-25000

1шт.

19

09670-00001

PLATE, OPERATING,FOR STRAIGHT AND ANGLE DOZER

SN: 17001-@

1шт.

20

09656-71080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 17001-@

1шт.

21

09691-42155

PLATE, MARK

SN: 5508-@

2шт.

22

09687-70070

PLATE, OPERATING,MAIN CLUTCH LEVER

SN: 5507-5507

1шт.

23

09684-71040

PLATE, NAME,OIL FILTER

SN: 17001-25000

1шт.

24

09682-71020

PLATE, OPERATING,DECOMP LEVER

SN: 17001-25000

1шт.

25

09609-74008

PLATE, NAME,LAMP SWITCH

SN: 17001-25000

1шт.

26

09609-74007

PLATE, NAME,PRE-HEATER SWITCH

SN: 17001-25000

1шт.

27

09683-71060

PLATE, OPERATING,STARTING SWITCH

SN: 17001-25000

1шт.

28

09602-71643

PLATE, NAME,(LIMITED SUPPLY)

SN: 5508-@

1шт.

29

01220-60408

SCREW

SN: 17001-@

4шт.

30

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 17001-@

1шт.

31

09685-00001

PLATE, OPERATING,PARKING LEVER LOCK

SN: 17001-@

1шт.

32

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 17001-@

1шт.

33

09692-42155

PLATE, MARK

SN: 5508-@

1шт.

34

09657-07000

PLATE, SAFETY,TRACK ADJUSTING

SN: 17001-@

2шт.
