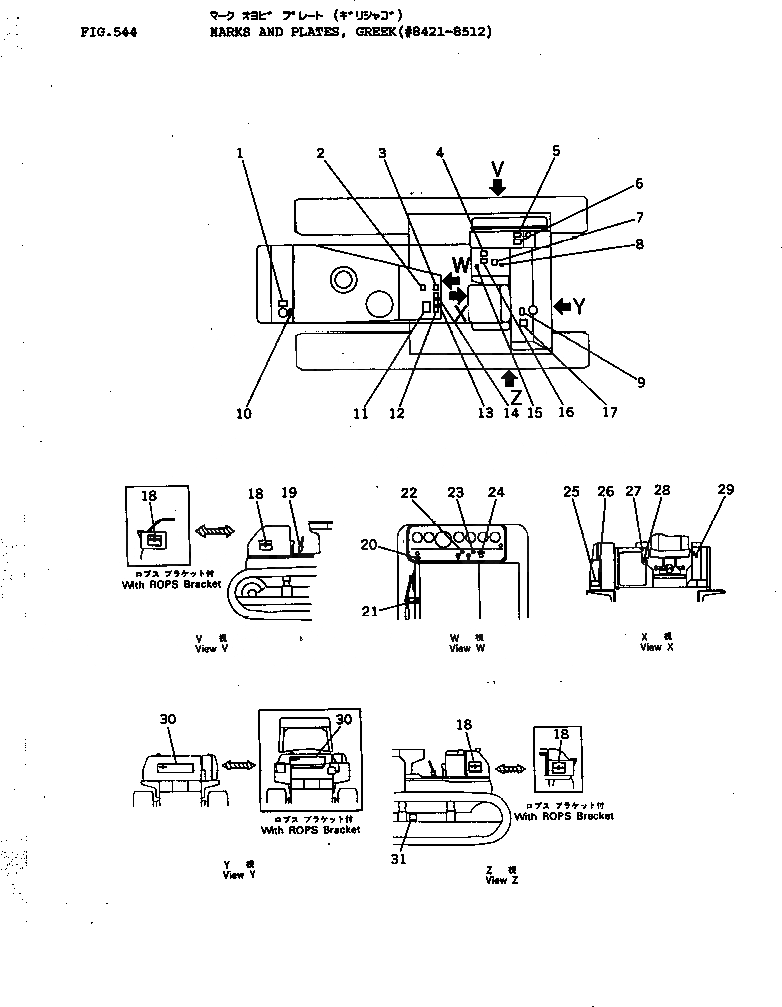

Запчасти Komatsu D150A-1 МАРКИРОВКА¤ GREEK(№8-8) ЧАСТИ КОРПУСА

1

09650-80101

PLATE, INSTRUCTION

SN: 8421-@

1шт.

2

09649-81300

PLATE, INSTRUCTION,ENGINE STOP

SN: 8421-@

1шт.

3

09666-08000

PLATE, SAFETY,FIRE PREVENTION

SN: 8421-@

1шт.

4

09173-08000

PLATE, SAFETY,MAINTENANCE

SN: 8421-@

1шт.

5

09653-08000

PLATE, SAFETY,OIL TANK

SN: 8421-@

1шт.

6

09655-80120

PLATE, INSTRUCTION,OIL FILTER

SN: 8421-@

1шт.

7

09671-80683

PLATE, OPERATING,VARIABLE RIPPER LEVER

SN: 8421-8512

1шт.

7

09671-80463

PLATE, OPERATING,RIGID RIPPER LEVER

SN: 8421-8512

1шт.

8

09685-00001

PLATE, OPERATING,RIPPER LEVER LOCK

SN: 8421-@

1шт.

9

09652-80100

PLATE, CAUTION,WATER DRAIN

SN: 8421-@

1шт.

10

09668-08000

PLATE, SAFETY,RADIATOR CAP

SN: 8421-@

1шт.

11

195-98-12930

PLATE, CAUTION,APS CONTROL

SN: 8421-@

1шт.

12

09654-08000

PLATE, SAFETY

SN: 8421-@

1шт.

13

09651-08000

PLATE, SAFETY,BEFORE OPERATING

SN: 8421-@

1шт.

14

09667-08000

PLATE, SAFETY,ENGINE COVER

SN: 8421-@

1шт.

15

09685-00003

PLATE, OPERATING,BLADE LEVER LOCK

SN: 8421-@

1шт.

16

09670-00003

PLATE, OPERATING,FOR STRAIGHT TILT AND U-DOZER

SN: 8421-8512

1шт.

16

09670-00001

PLATE, OPERATING,FOR STRAIGHT AND ANGLE DOZER

SN: 8421-@

1шт.

17

09656-80080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 8421-@

1шт.

18

09691-42150

PLATE, MARK

SN: 8421-@

2шт.

19

09687-80070

PLATE, OPERATING,MAIN CLUTCH LEVER

SN: 8421-@

1шт.

20

09684-80040

PLATE, NAME,OIL FILTER

SN: 8421-@

1шт.

21

09682-80020

PLATE, OPERATING,DECOMP LEVER

SN: 8421-@

1шт.

22

09609-84008

PLATE, NAME,LAMP SWITCH

SN: 8421-@

1шт.

23

09609-84007

PLATE, NAME,PRE-HEATER SWITCH

SN: 8421-@

1шт.

24

09683-80060

PLATE, OPERATING,STARTING SWITCH

SN: 8421-@

1шт.

25

09602-81643

PLATE, NAME,(LIMITED SUPPLY)

SN: 8421-@

1шт.

26

01220-60408

SCREW

SN: 8421-@

4шт.

27

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 8421-@

1шт.

28

09685-00001

PLATE, OPERATING,PARKING LEVER LOCK

SN: 8421-@

1шт.

29

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 8420-8420

1шт.

30

09692-42150

PLATE, MARK

SN: 8421-@

1шт.

31

09657-08000

PLATE, SAFETY,TRACK ADJUSTING

SN: 8421-@

2шт.
