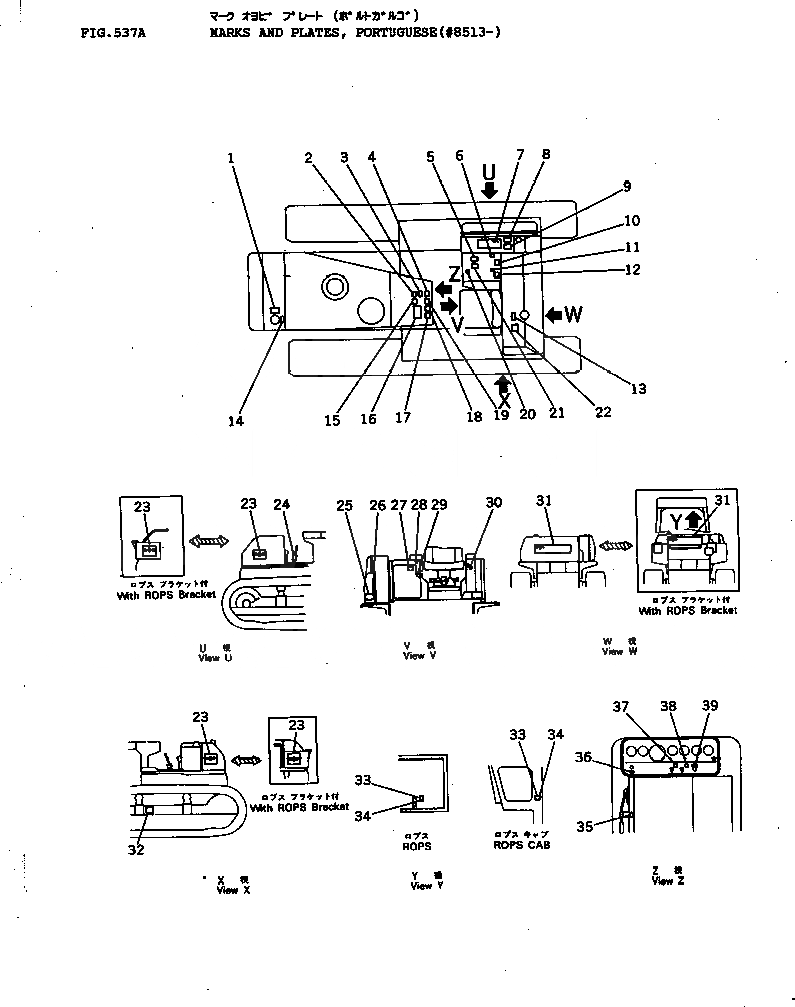

Запчасти Komatsu D150A-1 МАРКИРОВКА¤ ПОРТУГАЛ.(№8-) ЧАСТИ КОРПУСА

1

09650-71101

PLATE, INSTRUCTION

SN: 8421-UP

1шт.

2

09649-71300

PLATE, INSTRUCTION,ENGINE STOP

SN: 8421-UP

1шт.

3

175-900-4540

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 8421-UP

1шт.

4

09666-07000

PLATE, SAFETY,FIRE PREVENTION

SN: 8421-UP

1шт.

5

09173-07000

PLATE, SAFETY,MAINTENANCE

SN: 8421-UP

1шт.

6

09685-00002

PLATE, OPERATING,PIN PULLER

SN: 8513-UP

1шт.

7

175-900-4512

CHART,LUBRICATION

SN: 8421-UP

1шт.

8

09653-07000

PLATE, SAFETY,OIL TANK

SN: 8421-UP

1шт.

9

09655-71120

PLATE, INSTRUCTION,OIL FILTER

SN: 8421-UP

1шт.

10

195-98-13690

PLATE, OPERATING,PIN PULLER

SN: 8421-UP

1шт.

11

09685-00001

PLATE, OPERATING,RIPPER LOCK

SN: 8421-UP

1шт.

12

09671-00002

PLATE, OPERATING,VARIABLE RIPPER LEVER

SN: 8513-UP

1шт.

12

09671-00001

PLATE, OPERATING,RIGID RIPPER LEVER

SN: 8513-UP

1шт.

13

09652-71100

PLATE, CAUTION,WATER DRAIN

SN: 8421-UP

1шт.

14

09668-07000

PLATE, SAFETY,RADIATOR CAP

SN: 8421-UP

1шт.

15

6128-82-4560

PLATE, CAUTION,APS CONTROL

SN: 8420-8420

1шт.

16

195-98-12871

PLATE,APS CONTROL

SN: 8421-UP

1шт.

17

09654-07000

PLATE, SAFETY

SN: 8421-UP

1шт.

18

09651-07000

PLATE, SAFETY,BEFORE OPERATING

SN: 8421-UP

1шт.

19

09667-07000

PLATE, SAFETY,ENGINE COVER

SN: 8421-UP

1шт.

20

09685-00003

PLATE, OPERATING,BLADE LEVER LOCK

SN: 8421-UP

1шт.

21

09670-00004

PLATE, OPERATING,FOR STRAIGHT TILT AND U-DOZER

SN: 8513-UP

1шт.

21

09670-00001

PLATE, OPERATING,FOR STRAIGHT AND ANGLE DOZER

SN: 8421-UP

1шт.

22

09656-71080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 8421-UP

1шт.

23

09691-42150

PLATE, MARK

SN: 8421-UP

2шт.

24

09687-70070

PLATE, OPERATING,MAIN CLUTCH LEVER

SN: 8421-UP

1шт.

25

09602-71643

PLATE, NAME,(LIMITED SUPPLY)

SN: 8421-UP

1шт.

26

01220-60408

SCREW

SN: 8421-UP

4шт.

27

195-98-13650

PLATE, CAUTION,SEAT BELT

SN: 8421-UP

1шт.

28

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 8421-UP

1шт.

29

09685-00001

PLATE, OPERATING,PARKING LEVER LOCK

SN: 8421-UP

1шт.

30

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 8420-8420

1шт.

31

09690-B0500

PLATE, MARK

SN: .-UP

1шт.

31

09692-42150

PLATE, MARK

SN: 8421-.

1шт.

32

09657-07000

PLATE, SAFETY,TRACK ADJUSTING

SN: 8421-UP

2шт.

33

09620-70200

PLATE, NAME,ROPS

SN: 8513-UP

1шт.

34

04418-13060

SCREW

SN: 8513-UP

4шт.

35

09682-71020

PLATE, OPERATING,DECOMP LEVER

SN: 8421-UP

1шт.

36

09684-71040

PLATE, NAME,OIL FILTER

SN: 8421-UP

1шт.

37

09609-74008

PLATE, NAME,LAMP SWITCH

SN: 8421-UP

1шт.

38

09609-74007

PLATE, NAME,PRE-HEATER SWITCH

SN: 8421-UP

1шт.

39

09683-71060

PLATE, OPERATING,STARTING SWITCH

SN: 8421-UP

1шт.

40

195-98-23370

PLATE, OPERATING

SN: 5507-5507

1шт.

41

09960-61012

PLATE, MARK

SN: 5507-5507

2шт.
