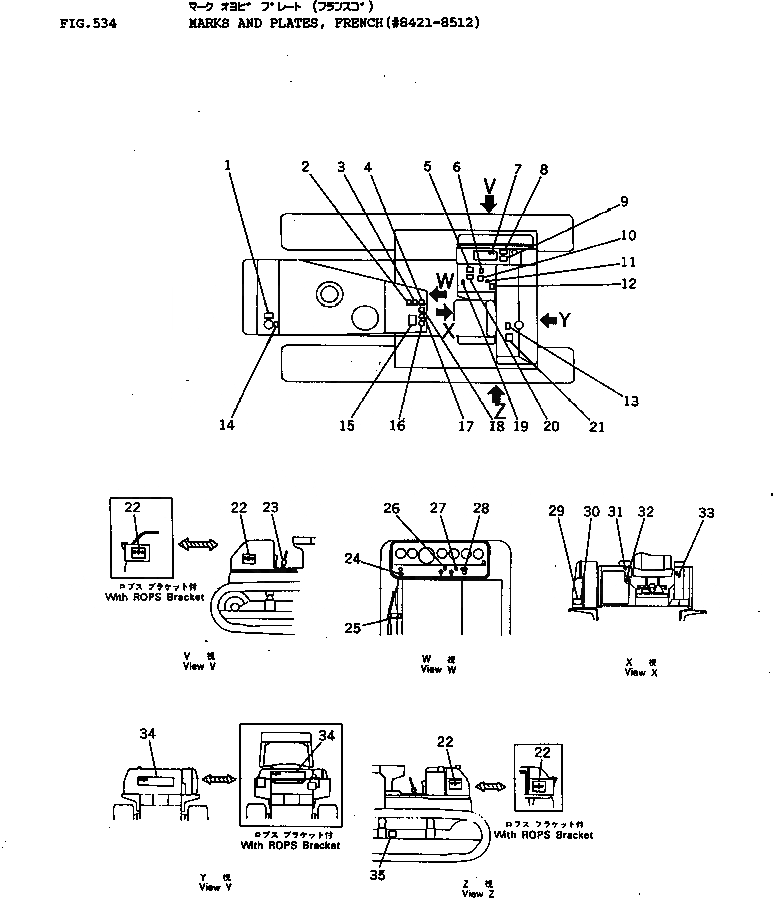

Запчасти Komatsu D150A-1 МАРКИРОВКА¤ ФРАНЦИЯ(№8-8) ЧАСТИ КОРПУСА

1

09650-51101

PLATE, INSTRUCTION

SN: 8421-@

1шт.

2

09649-51300

PLATE, INSTRUCTION,ENGINE STOP

SN: 8421-@

1шт.

3

175-900-3630

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 8421-@

1шт.

4

09666-05000

PLATE, SAFETY,FIRE PREVENTION

SN: 8421-@

1шт.

5

09173-05000

PLATE, SAFETY,MAINTENANCE

SN: 8421-@

1шт.

6

195-98-13690

PLATE, OPERATING,PIN PULLER LEVER

SN: 8421-@

1шт.

7

175-900-4212

CHART,LUBRICATION

SN: 8454-@

1шт.

7

175-900-4211

CHART,LUBRICATION

SN: 8421-8453

1шт.

8

09653-05000

PLATE, SAFETY,OIL TANK

SN: 8421-@

1шт.

9

09655-51120

PLATE, INSTRUCTION,OIL FILTER

SN: 8421-@

1шт.

10

09671-50683

PLATE, OPERATING,VARIABLE RIPPER LEVER

SN: 8421-8512

1шт.

10

09671-50468

PLATE, OPERATING,RIGID RIPPER LEVER

SN: 8421-8512

1шт.

11

09685-00001

PLATE, OPERATING,RIPPER LEVER LOCK

SN: 8421-@

1шт.

12

195-98-16310

PLATE, CAUTION,SEAT BELT

SN: 8421-@

1шт.

13

09652-51100

PLATE, CAUTION,WATER DRAIN

SN: 8421-@

1шт.

14

09668-05000

PLATE, SAFETY,RADIATOR CAP

SN: 8421-@

1шт.

15

195-98-12861

PLATE,APS CONTROL

SN: 8421-@

1шт.

16

09654-05000

PLATE, SAFETY

SN: 8421-@

1шт.

17

09651-05000

PLATE, SAFETY,BEFORE OPERATING

SN: 8421-@

1шт.

18

09667-05000

PLATE, SAFETY,ENGINE COVER

SN: 8421-@

1шт.

19

09685-00003

PLATE, OPERATING,BLADE LEVER LOCK

SN: 8421-@

1шт.

20

09670-00003

PLATE, OPERATING,FOR STRAIGHT TILT AND U-DOZER

SN: 8421-8512

1шт.

20

09670-00001

PLATE, OPERATING,FOR STRAIGHT AND ANGLE DOZER

SN: 8421-@

1шт.

21

09656-51080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 8421-@

1шт.

22

09691-42150

PLATE, MARK

SN: 8421-@

2шт.

23

09687-50070

PLATE, OPERATING,MAIN CLUTCH LEVER

SN: 8421-@

1шт.

24

09684-51040

PLATE, NAME,OIL FILTER

SN: 8421-@

1шт.

25

09682-51020

PLATE, OPERATING,DECOMP LEVER

SN: 8421-@

1шт.

26

09609-54008

PLATE, NAME,LAMP SWITCH

SN: 8421-@

1шт.

27

09609-54007

PLATE, NAME,PRE-HEATER SWITCH

SN: 8421-@

1шт.

28

09683-51060

PLATE, OPERATING,STARTING SWITCH

SN: 8421-@

1шт.

29

09602-51643

PLATE, NAME,(LIMITED SUPPLY)

SN: 8421-@

1шт.

30

01220-60408

SCREW

SN: 8421-@

4шт.

31

09679-02002

PLATE, OPERATING,HORN SWITCH

SN: 8421-@

1шт.

32

09685-00001

PLATE, OPERATING,PARKING LEVER LOCK

SN: 8421-@

1шт.

33

09685-00002

PLATE, OPERATING,TRANSMISSION LEVER LOCK

SN: 8420-8420

1шт.

34

09692-42150

PLATE, MARK

SN: 8421-@

1шт.

35

09657-05000

PLATE, SAFETY,TRACK ADJUSTING

SN: 8421-@

2шт.
