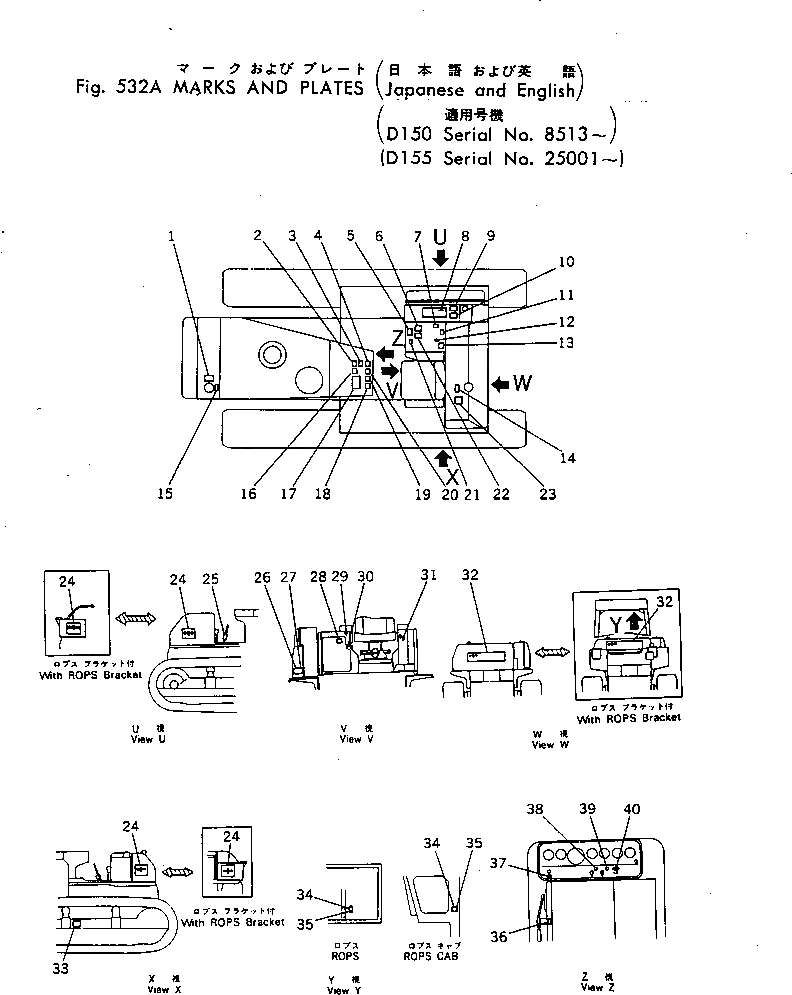

Запчасти Komatsu D150A-1 МАРКИРОВКА¤ ЯПОН. И АНГЛ.(№8-) ЧАСТИ КОРПУСА

1

09650-00101

PLATE, INSTRUCTION,RADIATOR

SN: 8421-UP

1шт.

2

09649-00300

PLATE, INSTRUCTION,ENGINE STOP

SN: 8421-UP

1шт.

2

09649-00001

PLATE, INSTRUCTION,ENGINE STOP

SN: 5507-5507

1шт.

3

175-900-2240

PLATE, CAUTION,TRAVELING ON SLOPE

SN: 8513-UP

1шт.

4

09666-00000

PLATE, SAFETY

SN: 8421-UP

1шт.

5

175-900-2330

PLATE, OPERATING,TRANSMISSION LEVER

SN: 8421-UP

1шт.

6

09173-00000

PLATE, SAFETY

SN: 8421-UP

1шт.

7

09685-00002

PLATE, OPERATING,PIN PULLER LOCK

SN: 8513-UP

1шт.

9

09653-00000

PLATE, SAFETY,HYDRAULIC TANK

SN: 8421-UP

1шт.

10

09655-00120

PLATE, INSTRUCTION,OIL FILTER

SN: 8421-UP

1шт.

11

195-98-13690

PLATE, OPERATING,PIN PULLER LEVER

SN: 8454-UP

1шт.

12

09685-00001

PLATE, OPERATING,RIPPER LOCK

SN: 8421-UP

1шт.

13

09671-00002

PLATE, OPERATING,VARIABLE RIPPER

SN: 8513-UP

1шт.

13

09671-00001

PLATE, OPERATING,RIGID RIPPER

SN: 8513-UP

1шт.

14

09652-00101

PLATE, CAUTION,WATER DRAIN

SN: 8513-UP

1шт.

15

09668-00000

PLATE, SAFETY

SN: 8421-UP

1шт.

16

6128-82-4990

PLATE, CAUTION,APS CONTROL

SN: 8513-UP

1шт.

17

6128-81-4991

PLATE, OPERATING,APS CONTROL

SN: 8513-UP

1шт.

18

09654-00000

PLATE, SAFETY

SN: 8421-UP

1шт.

19

09651-00000

PLATE, SAFETY,BEFORE OPERATING

SN: 8421-UP

1шт.

20

09667-00000

PLATE, SAFETY

SN: 8421-UP

1шт.

21

09685-00003

PLATE, OPERATING

SN: 8421-UP

1шт.

22

09670-00004

PLATE, OPERATING,FOR STRAIGHT TILT AND U-DOZER

SN: 8513-UP

1шт.

22

09670-00001

PLATE, OPERATING,FOR STRAIGHT AND ANGLE DOZER

SN: 8421-UP

1шт.

23

09656-00080

PLATE, INSTRUCTION,FUEL STRAINER

SN: 8421-UP

1шт.

24

09691-42150

PLATE, MARK

SN: 5508-UP

4шт.

24

09691-42155

PLATE, MARK

SN: 5507-5507

4шт.

25

09687-00070

PLATE, OPERATING

SN: 8421-UP

1шт.

26

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

SN: 5508-UP

1шт.

27

01220-60408

SCREW

SN: 5508-UP

4шт.

28

195-98-13410

PLATE, CAUTION

SN: 8421-UP

1шт.

29

09679-02002

PLATE, OPERATING

SN: 8421-UP

1шт.

30

09685-00001

PLATE, OPERATING

SN: 8421-UP

1шт.

31

09685-00002

PLATE, OPERATING

SN: 5507-5507

1шт.

32

09690-B0500

PLATE, MARK

SN: .-UP

1шт.

32

09692-42150

PLATE, MARK

SN: 5508-.

1шт.

32

09692-42155

PLATE, MARK

SN: 5507-5507

1шт.

33

09657-00000

PLATE, SAFETY

SN: 8421-UP

2шт.

34

09620-30200

PLATE, NAME

SN: 8513-UP

2шт.

35

04418-13060

SCREW

SN: 8513-UP

8шт.

36

09682-00020

PLATE, OPERATING,DECOMP LEVER

SN: 8421-UP

1шт.

37

09684-00040

PLATE, NAME,OIL FILTER

SN: 8421-UP

1шт.

38

09609-04008

PLATE, NAME,LAMP SWITCH

SN: 8421-UP

1шт.

39

09609-04007

PLATE, NAME,PRE-HEATER SWITCH

SN: 8421-UP

1шт.

40

09683-00060

PLATE, OPERATING,STARTING SWITCH

SN: 8421-UP

1шт.

41

195-98-23370

PLATE, OPERATING

SN: 5507-5507

1шт.

42

09960-61012

PLATE, MARK

SN: 5507-5507

2шт.
