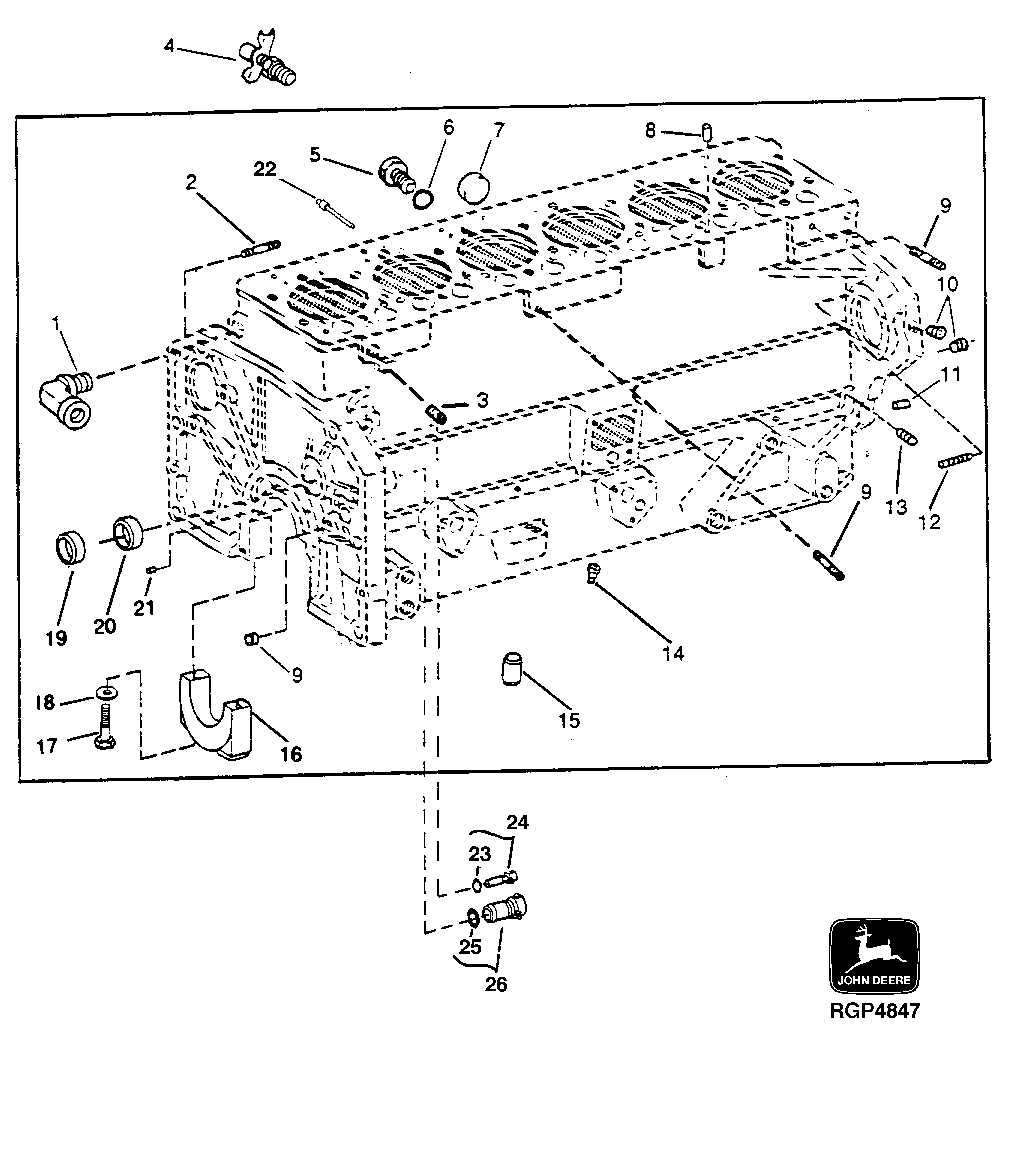

Запчасти John Deere 92ELC 25 - Cylinder Block Fittings And Main Bearing Caps 0404 Cylinder Block 6101AT010 6101AT010

1

R58725

Elbow Fitting

90°

1шт.

2

R114129

Stud

1/2" X 2", (SUB FOR D488R)

2шт.

3

15H666

Pipe Plug

3/8"

2шт.

4

AT13740

Drain Valve

1шт.

5

R39741

Drain Plug

1шт.

6

U13639

O-Ring

1шт.

7

AR80294

Plug

1шт.

8

R26241

Dowel Pin

7/16" X 1-3/4"

2шт.

9

K3083R

Stud

3шт.

10

RE57836

Pipe Plug

12.700 mm (SUB FOR 15H624)(1/2")

3шт.

11

R1612R

Dowel Pin

4шт.

12

R114130

Stud

(SUB FOR R55396)

4шт.

13

RE71255

Pipe Plug

(SUB FOR R104592, OR R E42713THIS APPLICATION)

4шт.

14

R112422

Orifice

6шт.

15

R500642

Bushing

(SUB FOR R62930)

2шт.

16

R59112

Cap

(MAIN)

6шт.

R59113

Cap

(MAIN THRUST)

1шт.

17

R60117

Screw

14шт.

18

R70268

Washer

14шт.

19

R82007

Plug

1шт.

20

R87561

Bushing

4шт.

21

F1743R

Dowel Pin

2шт.

22

AT107509

Plug

2шт.

23

A4365R

O-Ring

1шт.

24

DZ104494

Plug

SUB FOR AR61589

1шт.

25

R27149

O-Ring

1шт.

26

AR61533

Plug

1шт.

15H686

Pipe Plug

1" (CYLINDER BLOCK COOLANT OPENING)

1шт.
