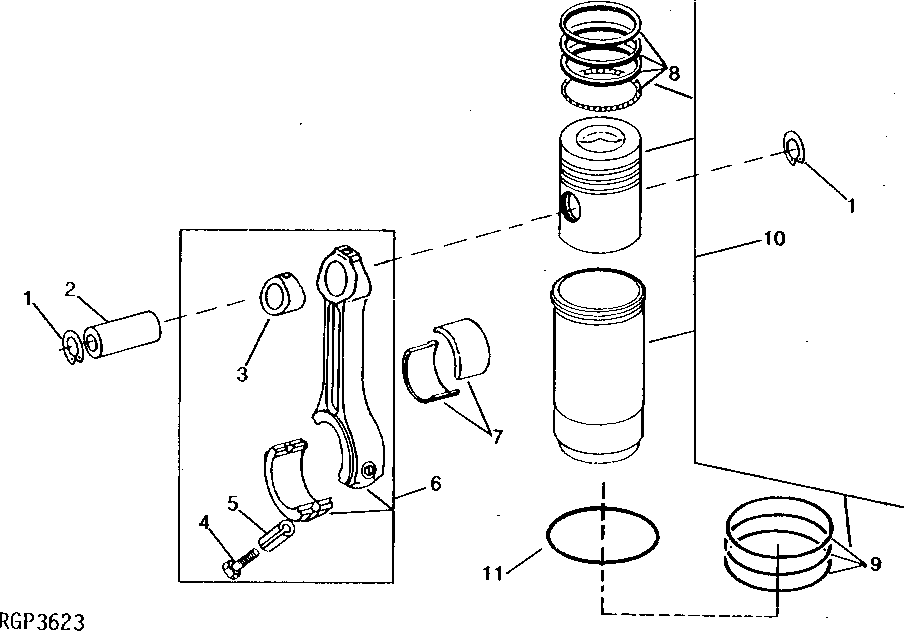

Запчасти John Deere 92ELC 24 - Piston, Rings, Liners and Connecting Rods 0403 Connecting Rods And Pistons 6101AT010 6101AT010

1

N51168

Snap Ring

12шт.

2

R64451

Piston Pin

6шт.

3

R69045

Bushing

(MARKED R63960)

6шт.

4

R66453

Cap Screw

12шт.

5

R48317

Sleeve

12шт.

6

AR79366

Connecting Rod

NLA (MARKED R63959) (ORDER SE500499)

6шт.

SE500499

Connecting Rod Reman

(REMAN FOR AR79366)

ARшт.

7

AR101271

Bearing

STD (PKG OF (2) R74671)

ARшт.

AR104129

Bearing

0 05 MM ( 002") US (PKG OF (2) R76649)

ARшт.

AR104130

Bearing

0 25 MM ( 010") US (PKG OF (2) R76650)

ARшт.

AR104131

Bearing

0 50 MM ( 020") US (PKG OF (2) R76651)

ARшт.

AR104132

Bearing

0 75 MM ( 030") US (PKG OF (2) R76652)

ARшт.

8

AR82355

Piston Ring Kit

1шт.

9

AR72351

O-Ring Kit

6шт.

10

RE53215

Piston-Liner Kit

(A) (MARKED RE52309, RE54964 OR RE57949)

6шт.

11

R81276

Shim

0 05 MM

ARшт.

R81277

Shim

0 10 MM

ARшт.
