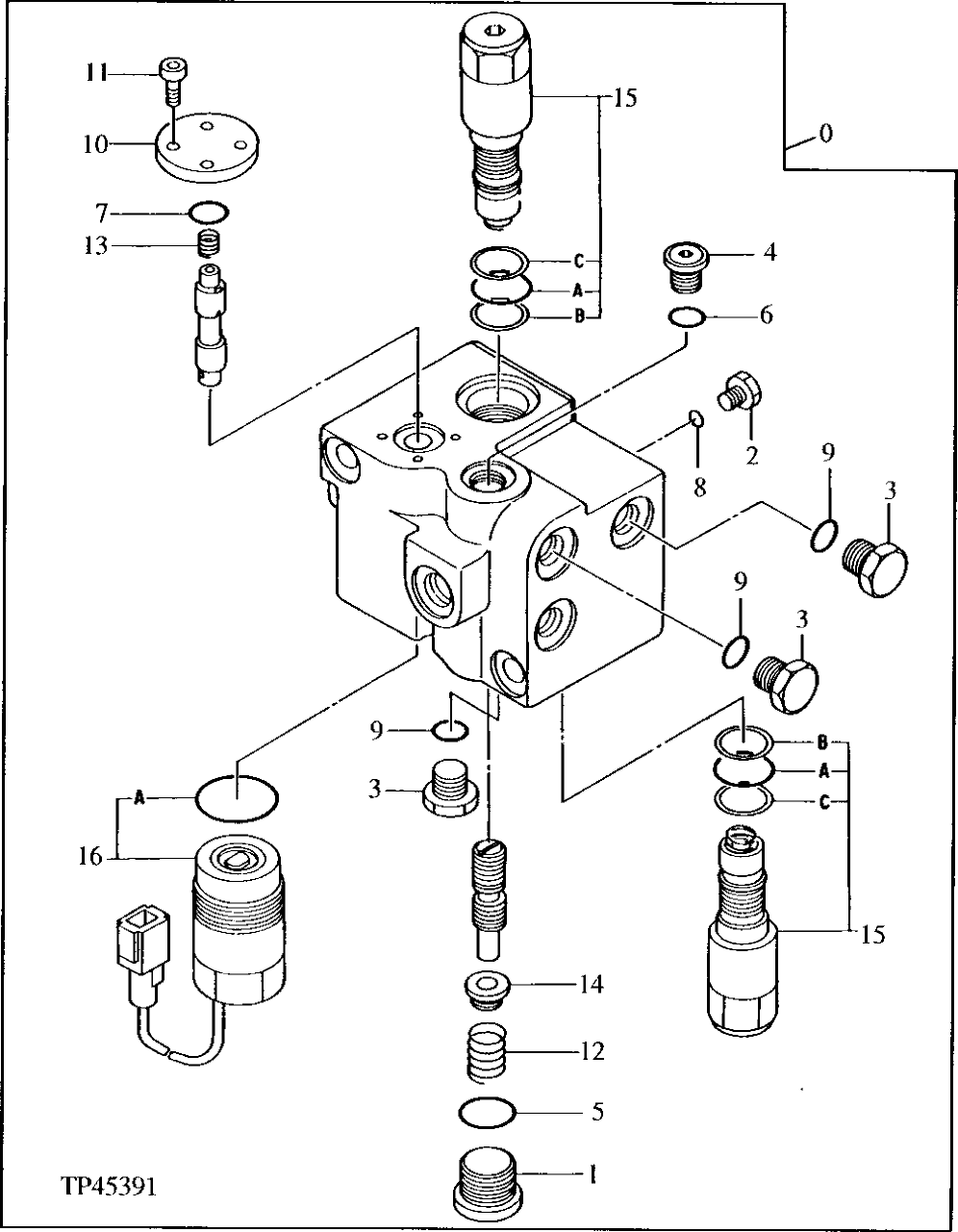

Запчасти John Deere 92ELC 320 - SWING PIPINGS VALVE 4360 Hydraulics

0

4332731

Flow Control Hyd. Valve

(SUB FOR AT201789)

1шт.

1

0437401

Plug

(SUB FOR AT202279)

1шт.

2

0437402

Plug

(SUB FOR AT202280)

1шт.

3

0236014

Fitting Plug

(SUB FOR TH102650)

3шт.

4

0437403

Plug

(SUB FOR AT202281)

1шт.

5

CH12329

Packing

1шт.

6

CH10568

Packing

1шт.

7

T111819

O-Ring

14.800 X 2.400 mm

1шт.

8

E56086

O-Ring

5.283 X 1.778 mm

1шт.

9

M800650

Packing

3шт.

10

0437404

Cover

(SUB FOR AT202282)

1шт.

11

0437405

Bolt

(SUB FOR AT202283)

4шт.

12

0437406

Spring

(SUB FOR AT202284)

1шт.

13

0437407

Spring

(SUB FOR AT202285)

1шт.

14

0437408

Plate

(SUB FOR AT202286)

1шт.

15

0627601

Flow Control Hyd. Valve

(SUB FOR AT202290)

2шт.

15A

CH12329

Packing

1шт.

15B

4027959

Back-Up Ring

(SUB FOR TH102654 ) (SUB FOR TH100771)

1шт.

15C

0627602

Ring

(SUB FOR AT204912)

1шт.

16

0437411

Solenoid Valve

(SUB FOR AT202288)

1шт.

16A

0437412

O-Ring

(SUB FOR AT202289

1шт.
