0
4334276EX

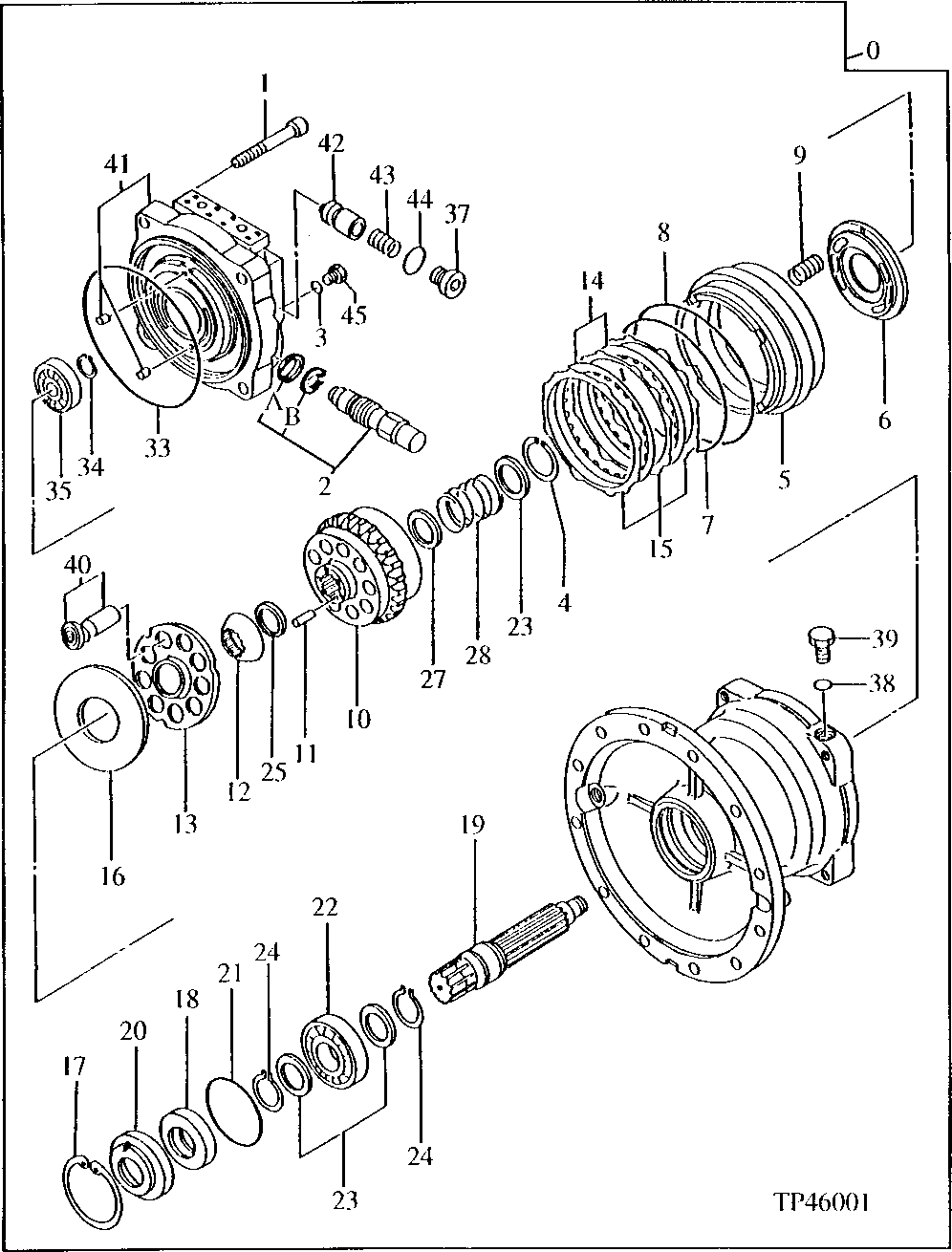

Hydraulic Motor Reman
SUB FOR AT201794 OR AT217357 Remanufactured
1шт.
1
0365318
Screw
SUB FOR AT128294
4шт.
2
4278501
Pressure Relief Valve
SUB FOR AT130948
2шт.
2A
A811030
O-Ring
29.400 X 3.100 mm SUB FOR TH101300
1шт.
2B
4284569
Back-Up Ring
SUB FOR AT168851 OR 4S01077
1шт.
3
M800650
Packing
2шт.
4
40M7201
Snap Ring
1шт.
5
0365329
Piston
SUB FOR AT128302
1шт.
6
0365315
Plate
SUB FOR AT128291
1шт.
7
0365330
O-Ring
SUB FOR AT128303 OR 4S01092
1шт.
8
0308623
O-Ring
SUB FOR AT170299, 04114 16, TH109953 OR 4S01094
1шт.
9
0365331
Spring
SUB FOR TH112060
16шт.
10
0365307
Cylinder
SUB FOR AT128283
1шт.
11
0365310
Pin
SUB FOR AT128286
12шт.
12
0365308
Bushing
SUB FOR AT128284
1шт.
13
0365313
Pressed Flanged Housing
SUB FOR AT128289
1шт.
14
0365332
Plate
SUB FOR AT128304
2шт.
15
0365333
Plate
SUB FOR AT128305
3шт.
16
0365314
Washer
64 X 140 X 8 mm SUB FOR AT128290
1шт.
17
40M7118
Snap Ring
1шт.
18
0353318
Seal
SUB FOR AT132386 OR 4S00822
1шт.
19
0365305
Shaft
SUB FOR AT128281
1шт.
20
0365317
Cover
SUB FOR AT128293
1шт.
21
AT264319
O-Ring
99.400 X 3.100 mm SUB FOR T110447
1шт.
22
0365323
Cylindrical Roller Bearing
SUB FOR AT128298
1шт.
23
0365312
Washer
45 X 57 X 3 mm SUB FOR AT128288
1шт.
24
40M7047
Snap Ring
2шт.
25
0365311
Washer
43 X 54 X 1.500 mm SUB FOR AT128287
1шт.
27
0365312
Washer
45 X 57 X 3 mm SUB FOR AT128288
1шт.
28
0365309
Spring
SUB FOR AT128285
1шт.
33
4323631
O-Ring
SUB FOR AT130950, 4S00205, AT132 162, 0125431, 4S01096 OR 4S00614
1шт.
34
40M7195
Snap Ring
1шт.
35
0365324
Bearing
SUB FOR TH112052
1шт.
37
15M7027
Drain Plug
2шт.
38
M800650
Packing
1шт.
39
0236014
Fitting Plug
SUB FOR TH102650
1шт.
40
0365301
Piston
SUB FOR AT128278
9шт.
41
0365302
Housing
SUB FOR AT128279
1шт.
42
0236006
Plunger
SUB FOR TH102635
2шт.
43
0236009
Spring
SUB FOR TH102638
2шт.
44
AT264347
O-Ring
SUB FOR TH100136 OR 4506428
2шт.
45
0236014
Fitting Plug
SUB FOR TH102650
2шт.
