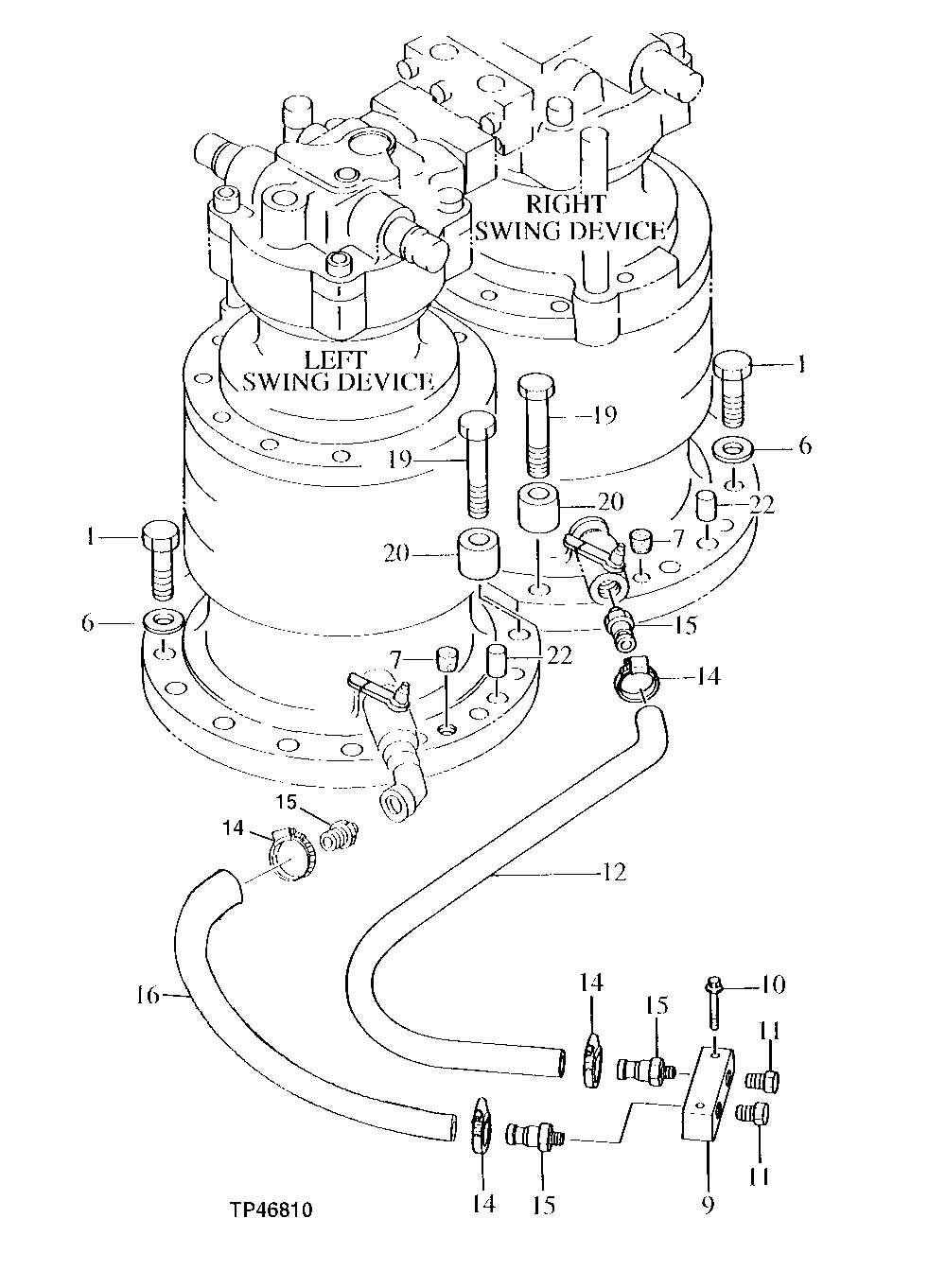

Запчасти John Deere 92ELC 317 - SWING DEVICE PARTS 4360 Hydraulics

1

T214405

Bolt

(SUB FOR TH101870, J932270)

22шт.

6

T56006

Washer

23.825 X 44.450 X 6.350 mm

22шт.

7

99M7010

Plug

(SUB FOR TH103636)

4шт.

9

4297191

Junction Block

(SUB FOR AT202124)

1шт.

10

19M7658

Cap Screw

M10 X 50

2шт.

19M7572

Bolt

(ALSO ORDER 12M7066)

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

U40979

Pipe Plug

12.700 mm

2шт.

12

Hydraulic Hose - Fabricate

(FURNISH T78497 BULK HOSE CUT TO LENGTH)

1шт.

14

AR21839

Clamp

4шт.

15

4004589

Adapter Fitting

(SUB FOR AT202075)

4шт.

16

Hydraulic Hose - Fabricate

(FURNISH T78497 BULK HOSE CUT TO LENGTH)

1шт.

19

19M8806

Screw

M22 X 110

4шт.

20

4334138

Spacer

(SUB FOR AT202335)

4шт.

22

4343336

Dowel Pin

(SUB FOR AT202349)

4шт.
