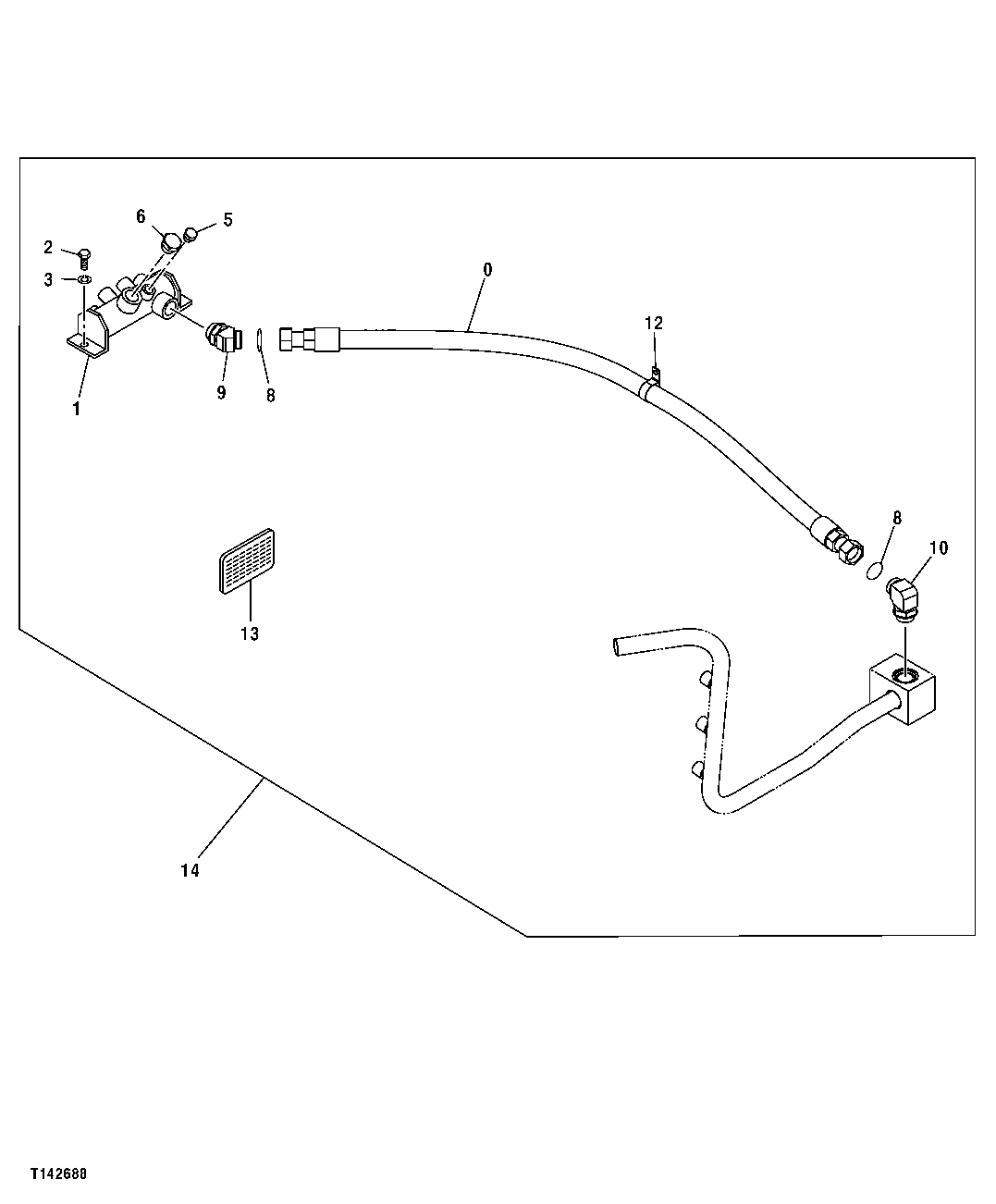

Запчасти John Deere 92ELC 309 - BOOM CYLINDER LOAD LOWERING VALVE HOSE 3360 HYDRAULIC SYSTEM

0

4462695

Hydraulic Hose

(SUB FOR TH4462695)

1шт.

1

8042550

Manifold

(SUB FOR AT175140)

1шт.

2

19M7872

Cap Screw

M12 X 25

2шт.

3

12H301

Lock Washer

1/2"

2шт.

5

4174541

Fitting

(SUB FOR TH110477)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

6

4113926

Fitting

(SUB FOR AT126200)

1шт.

TH101926

O-Ring

1шт.

8

970860

O-Ring

(SUB FOR TH104634)

2шт.

9

A853200

Elbow Fitting

(SUB FOR THA853200)

1шт.

970860

O-Ring

(SUB FOR TH104634)

1шт.

10

Elbow Fitting

( THA853300 NOT AVAILABLE)

1шт.

970860

O-Ring

(SUB FOR TH104634)

1шт.

12

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

13

Plate

( TH4370859 NOT AVAILABLE)

1шт.

14

Field Installation Kit

WHOLE GOODS (BOOM CYLINDER LOAD LOWERING VAL VE) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITI ONAL COMPONENTS ON FOLLOWING PAGES) ( AT1711 67 NLA) ( AT194999 NLA) (FURNISH COMPONENTS)

1шт.
