307 - BOOM CYLINDER LOAD LOWERING VALVE KIT

Запчасти John Deere 92ELC 307 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM

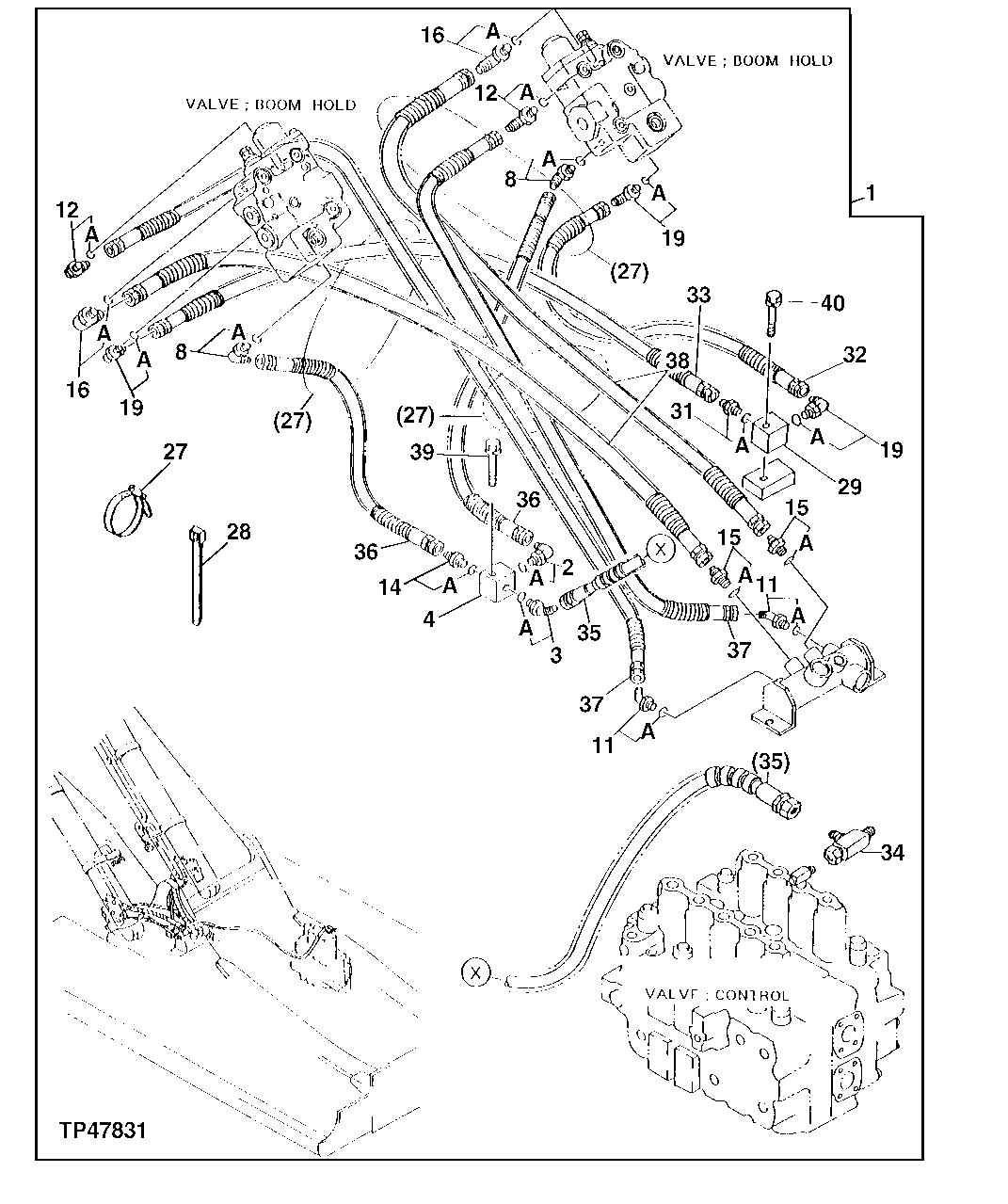

Схема запчастей John Deere 92ELC - 307 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Kit

( AT171167 NO LONGER AVAILABLE, SUB AT194999 ) (BOOM CYLINDER LOAD LOWERING VALVE) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPON ENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

2

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

3

4190244

Elbow Fitting

(SUB FOR TH106152)

1шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

4

4251601

Junction Block

(SUB FOR AT175150)

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

11

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

12

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

14

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

15

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

16

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

16A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

19

4154670

Elbow Fitting

(SUB FOR TH100951)

3шт.

19A

M800650

Packing

1шт.

27

TY22485

Hose Clamp

(SUB FOR AT175267 OR 4351923)

3шт.

28

H77698

Tie Band

5шт.

29

4335378

Junction Block

(SUB FOR AT175157)

1шт.

31

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

31A

M800650

Packing

1шт.

32

4322515

Hydraulic Hose

(SUB FOR AT175158)

1шт.

33

4322516

Hydraulic Hose

(SUB FOR AT175159)

1шт.

34

4246672

Tee Fitting

(SUB FOR AT200991)

1шт.

35

Hydraulic Hose

( 4356491 NLA) (SUB FOR AT175160)

1шт.

36

4322512

Hydraulic Hose

(SUB FOR AT175161)

2шт.

37

4322514

Hydraulic Hose

(SUB FOR AT175162)

2шт.

38

4322513

Hydraulic Hose

(SUB FOR AT175163)

2шт.

39

19M8348

Cap Screw

M12 X 65

1шт.

40

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.
