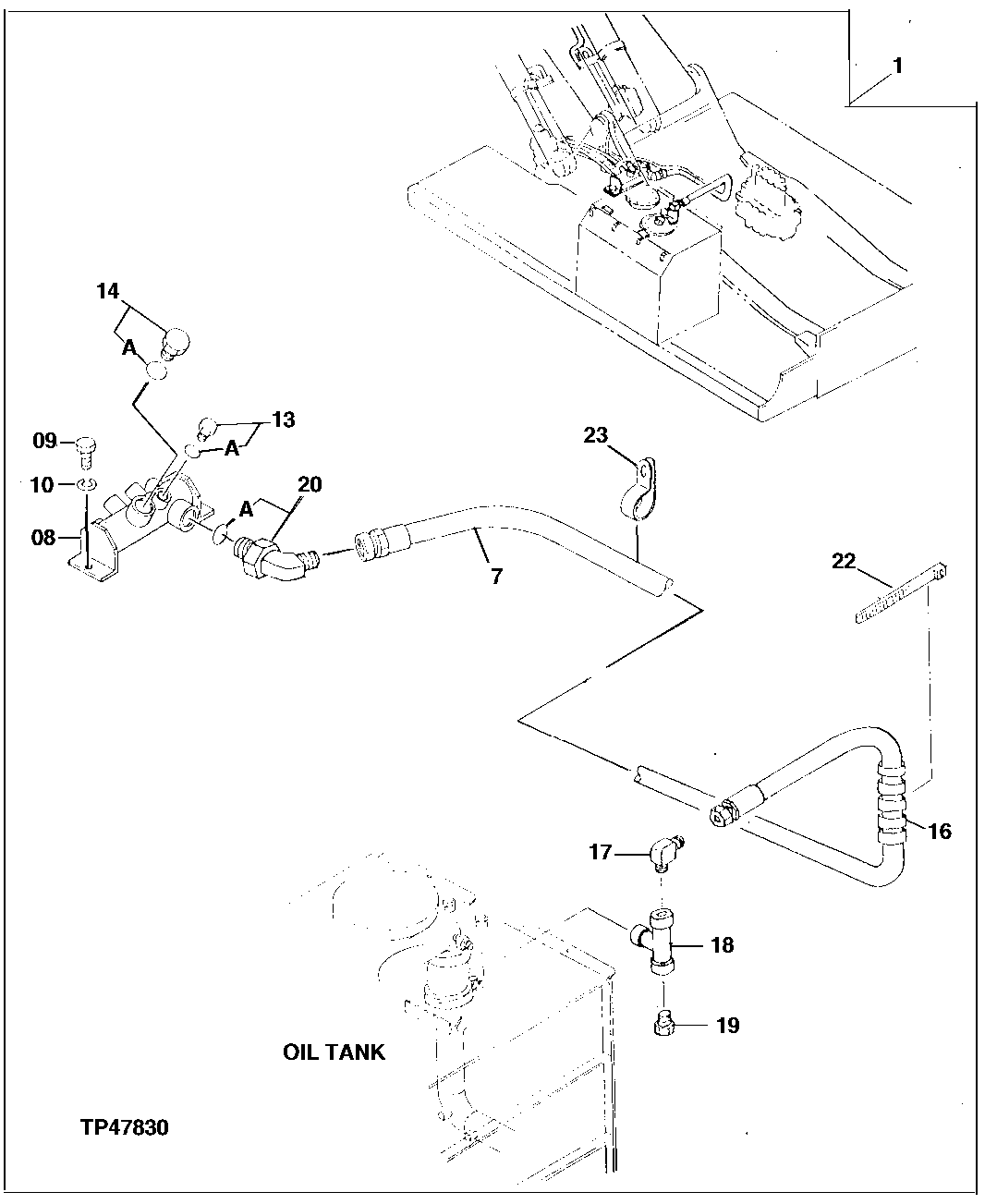

Запчасти John Deere 92ELC 306 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM

1

Kit

AT171167 NO LONGER AVAILABLE, SUB AT194999 , BOOM CYLINDER LOAD LOWERING VALVE, CONTAIN S ALL ITEMS ON THIS PAGE - ADDITIONAL COMPON ENTS LISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

7

Hydraulic Hose

4362977 NLA SUB FOR AT175138

1шт.

8

8042550

Manifold

SUB FOR AT175140

1шт.

9

19M7872

Cap Screw

M12 X 25

2шт.

10

12H301

Lock Washer

1/2"

2шт.

13

4174541

Fitting

SUB FOR TH110477

1шт.

13A

4506418

O-Ring

17.800 X 2.400 mm SUB FOR U46489

1шт.

14

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

14A

TH101926

O-Ring

28.700 X 3.500 mm

1шт.

16

Hose Guard

MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH SUB FOR AT13822 2, TH100996 NO LONGER AVAILABLE

5шт.

17

94-1406

Elbow Fitting

SUB FOR AT175142

1шт.

18

94-0665

Tee Fitting

SUB FOR AT175143

1шт.

19

94-2027

Plug

SUB FOR AT202377

1шт.

20

4317647

Elbow Fitting

SUB FOR AT175144

1шт.

20A

970860

O-Ring

37.700 X 3.500 mm SUB FOR TH104634

1шт.

22

H77698

Tie Band

5шт.

23

Clamp

4290265 NLA SUB FOR AT175906

1шт.
