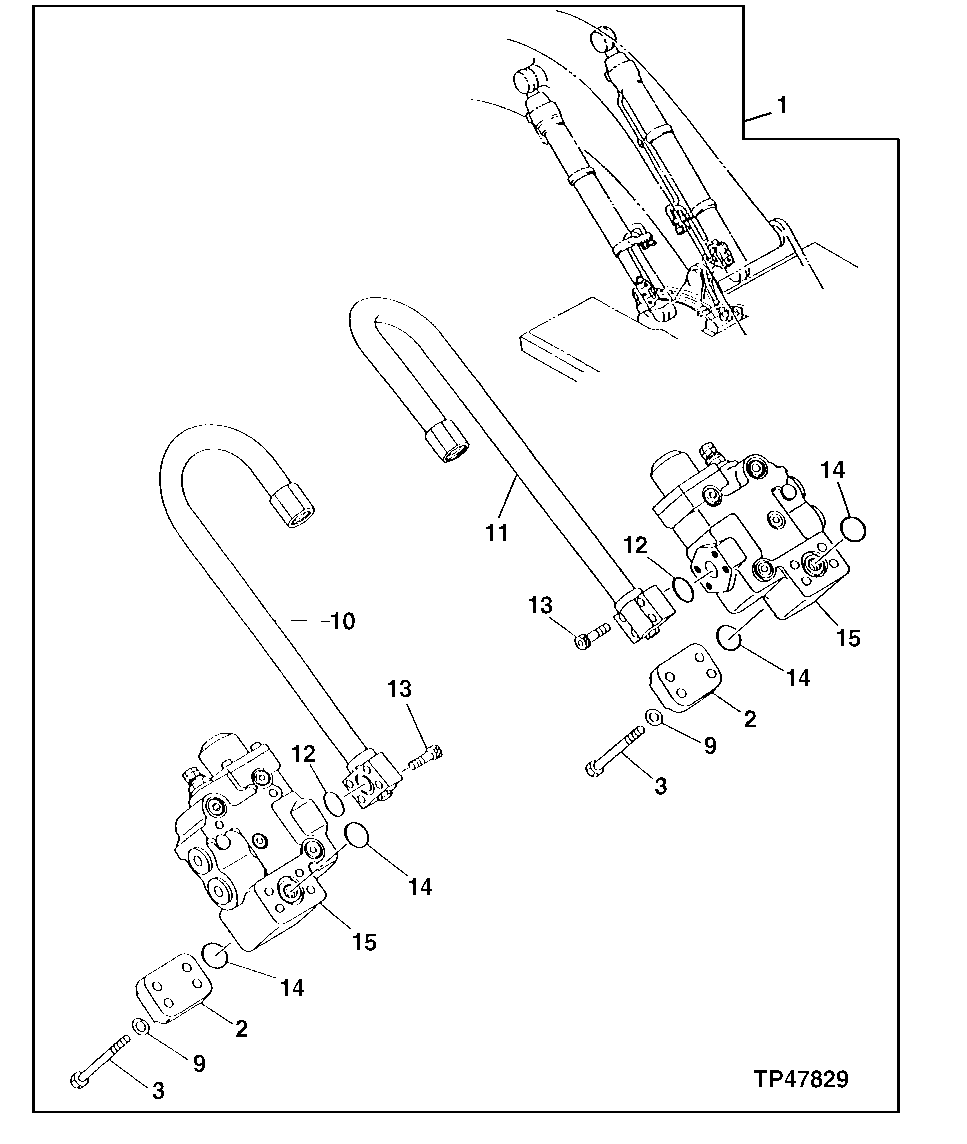

Запчасти John Deere 92ELC 305 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 HYDRAULIC SYSTEM

1

Kit

( AT171167 NO LONGER AVAILABLE, SUB AT19 4999) (BOOM CYLINDER LOAD LOWERING VALVE) (CONTAINS ALL ITEMS ON THIS PAGE - ADDIT IONAL COMPONENTS LISTED ON FOLLOWING PAGE S)

1шт.

2

3048563

Cover

(SUB FOR AT175127)

2шт.

3

M341202

Bolt

(SUB FOR AT175128)

8шт.

9

4086891

Washer

13 X 26 X 3.200 mm (SUB FOR TH104166)

8шт.

10

4241483

Oil Line

(SUB FOR AT175129)

1шт.

11

4241482

Oil Line

(SUB FOR AT175130)

1шт.

12

AT264348

O-Ring

(SUB FOR TH102788)

2шт.

13

19M8444

Screw

M12 X 60

8шт.

14

AT264324

O-Ring

(SUB FOR TH100044)

4шт.

15

4473857

Flow Control Hyd. Valve

(SUB FOR 4358534)

2шт.
