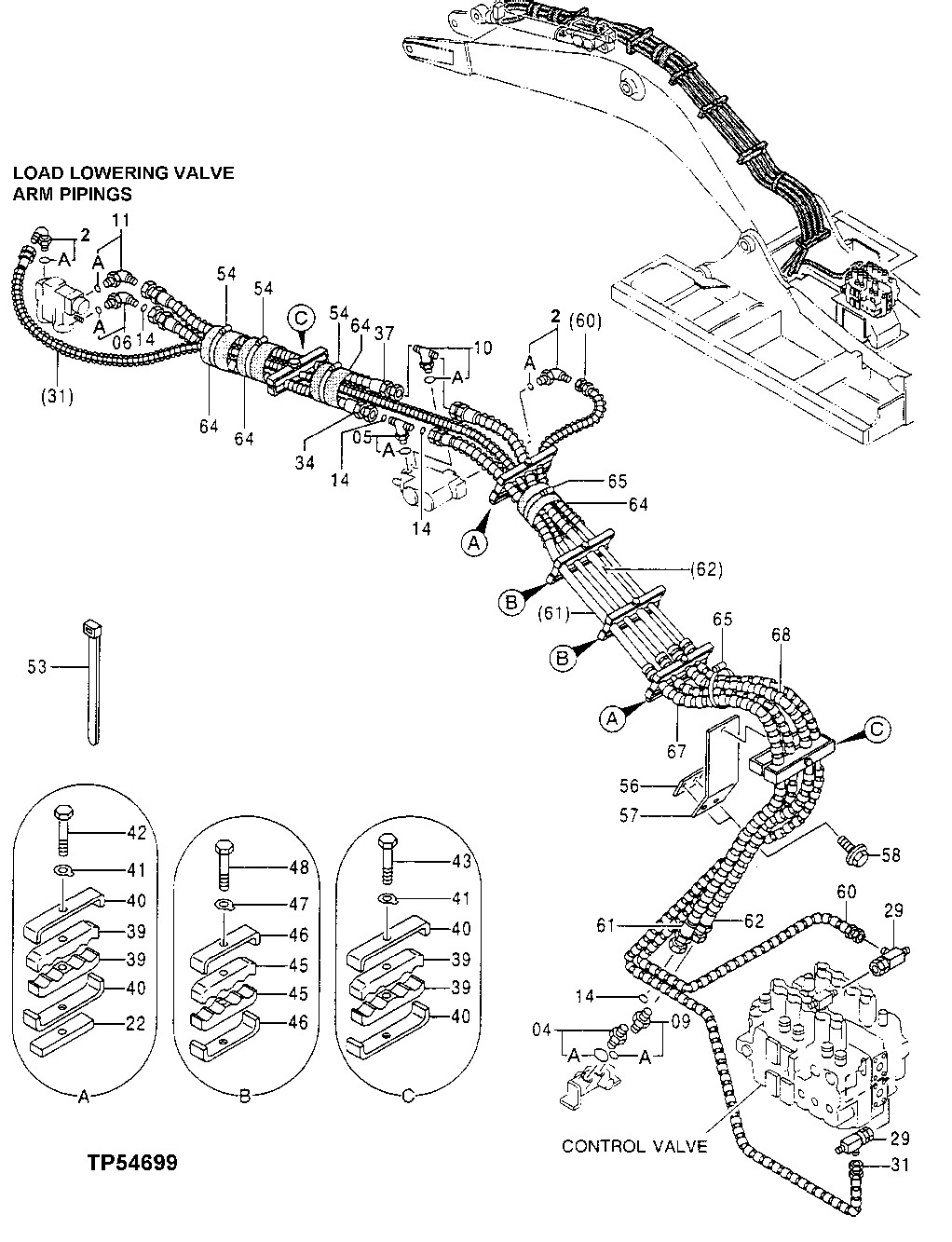

Запчасти John Deere 92ELC 302 - LOAD LOWERING VALVE ARM CYLINDER KIT 3360 HYDRAULIC SYSTEM

1

Kit

(SUB FOR AT171168)(ARM CYLINDER LOAD LOWERING)

1шт.

2

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

4

AT318016

Adapter Fitting

(SUB FOR 4189537, TH110496)

1шт.

4A

TH101926

O-Ring

28.700 X 3.500 mm

1шт.

5

4227004

Tee Fitting

(SUB FOR AT175246)

1шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

6

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

6A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

9

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

9A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

10

4251988

Tee Fitting

(SUB FOR AT175247)

1шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

11

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm

1шт.

14

T77858

O-Ring

18.771 X 1.778 mm

4шт.

22

Spacer

( AT175248 NOT AVAILABLE FOR SERVICE)

2шт.

29

4246672

Tee Fitting

(SUB FOR AT200991)

2шт.

31

4356490

Hydraulic Hose

(SUB FOR AT175249)

1шт.

34

4356518

Hydraulic Hose

(SUB FOR AT175250)

1шт.

37

4356520

Hydraulic Hose

(SUB FOR AT175251)

1шт.

39

4335756

Hose Clamp

(SUB FOR AT175252)

8шт.

40

4335755

Clamp

(SUB FOR AT175253)

8шт.

41

A590412

Washer

(SUB FOR TH101846)

4шт.

42

19M7753

Cap Screw

M12 X 70

2шт.

43

19M7364

Cap Screw

M12 X 80

2шт.

45

4321237

Hose Clamp

(SUB FOR AT175254)

4шт.

46

4287587

Clamp

(SUB FOR AT175255)

4шт.

47

A590410

Washer

(SUB FOR AT175256)

2шт.

48

19M8081

Cap Screw

M10 X 80

2шт.

53

H77698

Tie Band

7шт.

54

TY22486

Hose Clamp

(SUB FOR AT175257 OR 4351924)

3шт.

56

4238980

Strap

(SUB FOR AT175258)

1шт.

57

4356570

Bracket

(SUB FOR AT175263)

1шт.

58

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

60

4357900

Hydraulic Hose

(SUB FOR AT175264)

1шт.

61

4357950

Hydraulic Hose

(SUB FOR AT175265)

1шт.

62

4357951

Hydraulic Hose

(SUB FOR AT175266)

1шт.

64

4155962

Isolator

400 mm (SUB FOR AT131714)

4шт.

65

TY22485

Hose Clamp

(SUB FOR AT175267 OR 4351923)

2шт.

67

4358014

Structural Tube

(SUB FOR AT175268)

1шт.

68

4358013

Structural Tube

(SUB FOR AT175269)

1шт.
