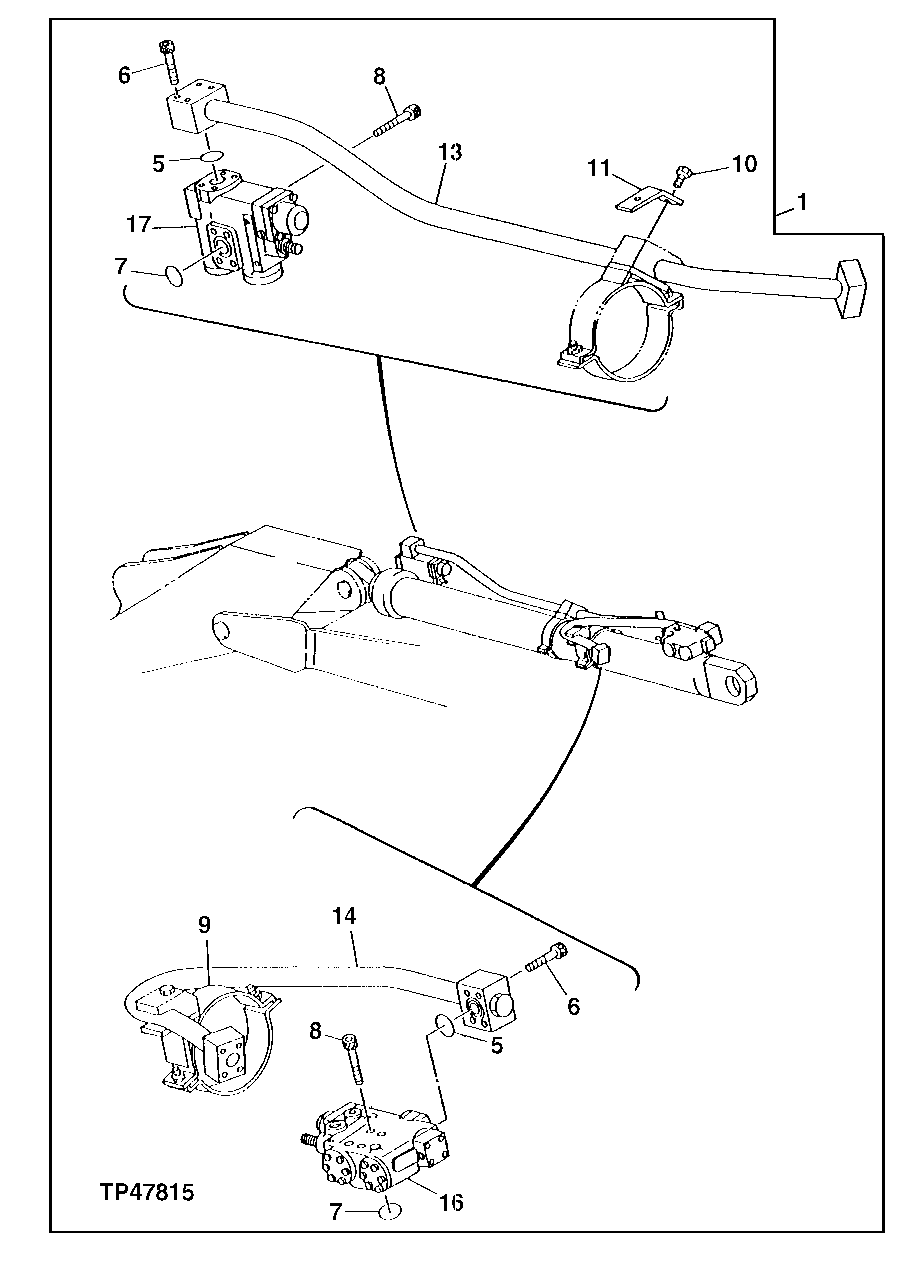

Запчасти John Deere 92ELC 301 - LOAD LOWERING VALVE ARM CYLINDER KIT 3360 HYDRAULIC SYSTEM

1

Kit

(SUB FOR AT171168)(ARM CYLINDER LOAD LOWERING)

1шт.

5

AT264254

O-Ring

(SUB FOR AT132423, 955612)

2шт.

6

19M8734

Screw

M14 X 45 (ORDER WITH LI NES 4623478 OR 4623480)

8шт.

19M8803

Screw

M14 X 90 (ORDER WITH LI NES 4354831 OR 4355450)

8шт.

7

A811045R

O-Ring

(SUB FOR T74492 OR A811045)

2шт.

8

M341400

Screw

(SUB FOR TH100038)

8шт.

9

4245096

Clamp

(SUB FOR AT175240)

1шт.

10

19M7291

Cap Screw

M14 X 90

1шт.

11

4253321

Bracket

(SUB FOR AT175241)

1шт.

13

4623478

Line

(ALSO ORDER (4) 19M8734 ) ( SUB FOR AT175242 OR 4354831)

1шт.

14

4623480

Line

(ALSO ORDER (4) 19M8734 ) ( SUB FOR AT175243 OR 4355450)

1шт.

16

4473861

Flow Control Hyd. Valve

(SUB FOR 4358533)

1шт.

17

4358535

Valve

(SUB FOR AT175245)

1шт.
