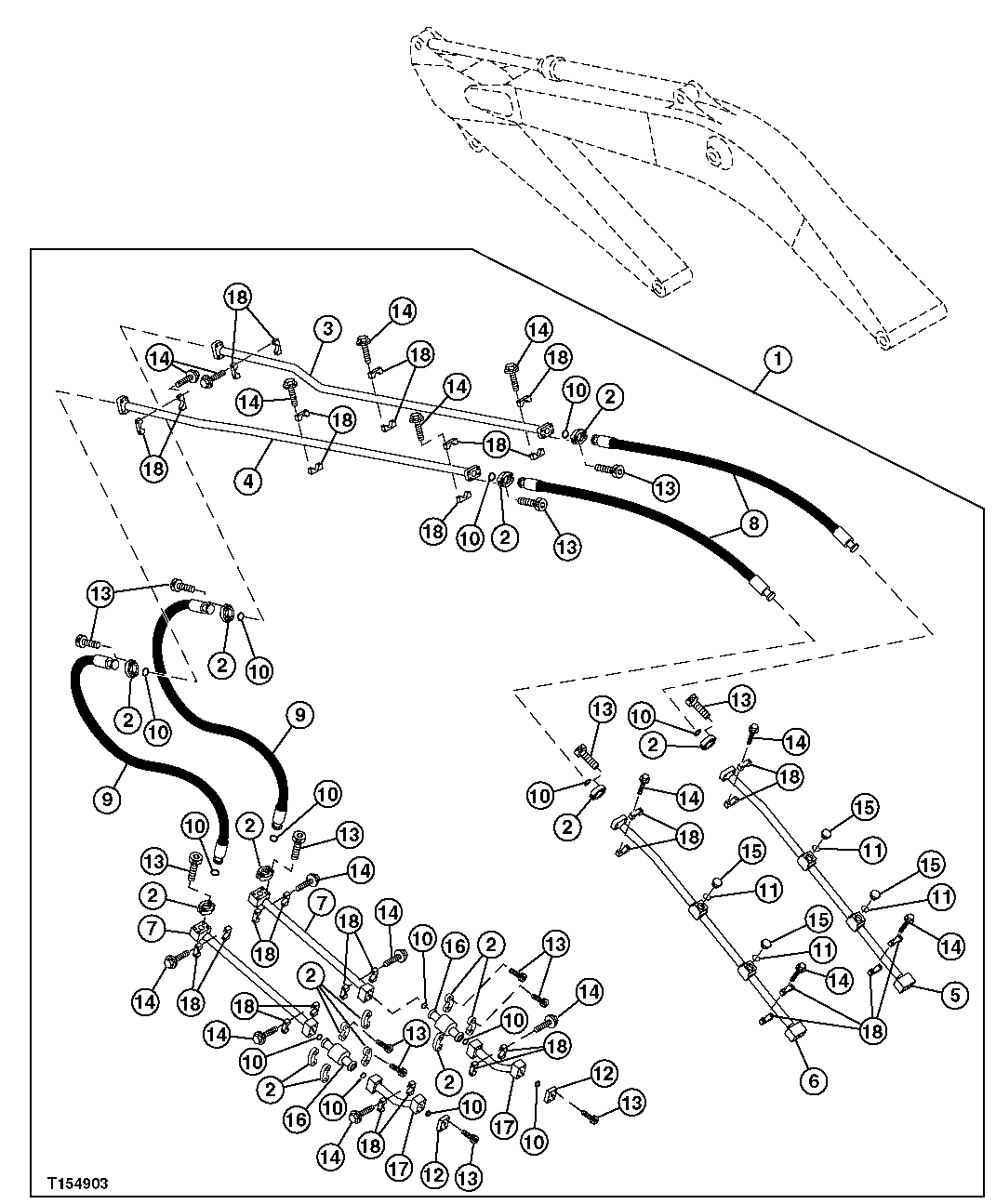

Запчасти John Deere 92ELC 300 - AUXILIARY HYDRAULIC LINES (CONTINUED) 3360 HYDRAULIC SYSTEM

1

Field Installation Kit

(WHOLE GOODS) ( AT195681 NLA) (SUB FOR AT169919 (AUXILIARY ASSEMBLY) (CONTAINS ALL ITEMS LISTED ON THIS PAGE - ADDITION AL COMPONENTS LISTED ON PREVIOUS PAGE))

1шт.

2

AT131685

Flange Fitting

24шт.

3

AT169920

Oil Line

(BOOM, RH AUXILIARY)

1шт.

4

AT169921

Oil Line

(BOOM, LH AUXILIARY)

1шт.

5

AT169922

Oil Line

(BOOM REAR AUXILIARY, RH)

1шт.

6

AT172488

Oil Line

(BOOM REAR AUXILIARY, LH)

1шт.

7

AT169923

Oil Line

(ARM AUXILIARY)

2шт.

8

AT169990

Hydraulic Hose

(BOOM KNEE)

2шт.

9

AT169991

Hydraulic Hose

(BOOM TO ARM)

2шт.

10

T72216

O-Ring

14шт.

11

T76938

O-Ring

4шт.

12

T153655

Plug

2шт.

13

19M7393

Cap Screw

M14 X 50

44шт.

14

19M7818

Screw

M12 X 80

36шт.

15

38H1419

Fitting

4шт.

16

AT195936

Ball Cock Valve

2шт.

17

AT196315

Oil Line

2шт.

18

AT201796

Clamp

32шт.
