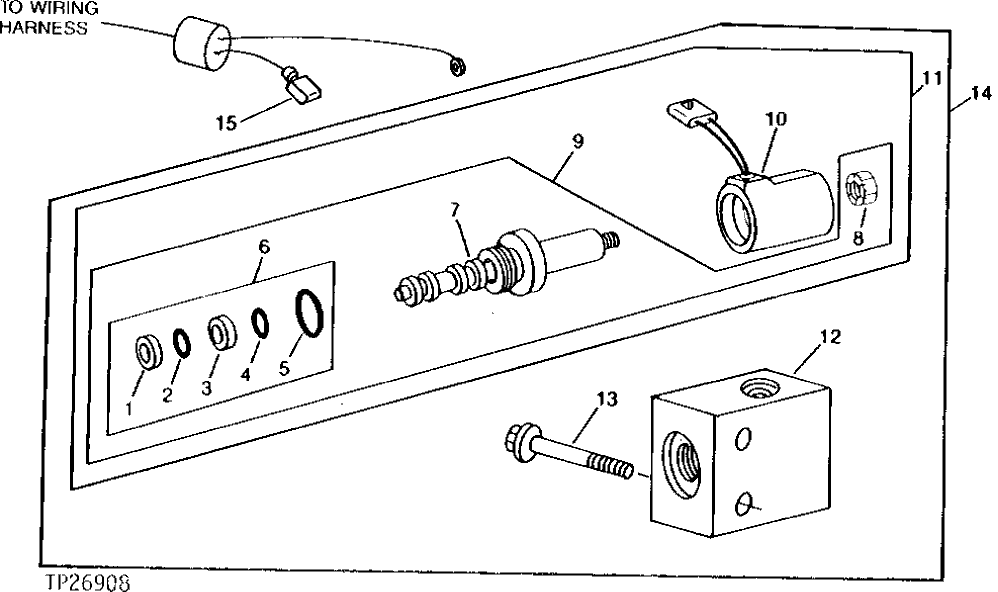

Запчасти John Deere 92ELC 297 - Low Speed Solenoid Valve 3360 HYDRAULIC SYSTEM

1

R42926

Back-Up Ring

13.157 X 15.850 X 1.143 mm

1шт.

2

T40308

O-Ring

12.421 X 1.778 mm

1шт.

3

R45187

Back-Up Ring

16.332 X 19.025 X 1.143 mm

1шт.

4

R45638

O-Ring

15.596 X 1.778 mm

1шт.

5

U12547

O-Ring

23.470 X 2.946 mm

1шт.

6

R42926

Back-Up Ring

13.157 X 15.850 X 1.14 3 mm (SUB FOR AT66730)

1шт.

7

Solenoid Valve

1шт.

8

M63707

Lock Nut

6.350 mm

1шт.

9

Solenoid Valve

(FURNISH RE21872)

1шт.

10

RE24904

Electrical Coil

1шт.

11

AT115457

Solenoid Valve

1шт.

12

Housing

( T107202 NOT AVAILABLE FOR SERVICE)

1шт.

13

19M7808

Screw

M10 X 65

2шт.

14

AT306723

Elec.Proportional Valve

(SUB FOR AT116486 AND AT140041)

1шт.

Electrical Coil

( AT140041 NO LONGER AV AILABLE - SUB AT306723)

1шт.

15

Wiring Harness

(AT66692 NO LONGER REQUIRED)

1шт.
