294 - Electric Foot Switch For Auxiliary Control (One Solenoid)

Запчасти John Deere 92ELC 294 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 HYDRAULIC SYSTEM

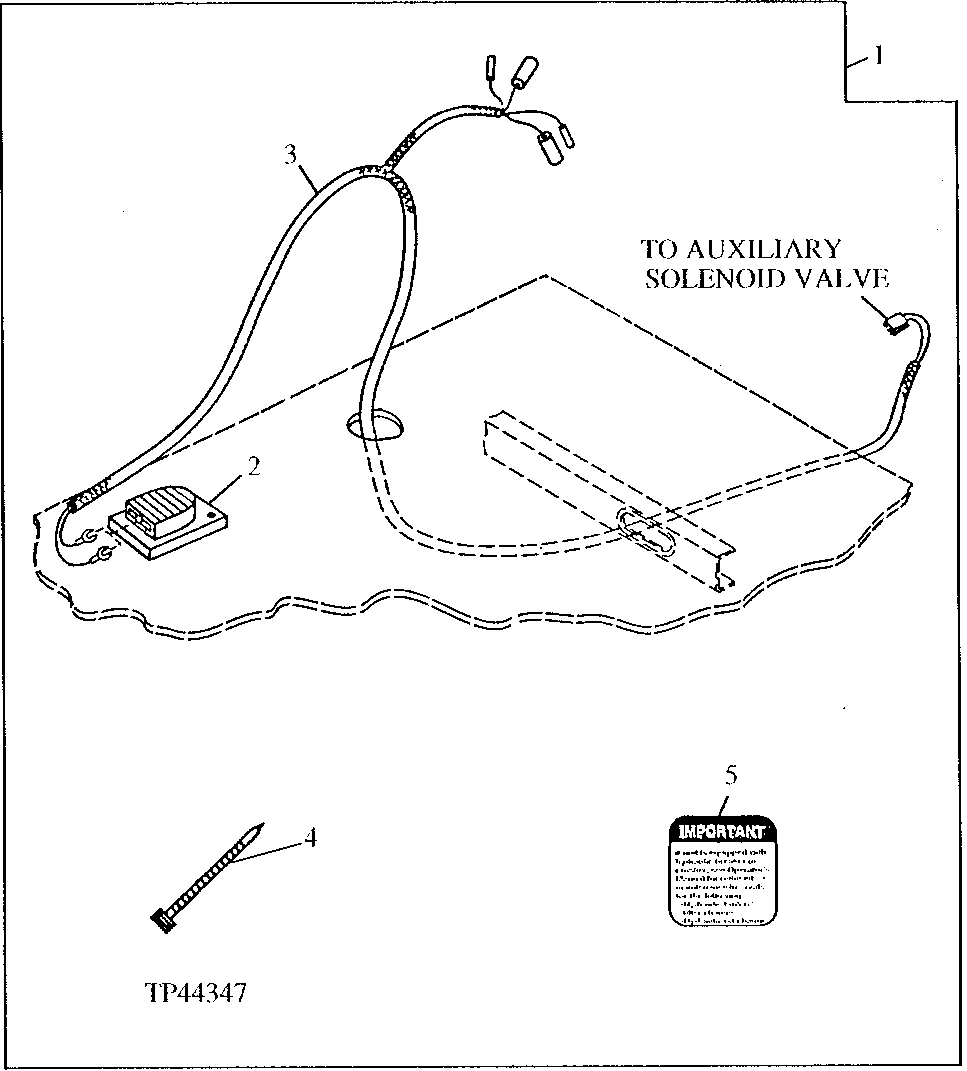

Схема запчастей John Deere 92ELC - 294 - Electric Foot Switch For Auxiliary Control (One Solenoid) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Switch

WHOLE GOODS (ELECTRIC FOOT SWITCH FOR AU XILIARY VALVE) (USE WITH AT195713 ONE WAY ELECTRIC SOLENOID VALVE) ( AT164896 NLA)

1шт.

2

AT82210

Switch

(ELECTRIC FOOT CONTROL)

1шт.

3

AT161183

Wiring Harness

1шт.

4

R44302

Tie Band

(USE AS REQUIRED)

2шт.

5

T149434

Label

(IMPORTANT - AUXILIARY ELECTRIC CONTROL)

1шт.
