Запчасти John Deere 92ELC 288 - Arm Cylinder 3360 HYDRAULIC SYSTEM

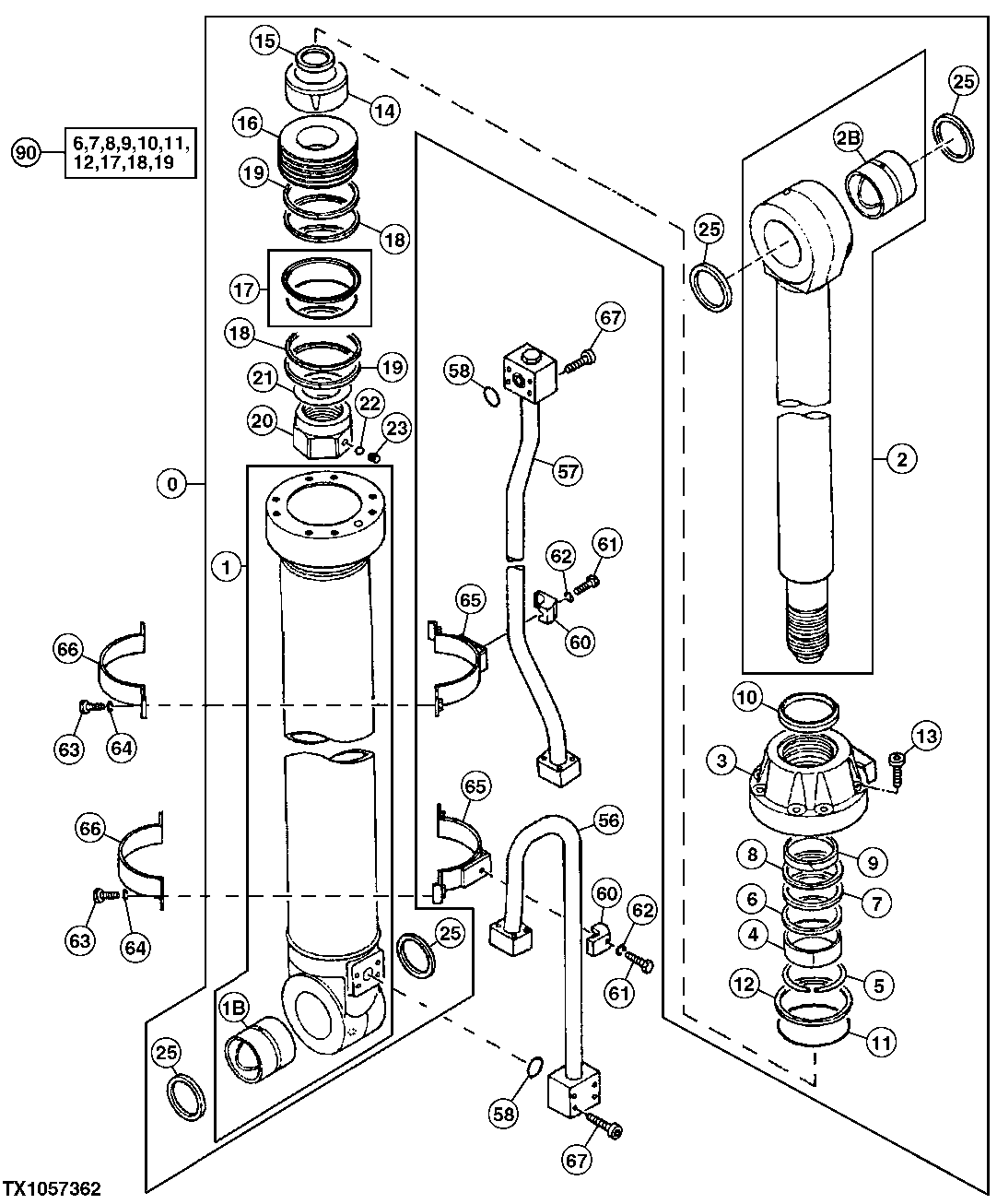

Схема запчастей John Deere 92ELC - 288 - Arm Cylinder 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4340512JEX

Hydraulic Cylinder Reman

REMAN; SUB FOR AT201823

1шт.

1

0420301

Hydraulic Cylinder Barrel

SUB FOR AT201580

1шт.

Cylinder Reman

PG201232 NLA, ORDER 0420301, REMAN

1шт.

1B

4660855

Bushing

SUB FOR AT202246 OR 0420102

1шт.

2

0420302

Rod

SUB FOR AT201581

1шт.

2B

4660855

Bushing

SUB FOR AT202246 OR 0420102

1шт.

3

0420303

Cylinder Head

SUB FOR AT201582

1шт.

4

AT264250

Bushing

SUB FOR AT132313 OR 0353004

1шт.

5

0133709

Snap Ring

SUB FOR TH104999

1шт.

6

AT264251

Ring

SUB FOR 0941506, AT132 314, 0353005 OR 4S00045

1шт.

7

AT264242

Seal

SUB FOR AT132164 OR 4S00037

1шт.

8

AT264246

Back-Up Ring

SUB FOR AT132173 OR 4S00038

1шт.

9

0417605

Ring

SUB FOR 4S00145, AT204901 OR AT132315

1шт.

10

AT264282

Ring

SUB FOR AT132174, AT191199 OR 4437982

1шт.

11

AT264241

O-Ring

SUB FOR AT132155 OR A811180

1шт.

12

AT264243

Back-Up Ring

SUB FOR AT132168 OR 4S00079

1шт.

13

4104472

Bolt

SUB FOR AT132322

8шт.

14

0420304

Bearing

SUB FOR AT201583

1шт.

15

0420310

Seal

SUB FOR 4S00940

1шт.

16

0420306

Piston

SUB FOR AT201585

1шт.

17

T201905

Seal

SUB FOR 4S00081 OR AT132169

1шт.

18

AT264290

Ring

SUB FOR AT201586

2шт.

19

AT264245

Wear Ring

SUB FOR AT132170

2шт.

20

0353009

Nut

SUB FOR AT132318

1шт.

21

0353010

Shim

SUB FOR AT132319

1шт.

22

0353011

Ball

SUB FOR AT132320

1шт.

23

0353012

Set Screw

SUB FOR AT132321

1шт.

25

AT201578

Ring

4шт.

56

4S00352J

Oil Line

SUB FOR 4S00352

1шт.

57

0420311J

Oil Line

SUB FOR AT201980, 0420309 OR 0420311

1шт.

58

AT264254

O-Ring

SUB FOR AT132423 OR 955612

2шт.

60

0972307

Clamp

SUB FOR AT132325, 0353016 OR 0353016J

2шт.

61

19M4789

Cap Screw

M14 X 80

2шт.

62

12H317

Lock Washer

9/16"

2шт.

63

19M7550

Cap Screw

M10 X 35 SUB FOR AT153924

4шт.

64

12M7066

Lock Washer

10 mm

4шт.

65

0353017

Band

SUB FOR AT132326

2шт.

66

0353018J

Half Clamp

SUB FOR 0353018 OR AT132327

2шт.

67

19M8803

Screw

M14 X 90 SUB FOR AT132328

8шт.

90

AT302758

Seal Kit

SUB FOR AT264434

1шт.

91

4700430

Seal Kit

SUB FOR (1) 4438679; INCLUDES AT2642 51, AT264242, AT264246, AT264282, AT264241, AT264243, 0420310 AND T 201905, NOT ILLUSTRATED, 4S00956 NLA

1шт.

Выбрано товаров: 41
