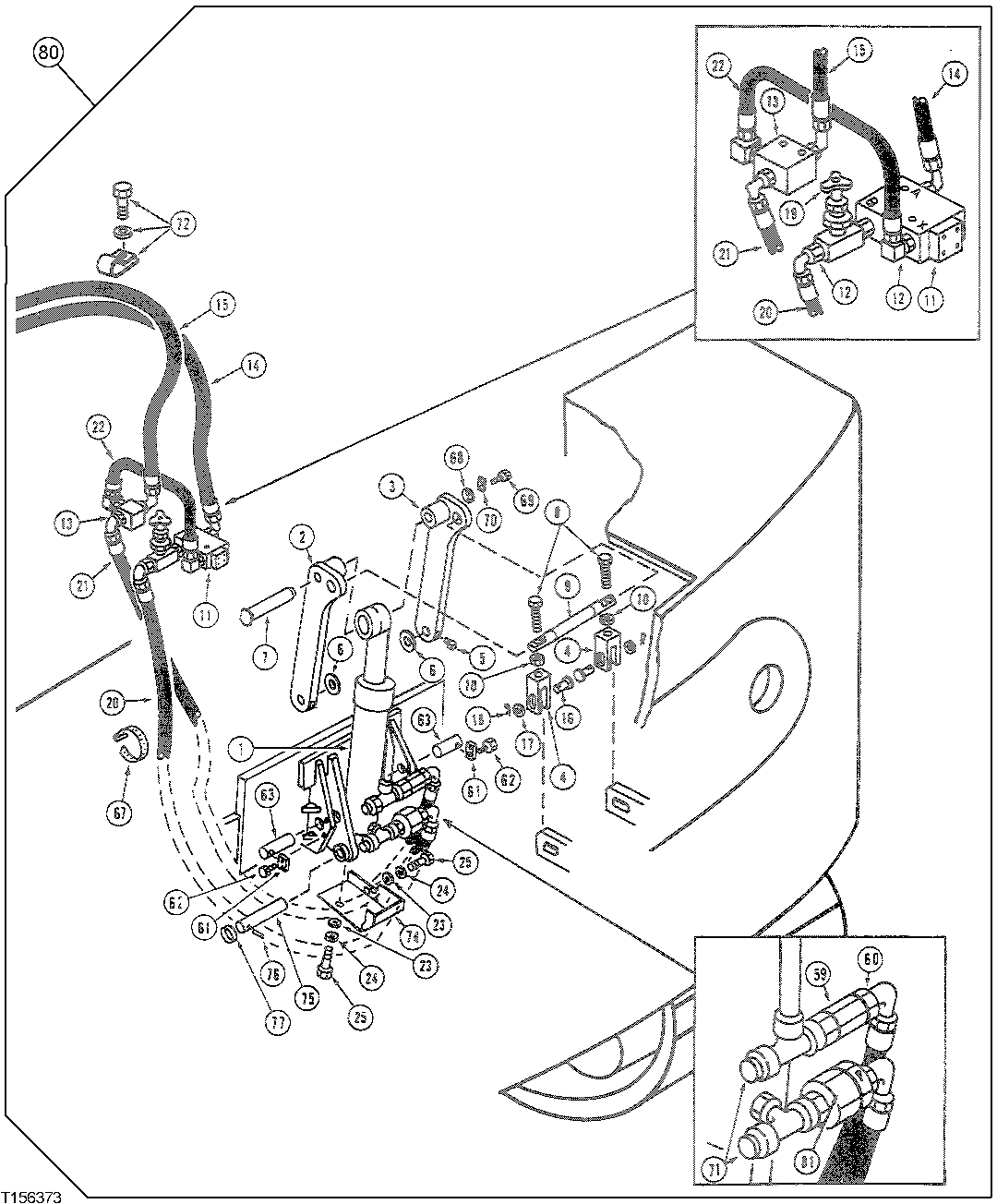

Запчасти John Deere 92ELC 285 - COUNTERWEIGHT REMOVAL KIT AND COMPONENTS (CONTINUED) 3360 HYDRAULIC SYSTEM

59

3071216

Adapter Fitting

(SUB FOR AT170143)

1шт.

4131346

Spacer

(SUB FOR AT132491)

2шт.

60

T77857

O-Ring

1шт.

61

4274178

Elbow Fitting

(SUB FOR AT170146)

1шт.

4063340

Strap

(SUB FOR AT132480)

1шт.

T77857

O-Ring

1шт.

62

M341632

Bolt

(SUB FOR AT132460)

1шт.

4131346

Spacer

(SUB FOR AT132491)

1шт.

63

4337837

Pin

(SUB FOR AT170128)

2шт.

68

AD4112

Retainer

(SUB FOR AT170134, 492067 OR Z492067)

1шт.

69

19M8017

Cap Screw

M12 X 20

2шт.

70

442687

Strap

(SUB FOR TH103546)

1шт.

71

94-2024

Fitting Plug

(SUB FOR TH101292)

2шт.

72

12M7068

Lock Washer

14 mm

1шт.

74

8065783

Guard

1шт.

75

4337843

Pin

(SUB FOR AT170129)

1шт.

76

4186695

Pin

1шт.

77

TH101624

Kit

1шт.

79

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

80

AT196481

Kit

(SUB FOR AT169021)(WHOLEGOODS) (COUNTERWEIGHT REMOVAL) (ADDITIO NAL COMPONENTS ON PREVIOUS PAGE)

1шт.

81

4221984

Valve

(SUB FOR 4146466)

1шт.

4339469

Adapter Fitting

(SUB FOR AT170144)

1шт.
