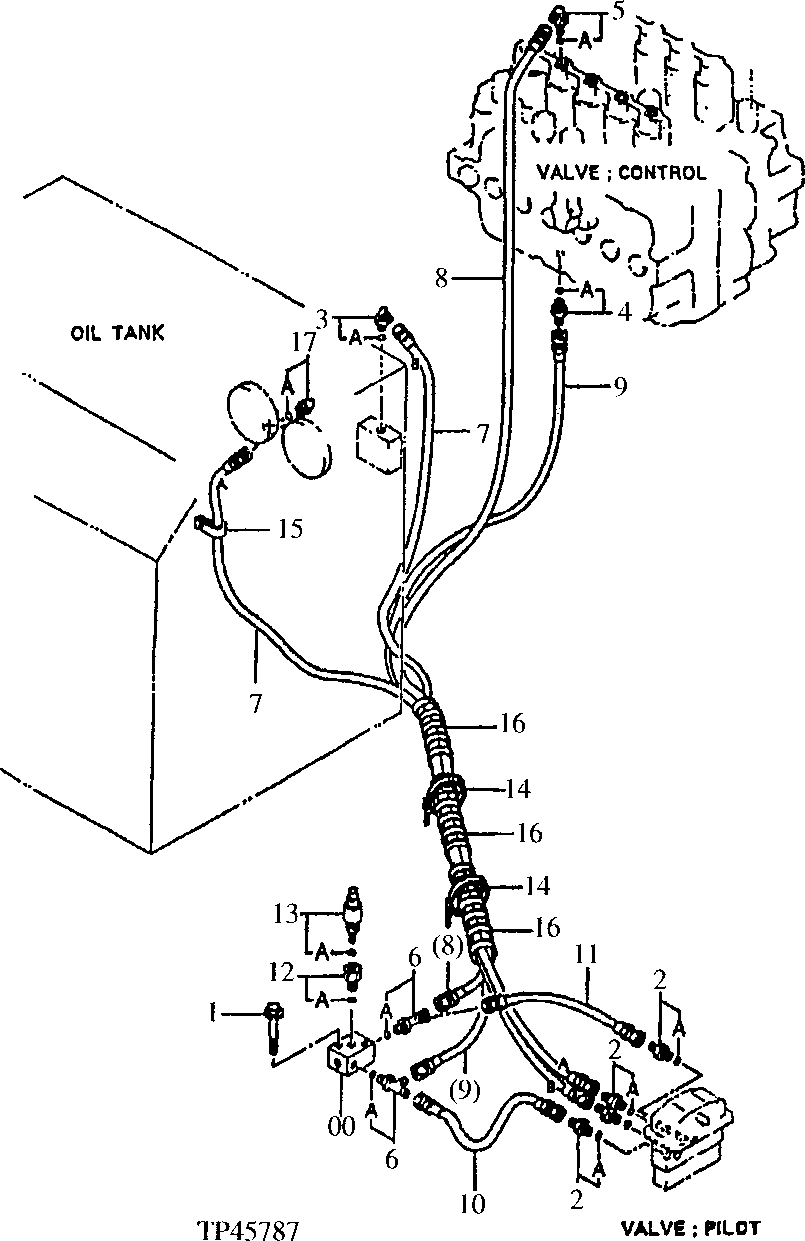

Запчасти John Deere 92ELC 282 - COUNTERWEIGHT REMOVAL PILOT PIPINGS 3360 HYDRAULIC SYSTEM

0

4195759

Flow Control Hyd. Valve

(SUB FOR AT132401)

1шт.

1

19M8655

Cap Screw

2шт.

12M7066

Lock Washer

2шт.

2

4200467

Adapter Fitting

(SUB FOR TH108417)

4шт.

2A

M800650

Packing

1шт.

3

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

3A

M800650

Packing

1шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

4A

CH11570

O-Ring

1шт.

5

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

5A

CH11570

O-Ring

1шт.

6

4207300

Tee Fitting

(SUB FOR AT126381)

2шт.

6A

M800650

Packing

1шт.

7

4373639

Hydraulic Hose

(SUB FOR AT170155 OR 4258889)

2шт.

8

4305130

Hydraulic Hose

(SUB FOR AT170156)

1шт.

9

4234397

Hydraulic Hose

(SUB FOR AT170157)

1шт.

10

4290170

Hydraulic Hose

(SUB FOR AT170158)

1шт.

11

AT37543

Hydraulic Hose

1шт.

12

4339737

Reducer

(SUB FOR AT170159)

1шт.

12A

M800650

Packing

1шт.

13

4254563

Pressure Switch

(SUB FOR AT154212)

1шт.

13A

CH19111

O-Ring

1шт.

14

H77698

Tie Band

2шт.

15

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

1шт.

16

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

3шт.

17

4241385

Elbow Fitting

(SUB FOR AT170160)

1шт.

17A

CH11570

O-Ring

1шт.

20

Counterweight

( AT169021 NO LONGER AVAILABLE, SUB AT1964 81) WHOLEGOODS (REMOVAL SYSTEM) (NOT ILLUS TRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES )

1шт.
