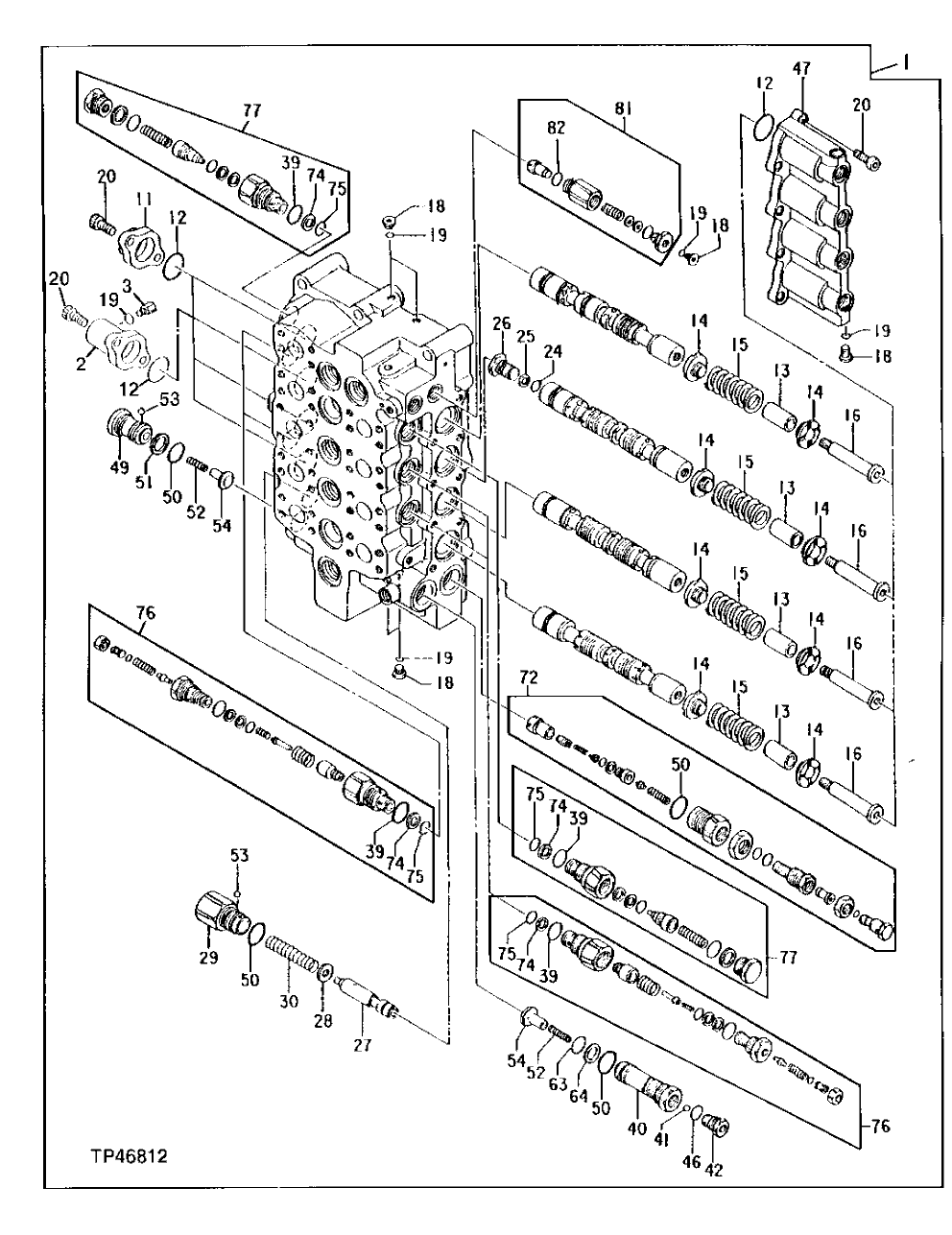

Запчасти John Deere 92ELC 276 - Control Valve 3360 HYDRAULIC SYSTEM

1

4355305

Hyd Actuated Control Valve

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENETS LI STED ON PREVIOUS AND FOLLOWING PAGES) ( SUB FOR AT201790, AT186752 AND 4355305E X)

1шт.

2

0622876

Cover

(SUB FOR AT172703)

1шт.

3

0622875

Plug

(SUB FOR AT172702)

1шт.

11

0622803

Cover

(SUB FOR AT201987)

3шт.

12

4073426

O-Ring

(SUB FOR AT201988 ) (SUB FOR TH103131)

8шт.

13

0622805

Sleeve

(SUB FOR AT201989)

4шт.

14

0622806

Guide

(SUB FOR AT201990)

8шт.

15

0622807

Spring

(SUB FOR AT201991)

4шт.

16

0622808

Cap

(SUB FOR AT201992)

4шт.

18

0622810

Cap

(SUB FOR AT201994)

6шт.

19

M800650

Packing

7шт.

20

19M8169

Screw

M12 X 30

16шт.

24

CH10568

Packing

1шт.

25

4S01078

Back-Up Ring

(SUB FOR 4027963)

1шт.

26

0622877

Cap (Hat)

(SUB FOR AT172704)

1шт.

27

0622815

Spool

(SUB FOR AT201999)

1шт.

28

0622816

Spacer

(SUB FOR AT202000)

1шт.

29

0622817

Cap

(SUB FOR AT202001)

1шт.

30

0622818

Spring

(SUB FOR AT202002)

1шт.

39

4366528

O-Ring

(SUB FOR 4153108 ) (SUB FOR 0818007, THIS APPLICATION)

6шт.

40

0622872

Cap

(SUB FOR AT202056)

1шт.

41

0622873

Ball

(SUB FOR AT202057)

1шт.

42

0622871

Seat

(SUB FOR AT202055)

1шт.

46

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

47

0622823

Cover

(SUB FOR AT202007)

1шт.

49

0622825

Cap

(SUB FOR AT202009)

1шт.

50

4088425

O-Ring

(SUB FOR AT202080)

4шт.

51

0223104

Back-Up Ring

(SUB FOR AT202010)

1шт.

52

0622827

Spring

(SUB FOR AT202011)

2шт.

53

0622828

Plug

(SUB FOR AT202012)

2шт.

54

0622829

Check Valve

(SUB FOR AT202013)

2шт.

63

966689

O-Ring

24.700 X 3.500 mm (SUB FOR TH108142)

1шт.

64

4113187

Back-Up Ring

25 X 31 X 1.250 mm (SUB FOR AT131692)

1шт.

72

0655702

Relief Valve

MAIN (SUB FOR AT202023 ) (SUB FOR AT177524)

1шт.

74

4027959

Back-Up Ring

(SUB FOR TH100771)

6шт.

75

4355080

O-Ring

(SUB FOR AT202086 ) (SUB FOR 415 3099, OR 0818011THIS APPLICATION)

6шт.

76

0622841

Relief Valve

ASSEMBLY (BOOM AND BUCKET C IRCUITS) (SUB FOR AT202025)

4шт.

77

0622843

Spool Valve

MAKEUP ASSEMBLY (SUB FOR AT202027)

2шт.

81

0646202

Relief Valve

FOOT (SUB FOR AT202031)

1шт.

82

985099

O-Ring

20.800 X 2.400 mm (SUB FOR TH101479)

1шт.
