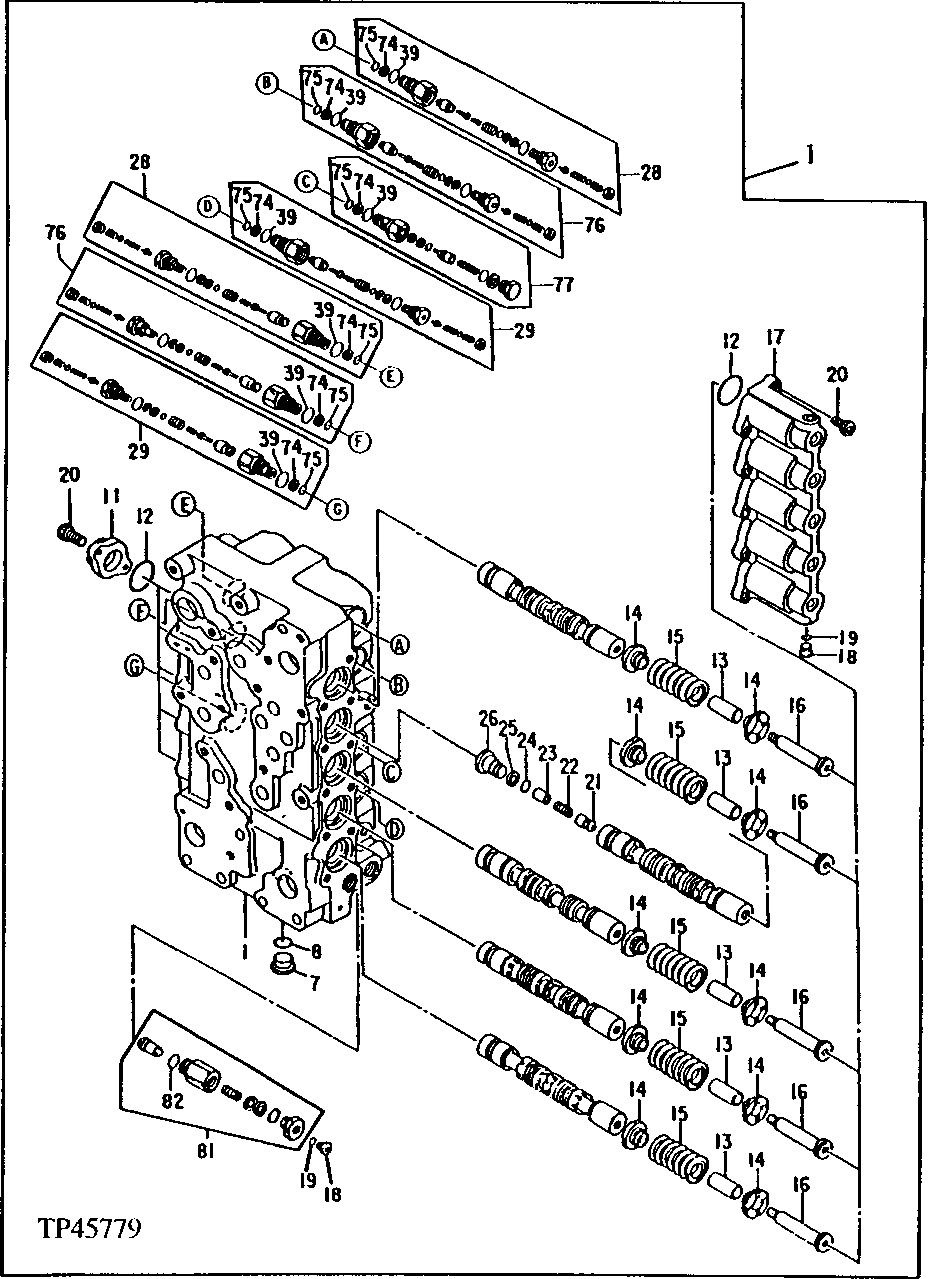

Запчасти John Deere 92ELC 275 - Control Valve 3360 HYDRAULIC SYSTEM

1

4355305

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENETS LISTED ON PR EVIOUS AND FOLLOWING PAGES) (SUB FO R AT201790, AT186752 AND 4355305EX)

1шт.

7

0622801

Cap

(SUB FOR AT201985)

1шт.

8

0212416

O-Ring

(SUB FOR TH100198)

1шт.

11

0622803

Cover

(SUB FOR AT201987)

5шт.

12

4073426

O-Ring

(SUB FOR AT201988 ) (SUB FOR TH103131)

10шт.

13

0622805

Sleeve

(SUB FOR AT201989)

5шт.

14

0622806

Guide

(SUB FOR AT201990)

10шт.

15

0622807

Spring

(SUB FOR AT201991)

5шт.

16

0622808

Cap

(SUB FOR AT201992)

5шт.

17

0622809

Cover

(SUB FOR AT201993)

1шт.

18

0622810

Cap

(SUB FOR AT201994)

2шт.

19

M800650

Packing

2шт.

20

19M8167

Cap Screw

M20 X 320

20шт.

21

0622811

Check Valve

(SUB FOR AT201995)

1шт.

22

0622812

Spring

(SUB FOR AT201996)

1шт.

23

0622813

Spacer

(SUB FOR AT201997)

1шт.

24

4506416

O-Ring

15.800 X 2.400 mm (SUB FOR TH102561)

1шт.

25

4085607

Back-Up Ring

(SUB FOR TH102562)

1шт.

26

0622814

Cap

(SUB FOR AT201998)

1шт.

28

0622842

Pressure Relief Valve

(SUB FOR AT202026)(SWING CIRCUIT)

2шт.

29

0635601

Pressure Relief Valve

(SUB FOR AT204913)(AUXILIARY CIRCUIT)

2шт.

39

4366528

O-Ring

(SUB FOR 4153108 ) (SUB FOR 0818007, THIS APPLICATION)

7шт.

74

4027959

Back-Up Ring

(SUB FOR TH100771)

7шт.

75

4355080

O-Ring

(SUB FOR AT202086 ) (SUB FOR 415 3099, OR 0818011THIS APPLICATION)

7шт.

76

0622841

Pressure Relief Valve

(SUB FOR AT202025)(ARM CIRCUIT)

2шт.

77

0622843

Flow Control Hyd. Valve

(SUB FOR AT202027)

1шт.

81

0646202

Pressure Relief Valve

(SUB FOR AT202031)

1шт.

82

985099

O-Ring

20.800 X 2.400 mm (SUB FOR TH101479)

1шт.
