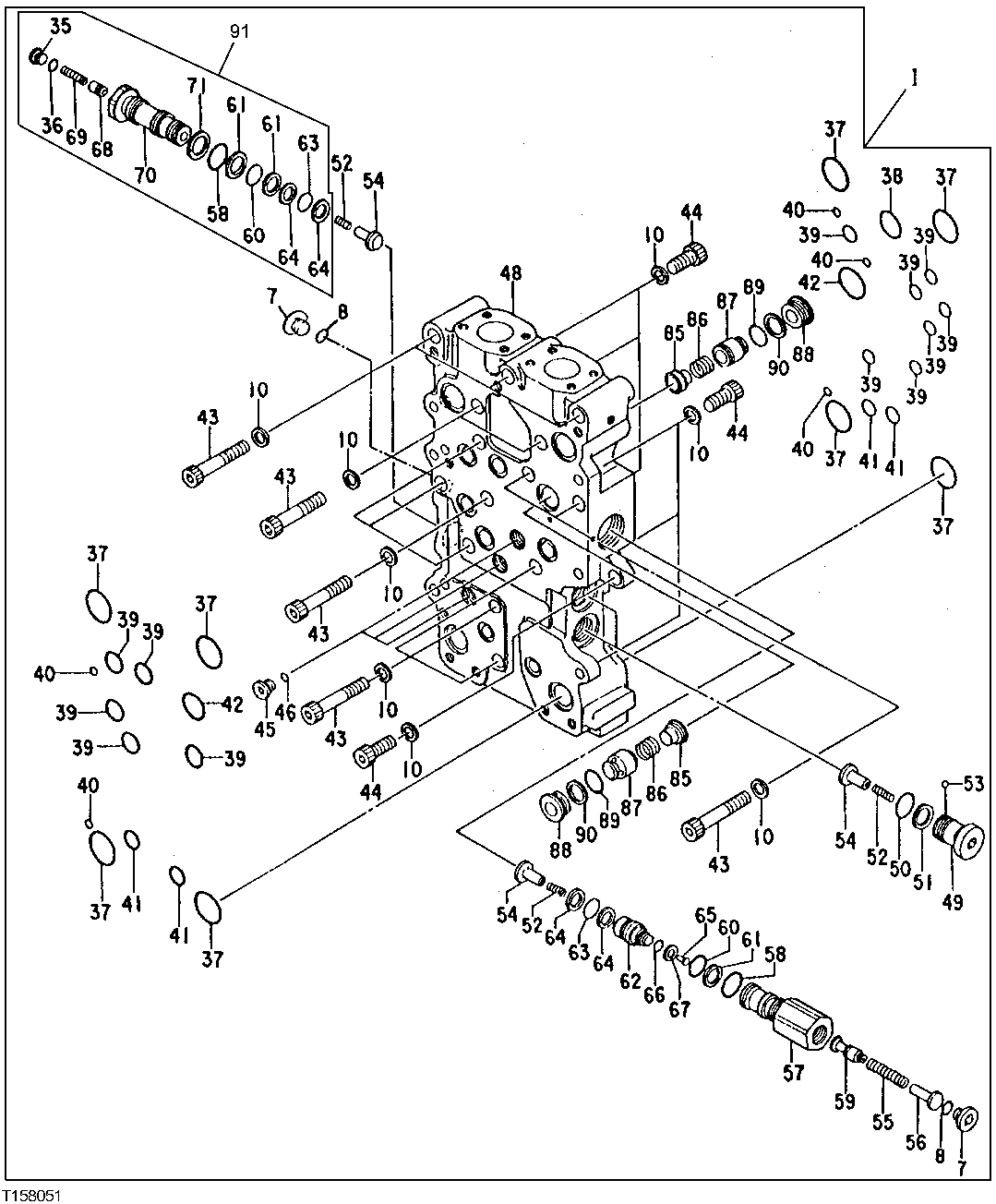

Запчасти John Deere 92ELC 274 - Control Valve 3360 HYDRAULIC SYSTEM

1

4355305

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PRE VIOUS AND FOLLOWING PAGES) (SUB FOR AT201790, AT186752 AND 4355305EX)

1шт.

7

0622801

Cap

(SUB FOR AT201985)

1шт.

8

0212416

O-Ring

(SUB FOR TH100198)

1шт.

10

0622802

Washer

(SUB FOR AT201986)

21шт.

35

0622819

Cap

(SUB FOR AT202003)

1шт.

36

CH11570

O-Ring

1шт.

37

4292386

O-Ring

(SUB FOR AT202090 ) (SUB FOR 4153535, THIS APPLIC OR 0818203ATION, 0818006)

8шт.

38

T78313

O-Ring

32.920 X 3.530 mm (SUB FOR AT202004)

1шт.

39

4366528

O-Ring

(SUB FOR 4153108 ) (SUB FOR 0818007, THIS APPLICATION)

12шт.

40

4366519

O-Ring

(SUB FOR AT202085 ) (SUB FOR 4153089, THIS APPLICATION ) (SUB FOR 0818012)

5шт.

41

T59014

O-Ring

24.994 X 3.531 mm (SUB FOR AT202005)

4шт.

42

4292942

O-Ring

(SUB FOR AT202089 ) (SUB FOR 4153534, THIS APPLIC OR 0818205ATION, 0818010)

2шт.

43

19M8342

Screw

M16 X 90

14шт.

44

19M8490

Screw

M16 X 40

7шт.

45

0622822

Cap

(SUB FOR AT202006)

3шт.

46

4366521

O-Ring

(SUB FOR TH109041 ) (SUB FOR 415 3098, OR 0818008THIS APPLICATION)

3шт.

48

0622824

Manifold

(SUB FOR AT202008)

1шт.

49

0622825

Cap

(SUB FOR AT202009)

2шт.

50

4088425

O-Ring

(SUB FOR AT202080)

2шт.

51

0223104

Back-Up Ring

(SUB FOR AT202010)

2шт.

52

0622827

Spring

(SUB FOR AT202011)

4шт.

53

0622828

Plug

(SUB FOR AT202012)

2шт.

54

0622829

Check Valve

(SUB FOR AT202013)

4шт.

55

0622830

Spring

(SUB FOR AT202014)

1шт.

56

0622831

Guide

(SUB FOR AT202015)

1шт.

57

0622832

Sleeve

(SUB FOR AT202016)

1шт.

58

985098

O-Ring

31.700 X 3.500 mm (SUB FOR TH102528)

2шт.

59

0622833

Spool

(SUB FOR AT202017)

1шт.

60

AT264347

O-Ring

(SUB FOR TH100136, 4506428)

2шт.

61

4044839

Back-Up Ring

(SUB FOR TH103457)

3шт.

62

0622834

Sleeve

(SUB FOR AT202018)

1шт.

63

966689

O-Ring

24.700 X 3.500 mm (SUB FOR TH108142)

2шт.

64

4113187

Back-Up Ring

25 X 31 X 1.250 mm (SUB FOR AT131692)

4шт.

65

0622835

Piston

(SUB FOR AT202019)

1шт.

66

T111819

O-Ring

14.800 X 2.400 mm

1шт.

67

4040814

Back-Up Ring

15 X 19 X 1.250 mm (SUB FOR TH105938)

1шт.

68

4442348

Poppet

(SUB FOR 0622836 OR AT202020 OR AT192513)

1шт.

69

0622837

Spring

(SUB FOR AT202021)

1шт.

70

0622838

Cap

(SUB FOR AT202022)

1шт.

71

4013283

Back-Up Ring

(SUB FOR AT200398)

1шт.

85

0622851

Plate

(SUB FOR AT202035)

2шт.

86

0622852

Spring

(SUB FOR AT202036)

2шт.

87

0622853

Check Valve

(SUB FOR AT202037)

2шт.

88

0622854

Seat

(SUB FOR AT202038)

2шт.

89

0818204

O-Ring

(SUB FOR AT202088 ) (SUB FOR 415 3110, OR 0818009THIS APPLICATION)

2шт.

90

4019414

Back-Up Ring

(SUB FOR AT202076)

2шт.

91

4442180

Check Valve

(SUB FOR AT192514)

1шт.
