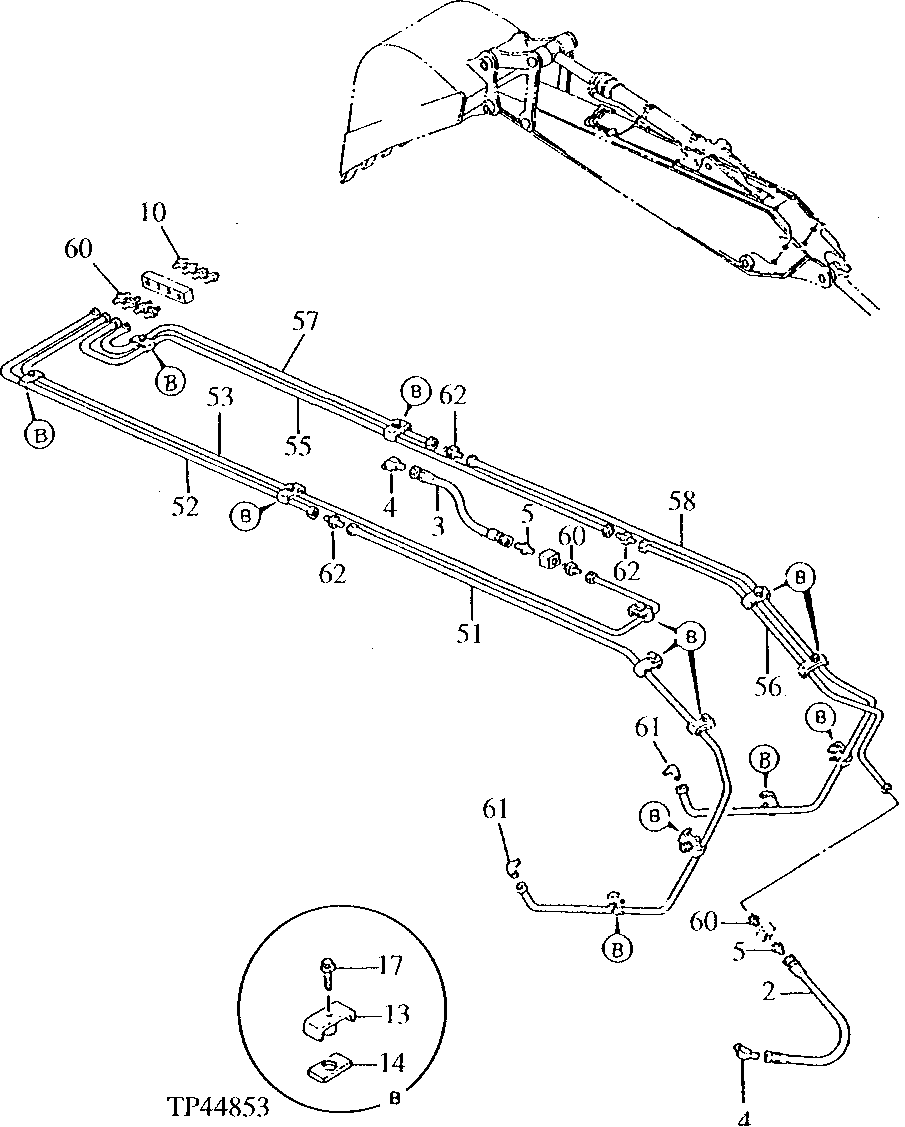

Запчасти John Deere 92ELC 268 - Lubricate Pipings - Standard Arm ( - 006003) 3360 HYDRAULIC SYSTEM

2

AT202092

Hydraulic Hose

1шт.

3

4098898

Hydraulic Hose

(SUB FOR AT130961)

1шт.

4

94-1501

Elbow Fitting

(SUB FOR AT121757)

2шт.

5

X4F3P4S

Adapter Fitting

(SUB FOR TH100362 OR 94-1301)

2шт.

10

JD7769

Lubrication Fitting

(SUB FOR TH100364)

4шт.

13

9736422

Clamp

(SUB FOR AT202175)

13шт.

14

AT318012

Isolator

(SUB FOR 4269657 ) (SUB FOR AT130970)

13шт.

17

19M7662

Cap Screw

M10 X 30

14шт.

12M7066

Lock Washer

10 mm

14шт.

51

3056983

Line

(SUB FOR AT130965)

1шт.

52

4279066

Tube

(SUB FOR AT130963)

1шт.

53

4269665

Tube

(SUB FOR AT130967)

1шт.

55

4269666

Tube

(SUB FOR AT130968)

1шт.

56

4124781

Hydraulic Hose

(SUB FOR AT130962)

1шт.

57

4279067

Tube

(SUB FOR AT130964)

1шт.

58

3056984

Line

(SUB FOR AT130966)

1шт.

60

4130169

Fitting

(SUB FOR TH101391)

6шт.

61

4130175

Fitting

(SUB FOR TH101392)

2шт.

62

Z32962

Fitting

3шт.
