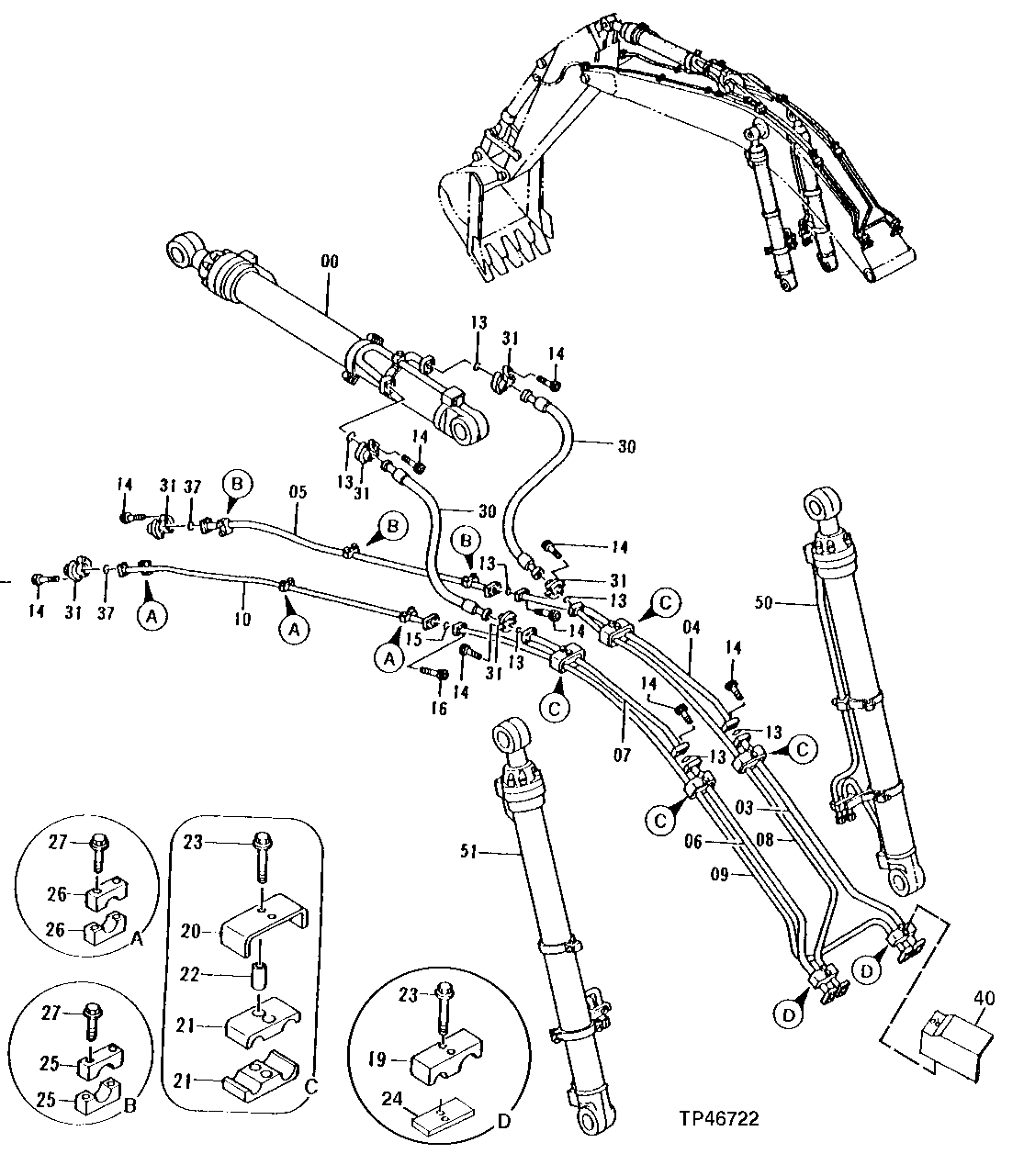

Запчасти John Deere 92ELC 263 - FRONT PIPINGS 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

(ARM) (SEE ARM CYLINDER PAGE FOR DETAIL)

1шт.

3

8055572

Oil Line

(SUB FOR AT201896)

1шт.

4

8055573

Oil Line

(SUB FOR AT201897)

1шт.

5

8055574J

Oil Line

(SUB FOR AT201898 OR 8055574)

1шт.

6

8055575

Oil Line

(SUB FOR AT201899)

1шт.

7

8055576

Oil Line

(SUB FOR AT201900)

1шт.

8

8055577

Oil Line

(SUB FOR AT201901)

1шт.

9

7026617

Oil Line

(SUB FOR AT201864)

1шт.

10

8055578J

Oil Line

(SUB FOR AT201902 OR 8055578)

1шт.

13

T72216

O-Ring

7шт.

14

19M8712

Screw

36шт.

15

T78313

O-Ring

1шт.

16

19M8395

Screw

4шт.

19

4249565

Clamp

(SUB FOR AT202109)

2шт.

20

4304481

Clamp

(SUB FOR AT201755)

4шт.

21

4304482

Clamp

(SUB FOR AT201756)

8шт.

22

28H2611

Spacer

8шт.

23

19M8122

Cap Screw

12шт.

12M7058

Lock Washer

(SUB FOR 12M7067)

12шт.

24

4346877

Strap

(SUB FOR AT172485)

2шт.

25

AT201796

Clamp

6шт.

26

4334363

Clamp

(SUB FOR AT201795)

6шт.

27

19M8122

Cap Screw

12шт.

12M7058

Lock Washer

(SUB FOR 12M7067)

12шт.

30

AT168741

Hydraulic Hose

2шт.

31

AT131685

Flange Fitting

12шт.

37

T72216

O-Ring

2шт.

40

3070800

Cover

(SUB FOR AT172486)

1шт.

50

Hydraulic Cylinder

(RIGHT BOOM) (SEE RIGHT BOO M CYLINDER PAGE FOR DETAILS)

1шт.

51

Hydraulic Cylinder

(LEFT BOOM) (SEE LEFT BOOM CYLINDER PAGE FOR DETAILS)

1шт.
