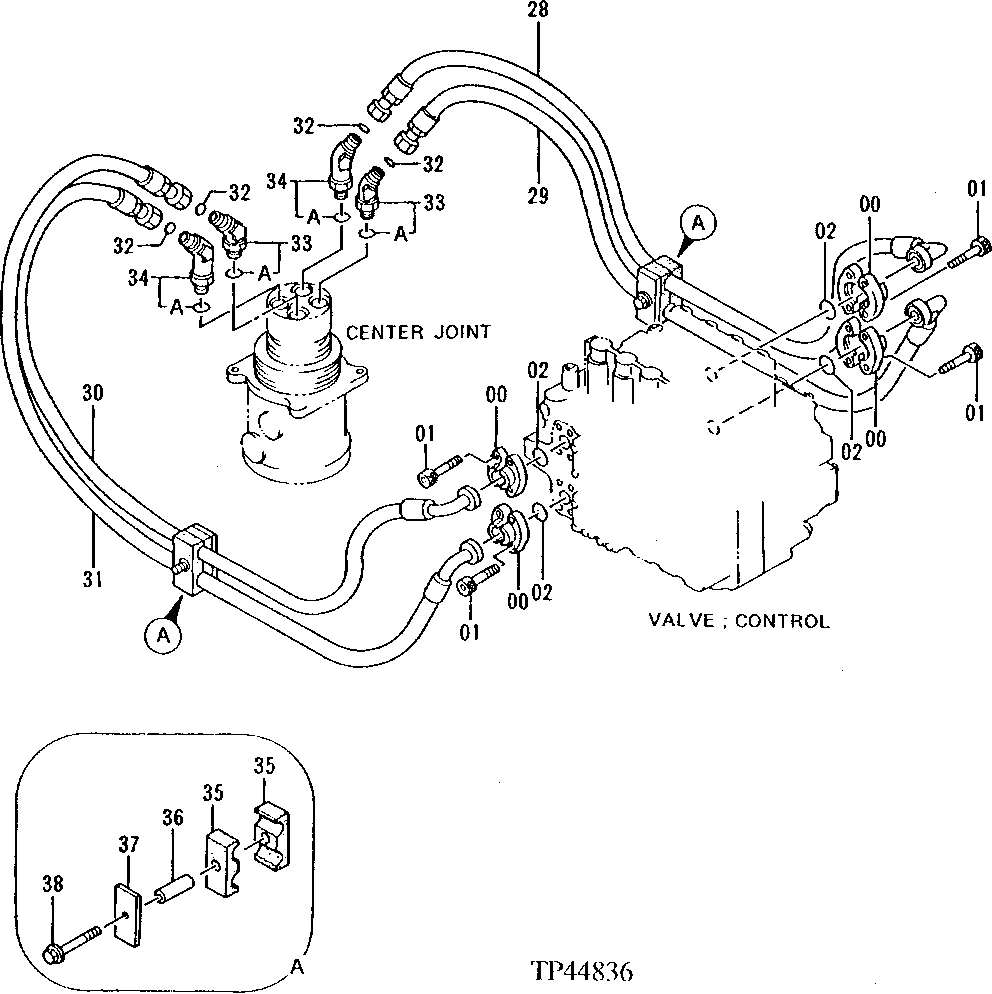

Запчасти John Deere 92ELC 262 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

AT131685

Flange Fitting

8шт.

1

19M8734

Screw

16шт.

2

T72216

O-Ring

4шт.

28

AT168739

Hydraulic Hose

1шт.

4371307

Hydraulic Hose

( AT178143 NO LONGER AVAILABLE)

1шт.

29

AT168744

Hydraulic Hose

1шт.

30

AT202132

Hydraulic Hose

1шт.

4371308

Hydraulic Hose

( AT178144 NO LONGER AVAILABLE)

1шт.

31

AT168743

Hydraulic Hose

1шт.

32

T76938

O-Ring

4шт.

33

4270315

Elbow Fitting

(SUB FOR AT201732)

2шт.

33A

TH101926

O-Ring

1шт.

34

4274593

Elbow Fitting

(SUB FOR AT201740)

2шт.

34A

TH101926

O-Ring

1шт.

35

4205615

Hose Clamp

(SUB FOR AT131792)

4шт.

36

4205614

Spacer

(SUB FOR AT131791)

2шт.

37

4711050

Plate

(SUB FOR AT131918, 4224002)

2шт.

38

19M8122

Cap Screw

2шт.

12M7058

Lock Washer

(SUB FOR 12M7067)

2шт.
