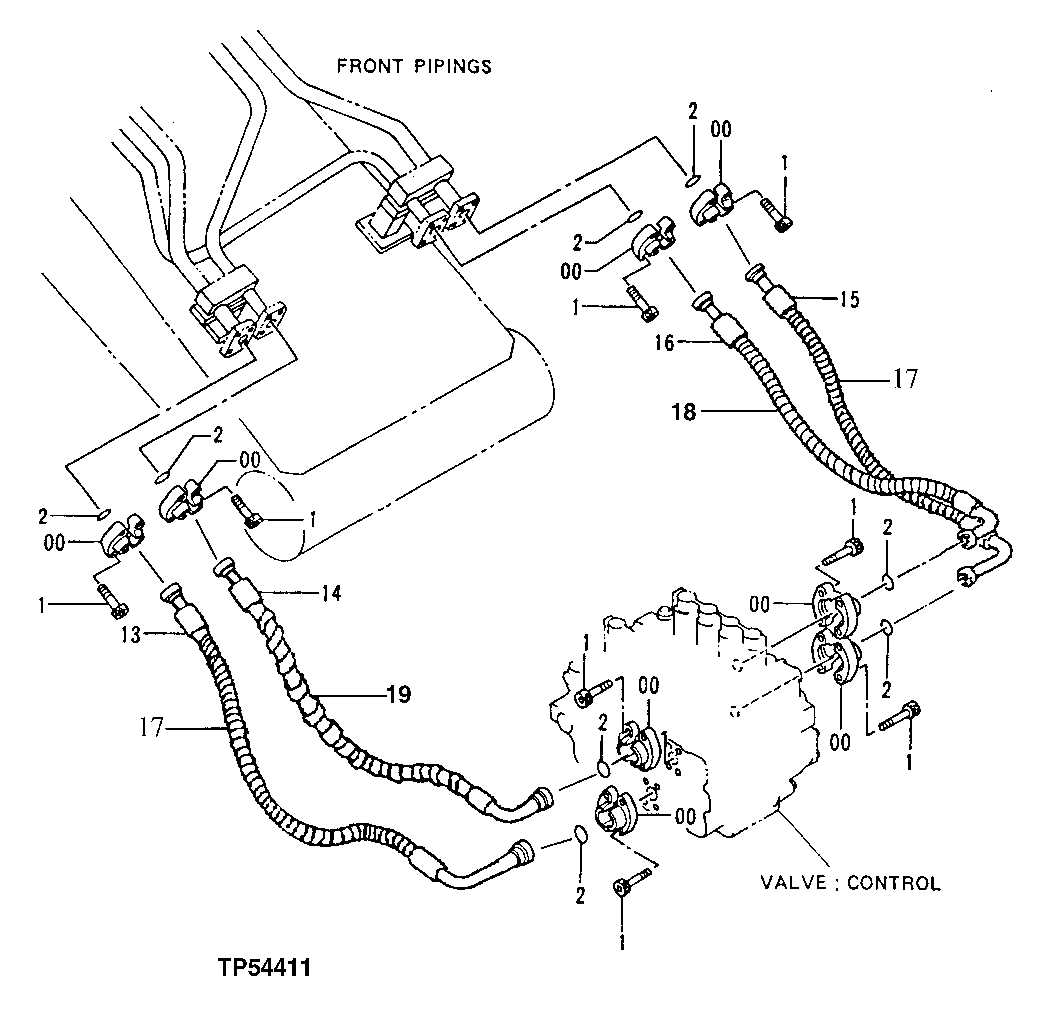

Запчасти John Deere 92ELC 260 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

AT131685

Flange Fitting

16шт.

1

19M8734

Screw

M14 X 45

32шт.

2

T72216

O-Ring

37.694 X 3.531 mm

8шт.

13

4345281

Hydraulic Hose

(SUB FOR AT202355)

1шт.

14

AT168738

Hydraulic Hose

1шт.

4369990

Hydraulic Hose

(SUB FOR AT178141)

1шт.

15

4345280

Hydraulic Hose

(SUB FOR AT202354)

1шт.

16

AT168742

Hydraulic Hose

1шт.

4369991

Hydraulic Hose

(SUB FOR AT178138)

1шт.

17

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.

18

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

19

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

4шт.
