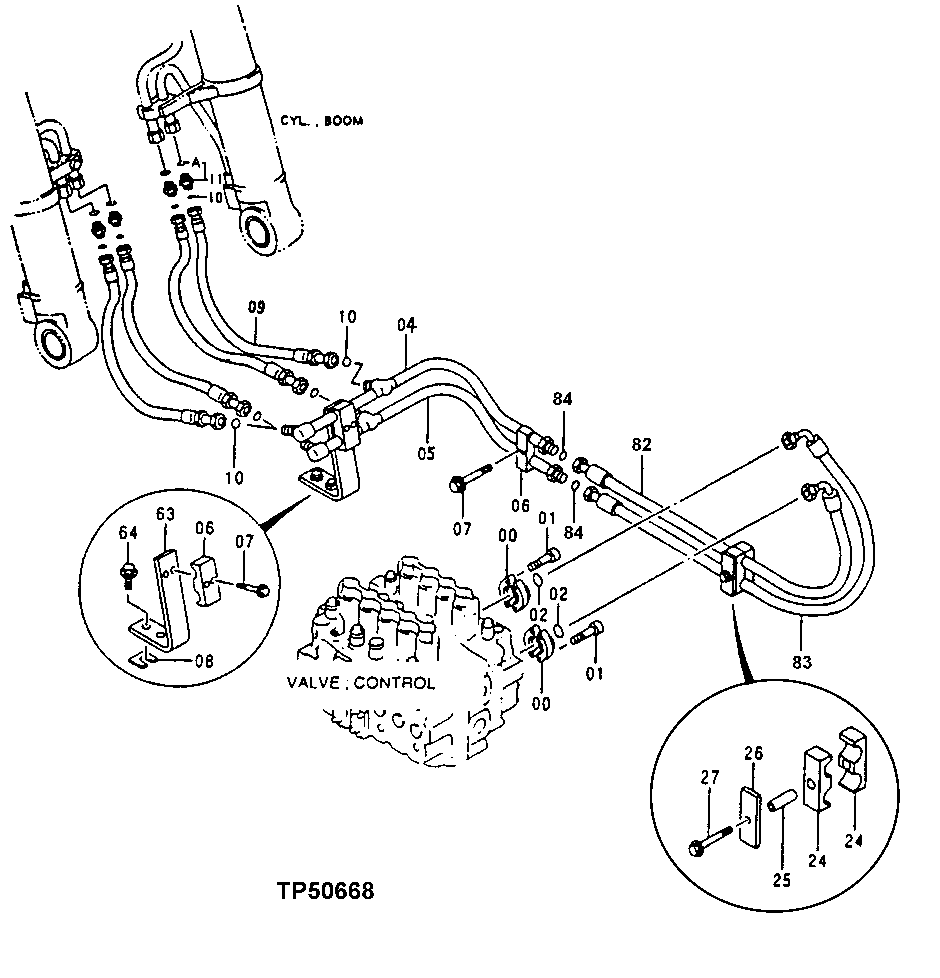

Запчасти John Deere 92ELC 259 - MAIN PIPINGS (007001 - ) 3360 HYDRAULIC SYSTEM

0

AT131685

Flange Fitting

4шт.

1

19M8734

Screw

M14 X 45

8шт.

2

T72216

O-Ring

37.694 X 3.531 mm

2шт.

4

8066122

Oil Line

(SUB FOR AT178137)

1шт.

5

8066121

Oil Line

(SUB FOR AT178136)

1шт.

6

4205816

Clamp

(SUB FOR AT131793)

2шт.

7

19M8088

Cap Screw

M12 X 75

4шт.

12H301

Lock Washer

1/2"

4шт.

8

4342680

Plate

(SUB FOR AT172743)

1шт.

9

AT168737

Hydraulic Hose

4шт.

10

T76938

O-Ring

23.520 X 1.780 mm

8шт.

11

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

11A

TH101926

O-Ring

28.700 X 3.500 mm

1шт.

24

4215878

Hose Clamp

(SUB FOR AT178139)

2шт.

25

4215879

Spacer

(SUB FOR AT178140)

1шт.

26

4215880

Plate

(SUB FOR AT178142)

1шт.

27

19M7943

Cap Screw

M12 X 90

1шт.

63

3038898

Bracket

(SUB FOR AT131632)

1шт.

64

19M7493

Cap Screw

M12 X 40

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

12H301

Lock Washer

1/2"

2шт.

82

4369871

Hydraulic Hose

(SUB FOR AT178145)

1шт.

83

4383790

Hydraulic Hose

(SUB FOR AT179131)

1шт.

84

T78612

O-Ring

2шт.
