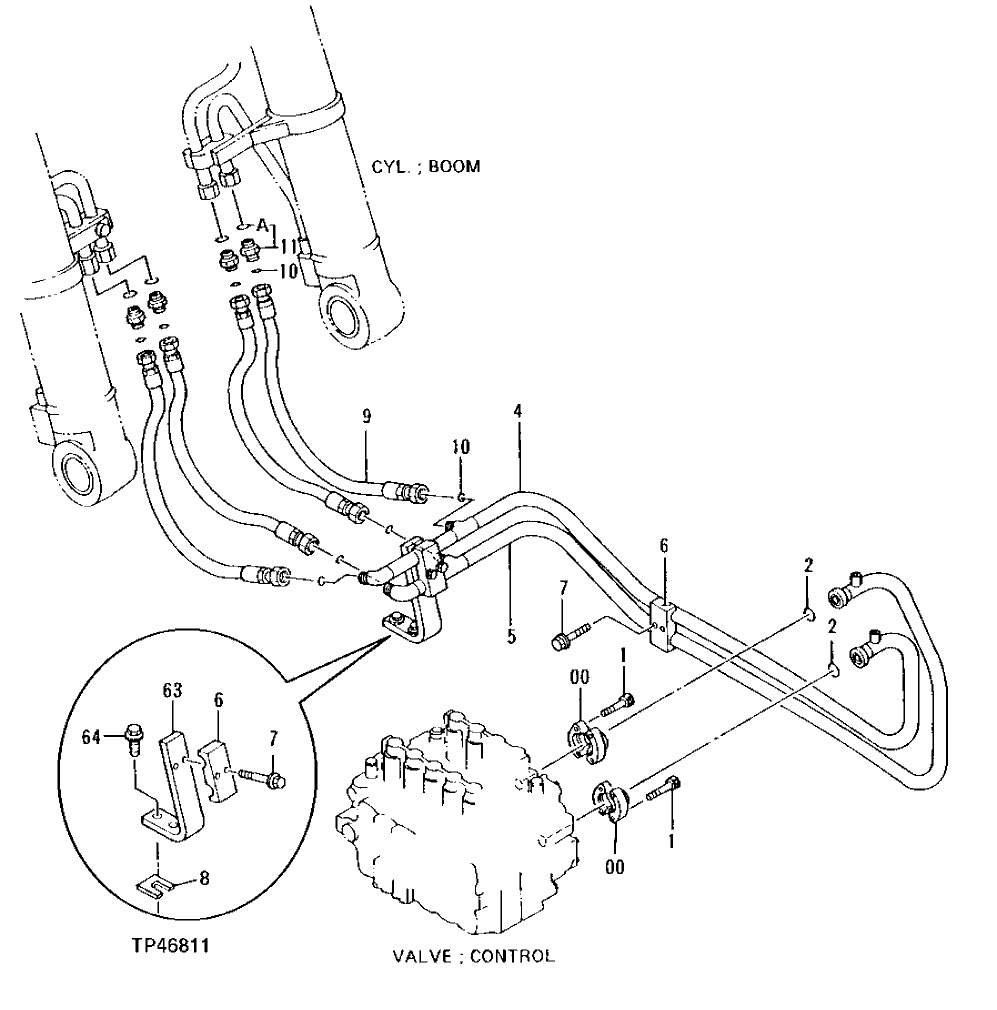

Запчасти John Deere 92ELC 258 - MAIN PIPINGS ( - 007000) 3360 HYDRAULIC SYSTEM

0

AT131685

Flange Fitting

4шт.

1

19M8734

Screw

M14 X 45

8шт.

2

T72216

O-Ring

37.694 X 3.531 mm

2шт.

4

7026596

Oil Line

(SUB FOR AT201862)

1шт.

5

7026597

Oil Line

(SUB FOR AT201863)

1шт.

6

4205816

Clamp

(SUB FOR AT131793)

2шт.

7

19M8088

Cap Screw

M12 X 75

4шт.

12H301

Lock Washer

1/2"

4шт.

8

4342680

Plate

(SUB FOR AT172743)

1шт.

9

AT168737

Hydraulic Hose

4шт.

10

T76938

O-Ring

23.520 X 1.780 mm

8шт.

11

4189535

Adapter Fitting

(SUB FOR AT114853)

4шт.

11A

TH101926

O-Ring

28.700 X 3.500 mm

1шт.

63

3038898

Bracket

(SUB FOR AT131632)

1шт.

64

19M7493

Cap Screw

M12 X 40

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

12H301

Lock Washer

1/2"

2шт.
