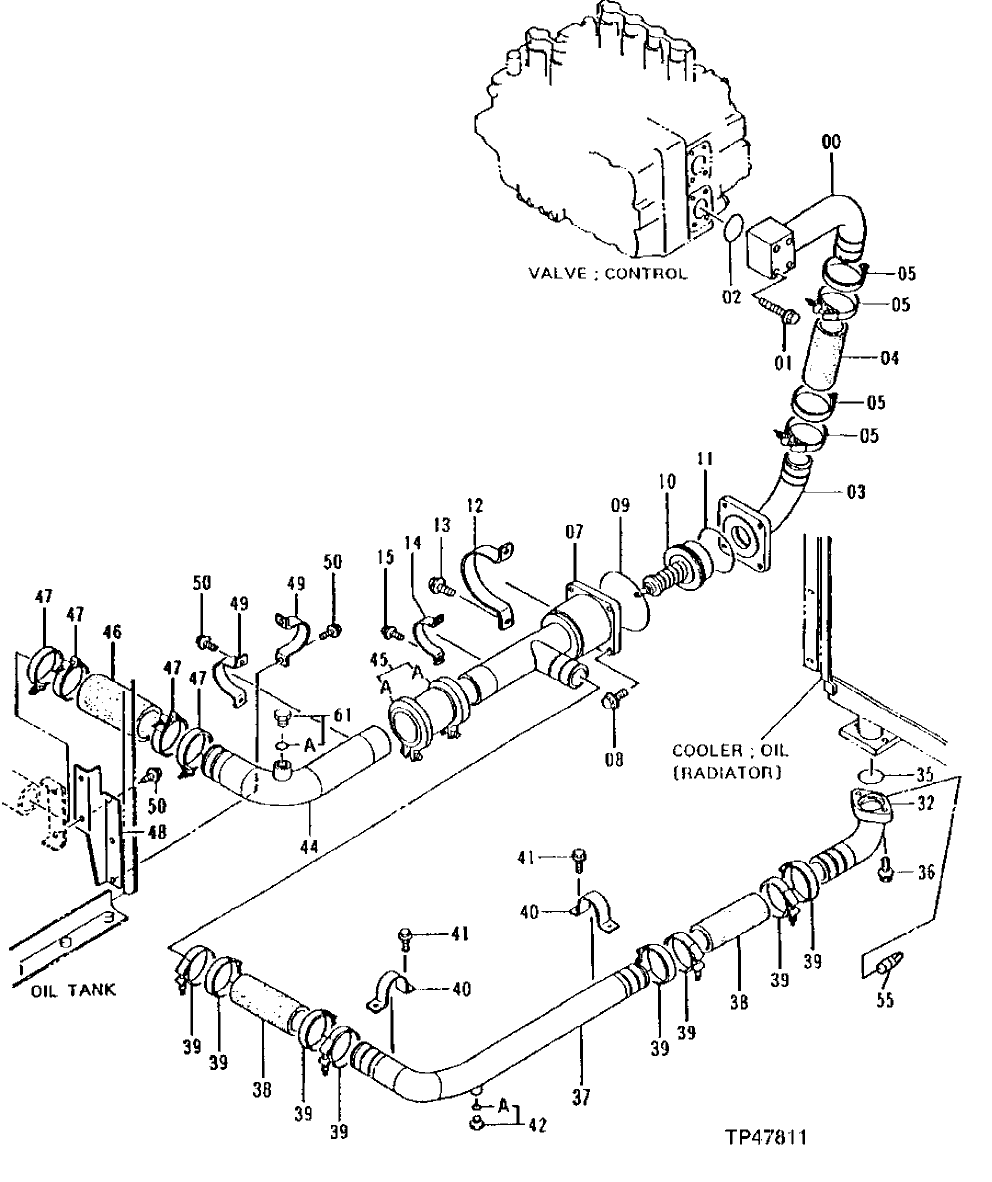

Запчасти John Deere 92ELC 251 - RETURN PIPINGS (006163 - 007000) 3360 HYDRAULIC SYSTEM

0

8056723

Tube

SUB FOR AT201906

1шт.

1

19M7949

Cap Screw

M12 X 100

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

2

TH105683

O-Ring

59.400 X 3.100 mm

1шт.

3

8056724

Pipe Elbow

SUB FOR AT201907

1шт.

4

4094001

Hose

SUB FOR TH103728

1шт.

5

AT39141

Hose Clamp

4шт.

7

7026569

Oil Line

SUB FOR AT201861

1шт.

8

19M7493

Cap Screw

M12 X 40

4шт.

12H301

Lock Washer

1/2"

4шт.

9

TH104589

O-Ring

144.400 X 3.100 mm

1шт.

10

4433091

Flow Control Hyd. Valve

SUB FOR AT202100

1шт.

11

AT264342

O-Ring

SUB FOR TH100125

1шт.

12

4246954

Clamp

SUB FOR AT202105

1шт.

13

19M7403

Cap Screw

M12 X 35

2шт.

12H301

Lock Washer

1/2"

2шт.

14

4000909

Clamp

SUB FOR TH101935

1шт.

15

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

32

8059327

Tube

SUB FOR AT201913

1шт.

35

TH105683

O-Ring

59.400 X 3.100 mm

1шт.

36

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

37

8059313

Oil Line

SUB FOR AT201912

1шт.

38

4094001

Hose

SUB FOR TH103728

2шт.

39

AT39141

Hose Clamp

8шт.

40

4053865

Clamp

SUB FOR TH103646

2шт.

41

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

42

AT318013

Drain Plug

SUB FOR 4093624, SUB FOR TH102536

1шт.

42A

M800650

Packing

1шт.

44

8051940

Tube

SUB FOR AT201890

1шт.

45

4071215

Coupling

SUB FOR FXV00000007 AND TH101898

1шт.

45A

Seal

SUB TO FXV00000007, 41 96267 AND TH106969 NLA

2шт.

46

4167091

Hose

SUB FOR TH101901

1шт.

47

AT50923

Hose Clamp

SUB FOR AT160583

4шт.

48

8050152

Bracket

SUB FOR AT201886

1шт.

49

4000909

Clamp

SUB FOR TH101935

2шт.

50

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

55

M800462

Plug

1шт.

61

4174542

Drain Plug

SUB FOR TH110478

1шт.

61A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.
