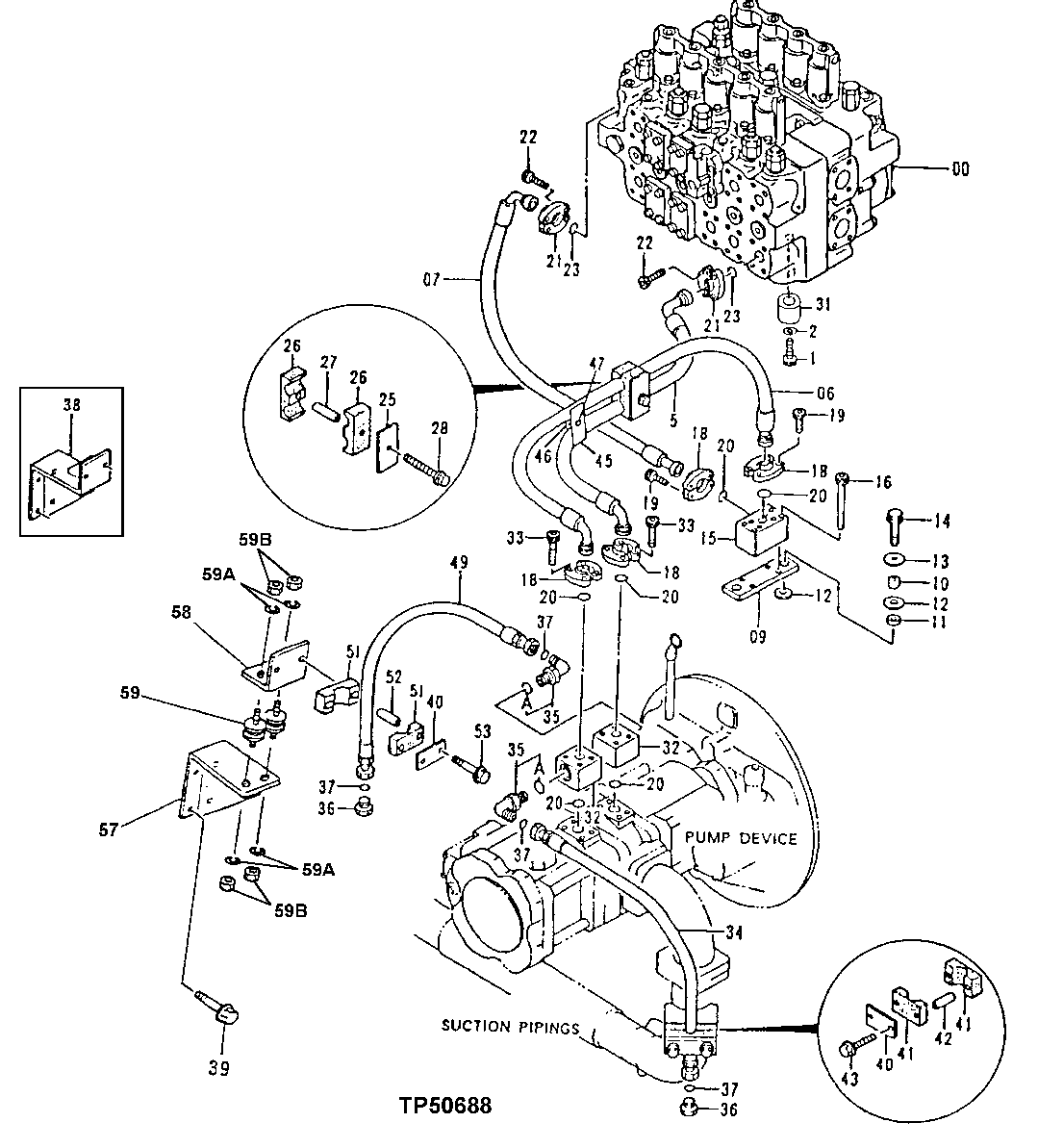

Запчасти John Deere 92ELC 249 - DELIVERY PIPINGS 3360 HYDRAULIC SYSTEM

0

4355305

Hyd Actuated Control Valve

SUB FOR AT201790, AT186752 AND 4355305EX

1шт.

1

19M7489

Cap Screw

4шт.

19M7597

Cap Screw

4шт.

2

12H294

Lock Washer

4шт.

N231749

Washer

4шт.

Washer

NO LONGER REQUIRED

4шт.

5

4342263

Hydraulic Hose

SUB FOR AT202233

1шт.

6

AT168735

Hydraulic Hose

1шт.

7

AT168747

Hydraulic Hose

1шт.

9

4307413

Bracket

SUB FOR AT201757

1шт.

10

4235677

Spacer

SUB FOR AT202099

2шт.

11

4247139

Bushing

SUB FOR AT202106

2шт.

12

4247140

Spacer

SUB FOR AT202107

4шт.

13

24H1900

Washer

2шт.

14

19M7363

Cap Screw

2шт.

12H301

Lock Washer

2шт.

15

3063293

Junction Block

SUB FOR AT201696

1шт.

16

19M8547

Screw

SUB FOR AT127258 OR M341290

4шт.

18

4085560

Flange Fitting

SUB FOR TH101960

8шт.

19

19M8395

Screw

8шт.

20

T78313

O-Ring

6шт.

21

AT131685

Flange Fitting

4шт.

22

19M8734

Screw

8шт.

23

T72216

O-Ring

2шт.

25

4711050

Plate

SUB FOR AT131918

1шт.

26

4205615

Hose Clamp

SUB FOR AT131792

2шт.

27

4205614

Spacer

SUB FOR AT131791

1шт.

28

19M7943

Cap Screw

1шт.

12H301

Lock Washer

1шт.

31

4354513

Spacer

SUB FOR AT172243

4шт.

32

Junction Block

AT201708 NLA, SUB AT178130

2шт.

2040045

Junction Block

SUB FOR AT178130

2шт.

33

M341211

Bolt

SUB FOR AT202274

8шт.

34

4286812

Hydraulic Hose

SUB FOR AT202308

1шт.

35

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

2шт.

35A

TH101926

O-Ring

1шт.

36

4210056

Plug

SUB FOR AT202300

2шт.

37

T76938

O-Ring

4шт.

38

Bracket

AT201925 NLA, SUB AT181744, AT217041, AT216977, (2) 12M7066 AND (2) 14M7274

1шт.

39

19M7872

Cap Screw

4шт.

12H301

Lock Washer

4шт.

40

4341803

Plate

SUB FOR AT201827

2шт.

41

4341808

Hose Clamp

SUB FOR AT201828

2шт.

42

4205614

Spacer

SUB FOR AT131791

2шт.

43

19M8122

Cap Screw

2шт.

12M7058

Lock Washer

SUB FOR 12M7067

2шт.

45

9744089

Clamp

SUB FOR AT202385

1шт.

46

4202103

Clamp

SUB FOR TH108302

1шт.

47

19M8348

Cap Screw

1шт.

12H301

Lock Washer

1шт.

49

AT170491

Hydraulic Hose

1шт.

51

4349621

Hose Clamp

SUB FOR AT170625

2шт.

52

4215879

Spacer

SUB FOR AT170626 AND 4349648

2шт.

53

19M7949

Cap Screw

2шт.

12M7058

Lock Washer

SUB FOR 12M7067

2шт.

57

8069739

Bracket

SUB FOR AT181744 Lower

1шт.

58

9747606

Bracket

SUB FOR AT217041 Upper

1шт.

59

4354592

Isolator

SUB FOR AT216977

2шт.

59A

12M7066

Lock Washer

2шт.

59B

14M7274

Nut

2шт.
