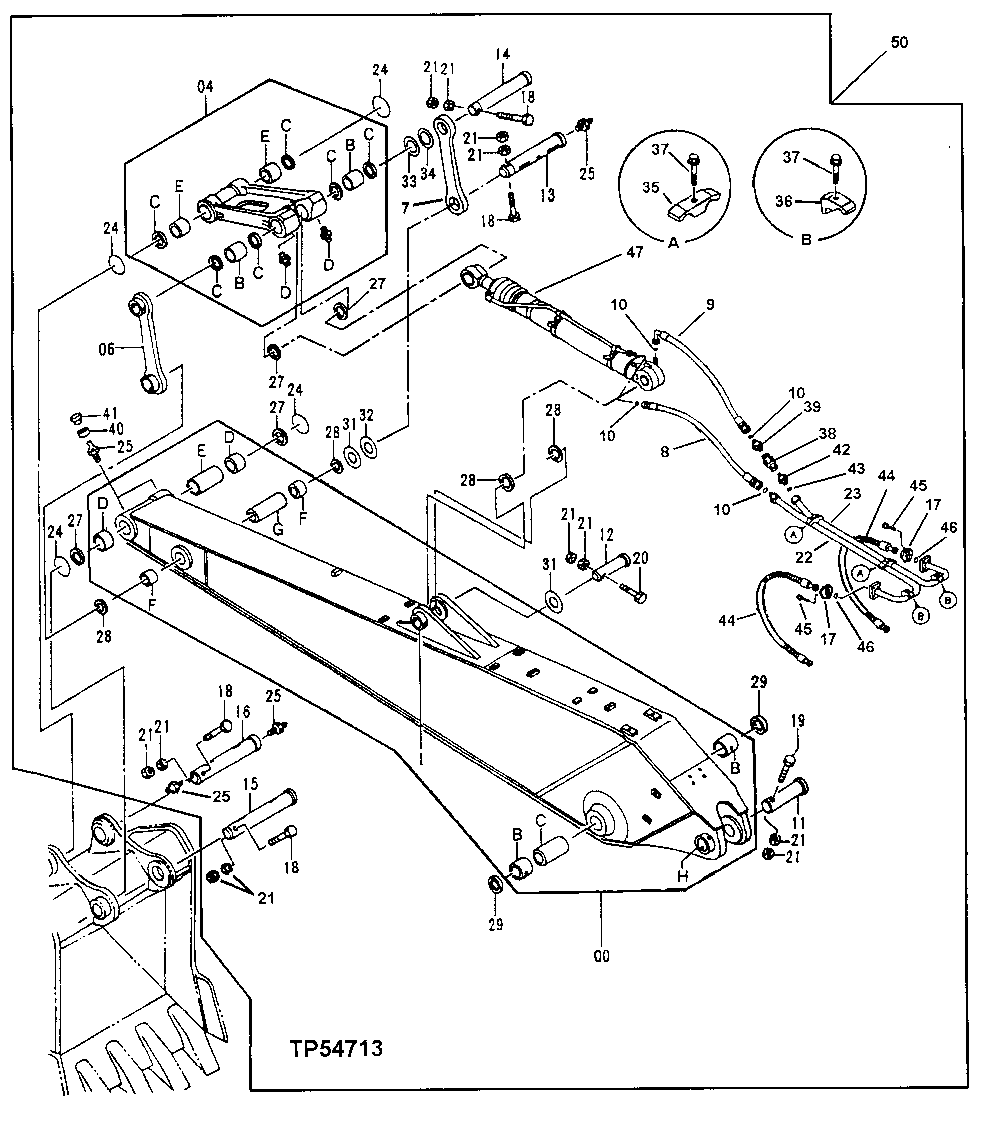

Запчасти John Deere 92ELC 248 - LONG ARM (4 9 M - 16 FT 1 IN ) 3340 BACKHOE AND EXCAVATOR FRAMES

0

9138843

Arm

(SUB FOR AT166827 ) (SUB FOR AT2171 70)WHOLEGOODS (CONVENIENCE ASSEMBLY)

1шт.

0B

3055205

Bushing

(SUB FOR AT201685)

2шт.

0C

4334122

Spacer

(SUB FOR AT202332)

1шт.

0D

AT200986

Bushing

(USE WITH AT166827 ARM ASSEMBLY WI THOUT LUBRICATION FITTINGS IN END)

2шт.

AT217079

Bushing

(USE WITH AT217170 ARM ASSEMBLY)

2шт.

0E

4313282

Spacer

(SUB FOR AT201049)

1шт.

0F

TH103216

Bushing

2шт.

0G

4143371

Spacer

(SUB FOR TH103217)

1шт.

0H

4662435

Stop

(SUB FOR AT131769 OR 4205110)

1шт.

0I

TH102409

Bushing

92.075 X 120.650 X 50.800 mm

1шт.

4

8050126

Link

(SUB FOR AT201129)

1шт.

4B

TH111170

Bushing

2шт.

4C

TH102411

Seal

6шт.

4D

TH100074

Lubrication Fitting

2шт.

4E

AT200987

Bushing

2шт.

6

8050397

Link

(SUB FOR AT201130)

1шт.

7

3055521J

Link

(SUB FOR AT200979 OR 3055521)

1шт.

8

4345675

Hydraulic Hose

(SUB FOR AT172092)

1шт.

9

4334631

Hydraulic Hose

(SUB FOR AT172093) Fabricate

1шт.

10

T76938

O-Ring

23.520 X 1.780 mm

4шт.

11

AT128428

Pin Fastener

1шт.

12

TH103204

Pin

1шт.

13

TH111181

Pin Fastener

1шт.

14

TH111182

Pin Fastener

100 X 546 mm

1шт.

15

AT164648

Pin Fastener

(SUB FOR TH112087)

1шт.

16

TH112086

Pin Fastener

1шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

4шт.

18

4382449

Bolt

(SUB FOR AT217135)

4шт.

19

19M8100

Cap Screw

M20 X 180

4шт.

20

19M8503

Cap Screw

M20 X 160

2шт.

21

14M7277

Nut

M20

12шт.

22

8061758

Line

(SUB FOR AT172090)

1шт.

23

8061759

Line

(SUB FOR AT172091)

1шт.

24

4100180

O-Ring

(STANDARD O-RING)

4шт.

AT349467

Seal

(SPLIT O-RING) Fabricate

4шт.

25

TH100074

Lubrication Fitting

5шт.

27

TH102411

Seal

4шт.

28

TH102445

Seal

4шт.

29

4251752

Seal

(SUB FOR AT202304)

2шт.

31

TH106307

Washer

4шт.

32

TH106308

Washer

1шт.

33

4189839

Washer

101 X 165 X 1.200 mm (SUB FOR TH106305)

2шт.

34

4189838

Washer

101 X 165 X 2.300 mm (SUB FOR TH106306)

1шт.

35

4189860

Clamp

(SUB FOR TH108314)

2шт.

36

4190127

Clamp

(SUB FOR TH108313)

2шт.

37

19M8348

Cap Screw

M12 X 65

4шт.

38

4041432

Flow Control Hyd. Valve

(SUB FOR AT172094)

1шт.

39

4208659

Adapter Fitting

(SUB FOR AT172095)

1шт.

40

4130686

Bushing

(SUB FOR AT217082)

2шт.

41

4105912

Cap

(SUB FOR AT217081)

2шт.

42

4208097

Adapter Fitting

(SUB FOR AT172096)

1шт.

43

T78612

O-Ring

1шт.

44

AT172097

Hydraulic Hose

2шт.

45

19M8395

Screw

M12 X 40

8шт.

46

T78313

O-Ring

32.920 X 3.530 mm

2шт.

47

Hydraulic Cylinder

(BUCKET CYLINDER) (SEE BUCK ET CYLINDER PAGE FOR DETAIL)

1шт.

50

AT175819

Arm

WHOLEGOODS (INCLUDES ARM, BUCK ET CYLINDER, HOSES AND LINKAGE)

1шт.

90

AT349467

Seal

(SUB FOR T238397)(NOT ILLUSTRATED)

1шт.

19M9304

Cap Screw

M5 X 90 (NOT ILLUSTRATED)

1шт.

14M7572

Lock Nut

M5 (NOT ILLUSTRATED)

1шт.

24M7027

Washer

5.300 X 10 X 1 mm (NOT ILLUSTRATED)

1шт.
